370Z Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt Control System
>>
System Description
>>
Seat Belt Warning System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

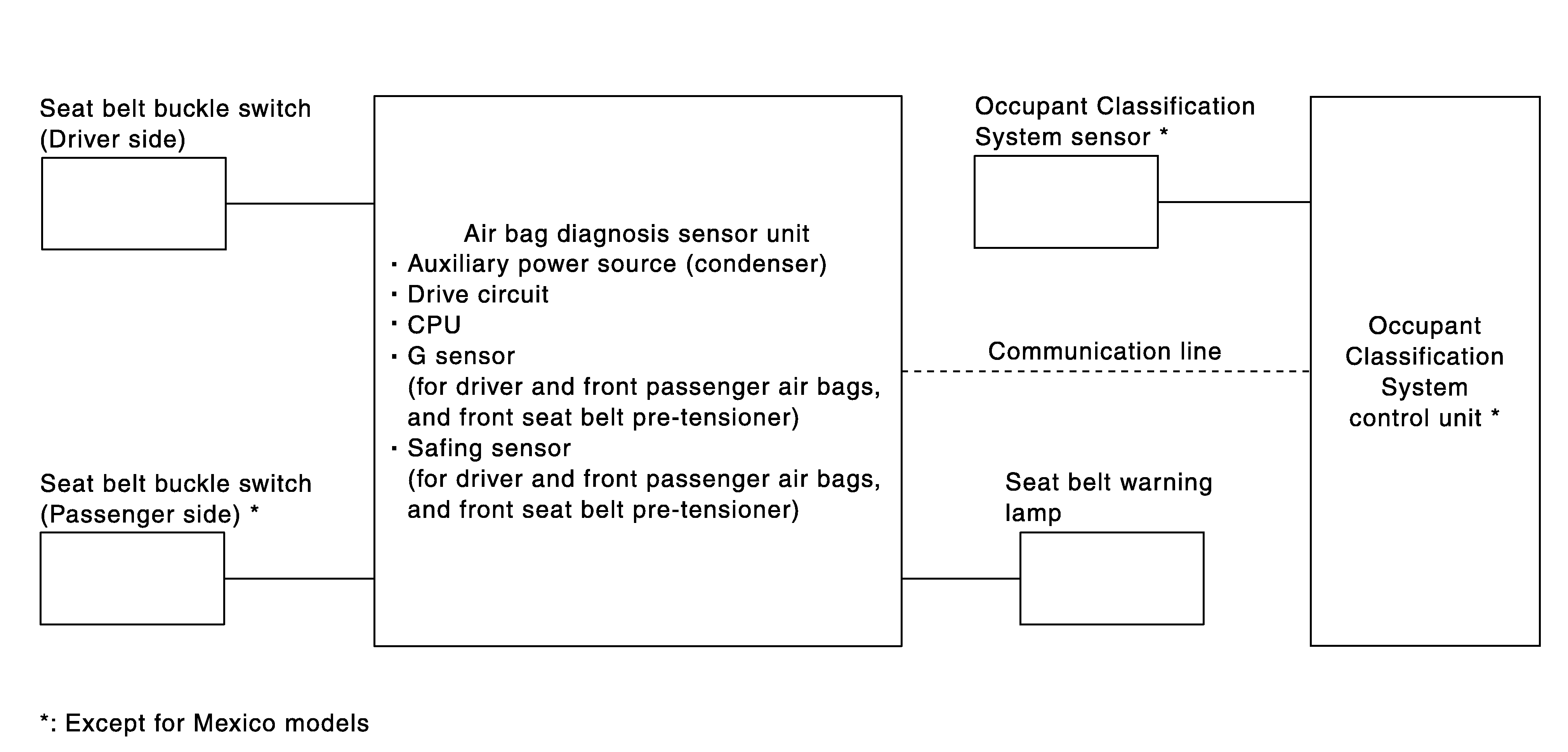

Fig 1: Identifying Seat Belt Warning System Block Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
