Connector Terminal Identification

WARNING: This page is about a different variant/trim than selected.

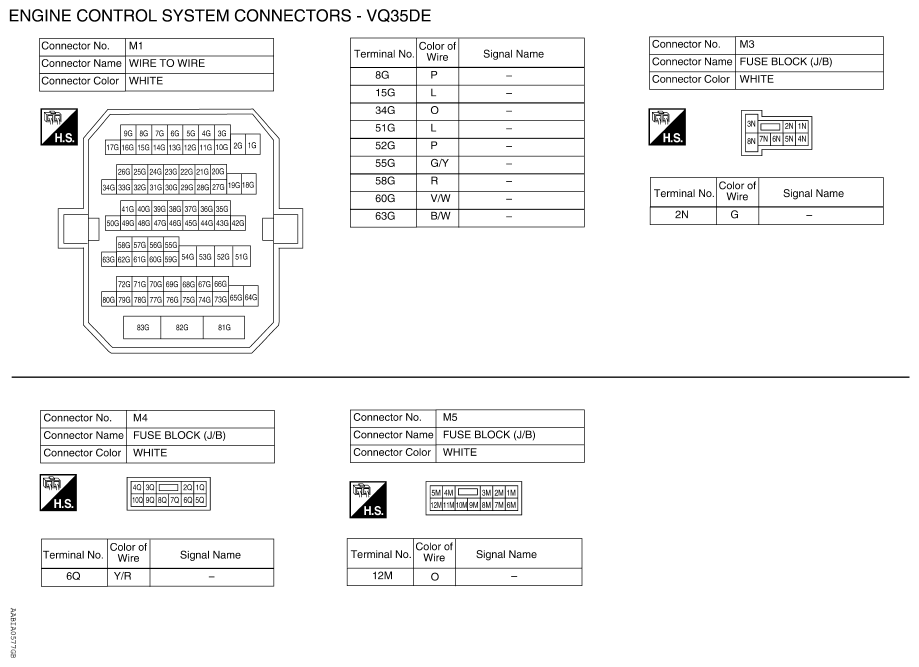

Fig 1: Engine Control System Connectors Chart (1 Of 20)
G08433740Courtesy of NISSAN NORTH AMERICA, INC.

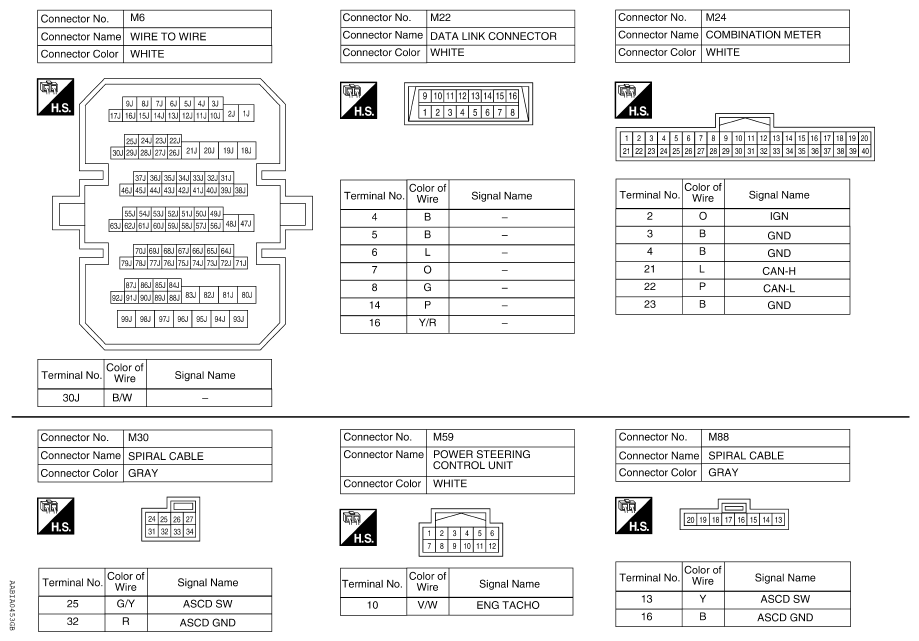

Fig 2: Engine Control System Connectors Chart (2 Of 20)
G08433741Courtesy of NISSAN NORTH AMERICA, INC.

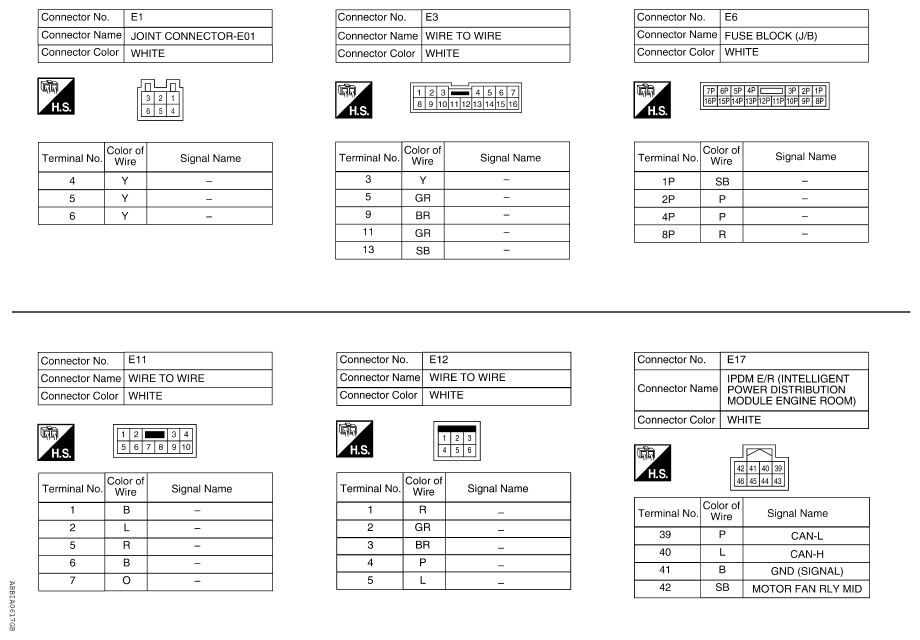

Fig 3: Engine Control System Connectors Chart (3 Of 20)
G08433742Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Engine Control System Connectors Chart (4 Of 20)
G08433743Courtesy of NISSAN NORTH AMERICA, INC.

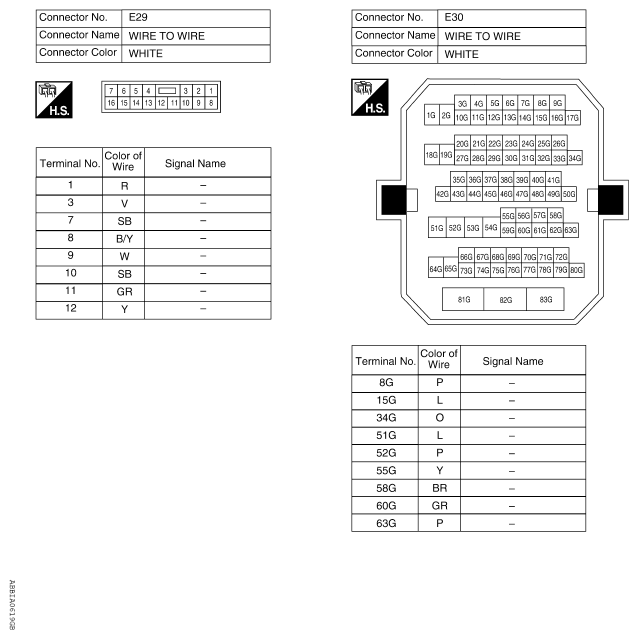

Fig 5: Engine Control System Connectors Chart (5 Of 20)
G08433744Courtesy of NISSAN NORTH AMERICA, INC.

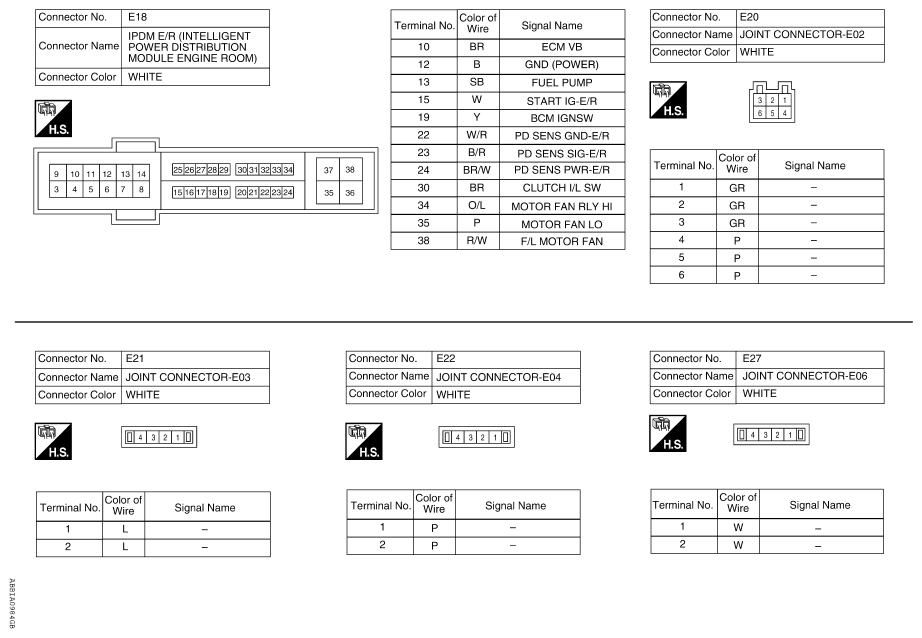

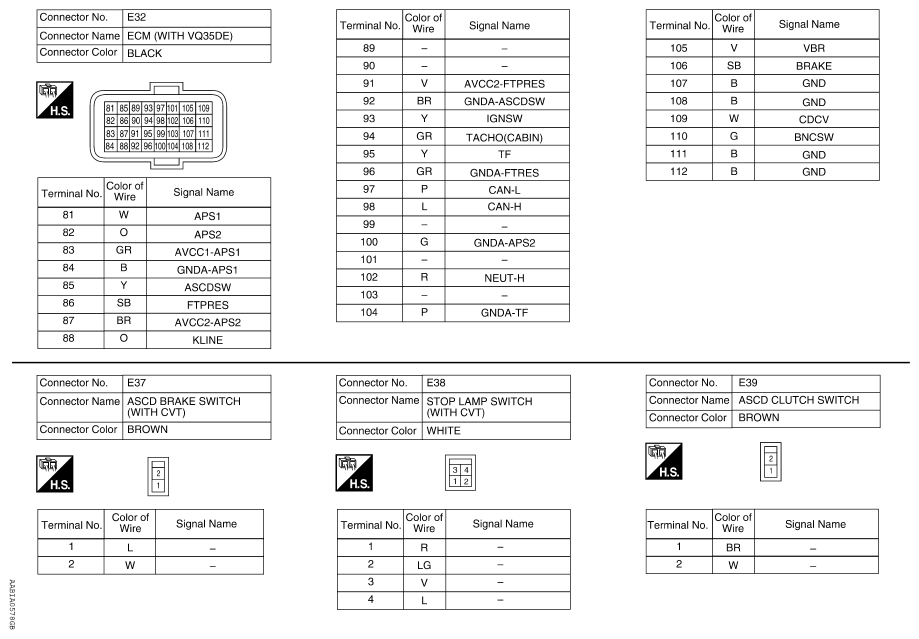

Fig 6: Engine Control System Connectors Chart (6 Of 20)
G08433745Courtesy of NISSAN NORTH AMERICA, INC.

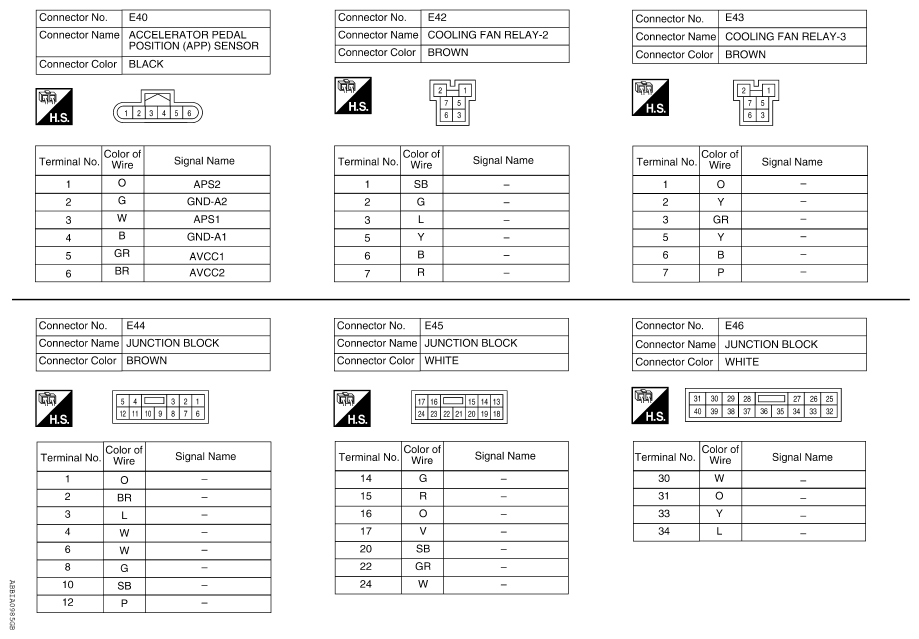

Fig 7: Engine Control System Connectors Chart (7 Of 20)
G08433746Courtesy of NISSAN NORTH AMERICA, INC.

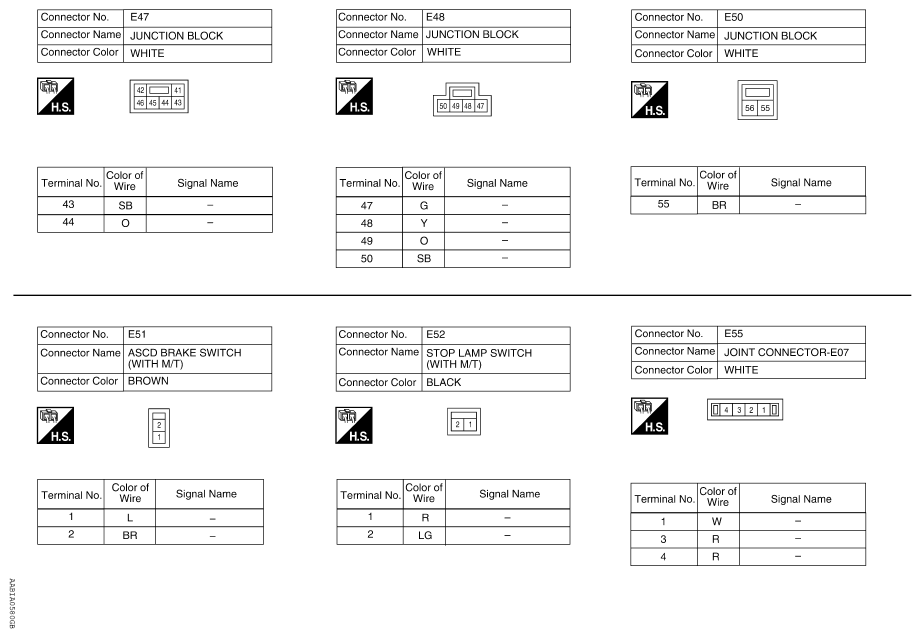

Fig 8: Engine Control System Connectors Chart (8 Of 20)
G08433747Courtesy of NISSAN NORTH AMERICA, INC.

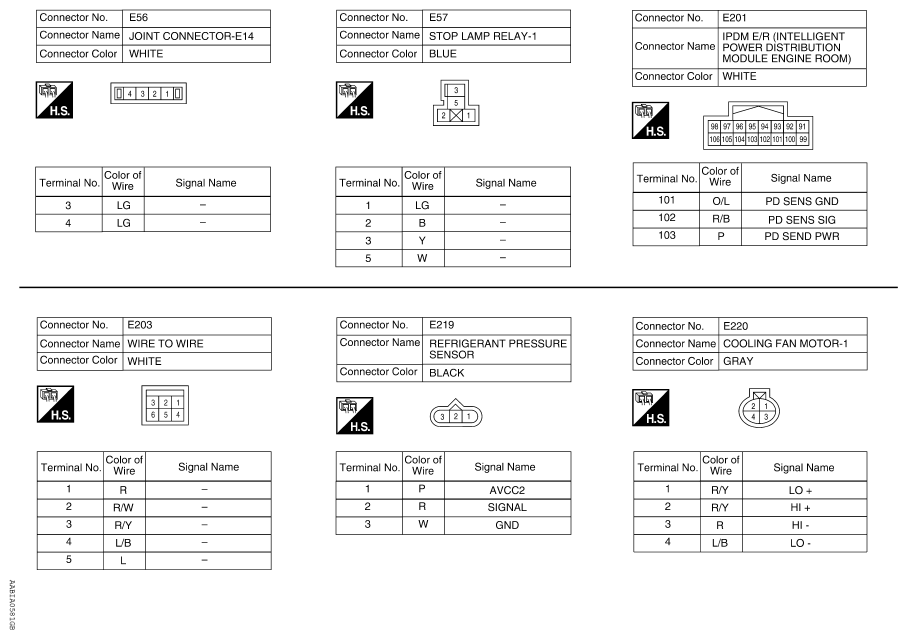

Fig 9: Engine Control System Connectors Chart (9 Of 20)
G08433748Courtesy of NISSAN NORTH AMERICA, INC.

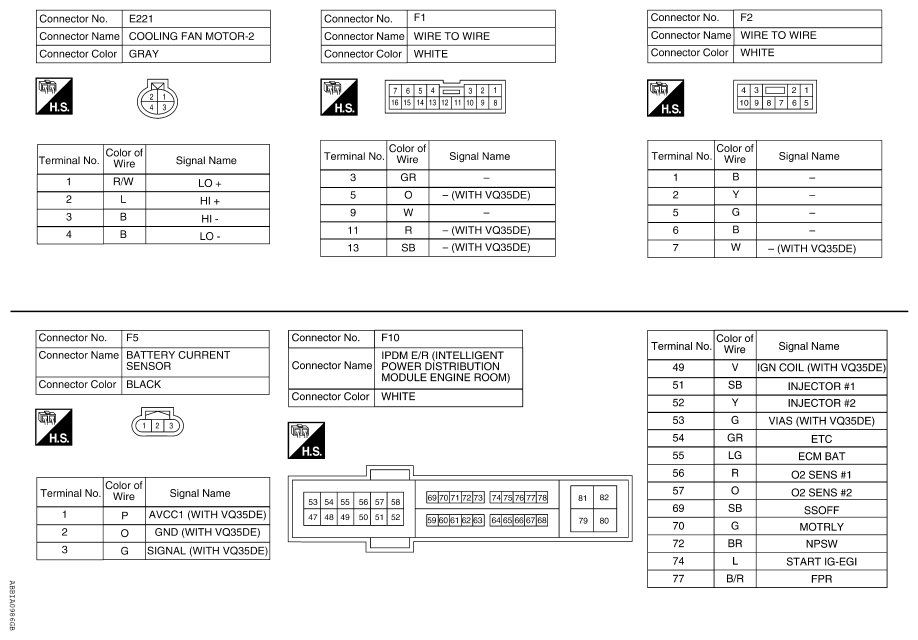

Fig 10: Engine Control System Connectors Chart (10 Of 20)
G08433749Courtesy of NISSAN NORTH AMERICA, INC.

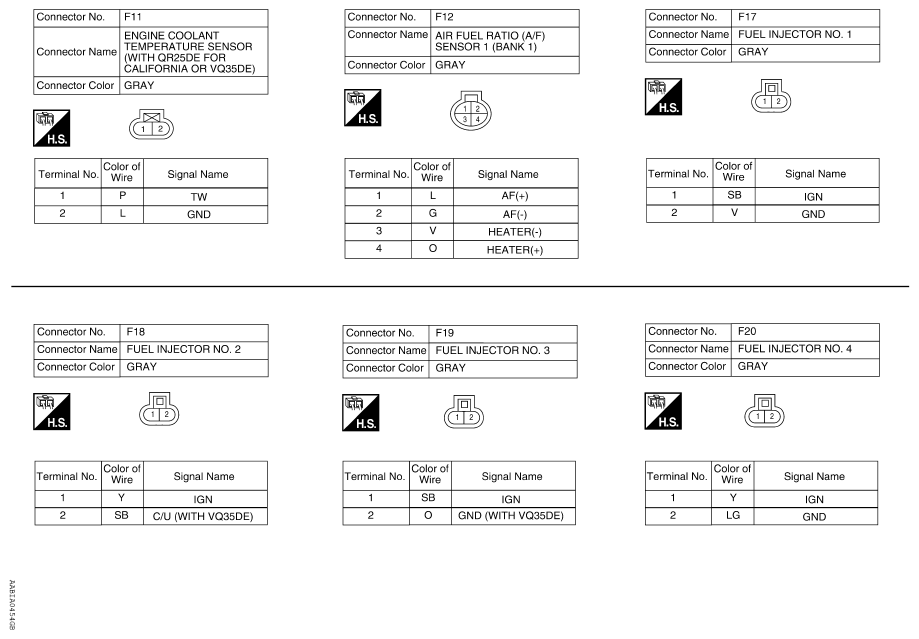

Fig 11: Engine Control System Connectors Chart (11 Of 20)
G08433750Courtesy of NISSAN NORTH AMERICA, INC.

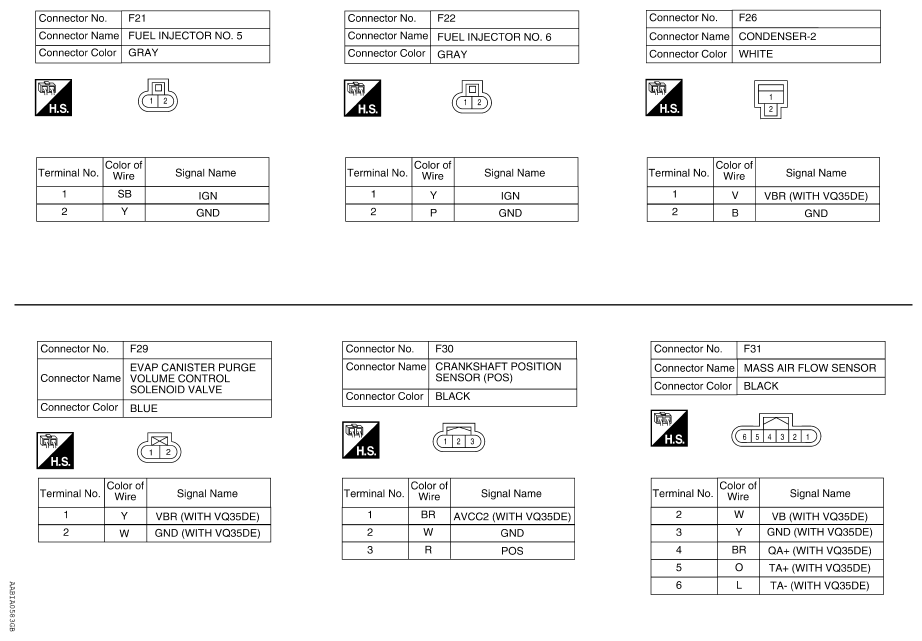

Fig 12: Engine Control System Connectors Chart (12 Of 20)
G08433751Courtesy of NISSAN NORTH AMERICA, INC.

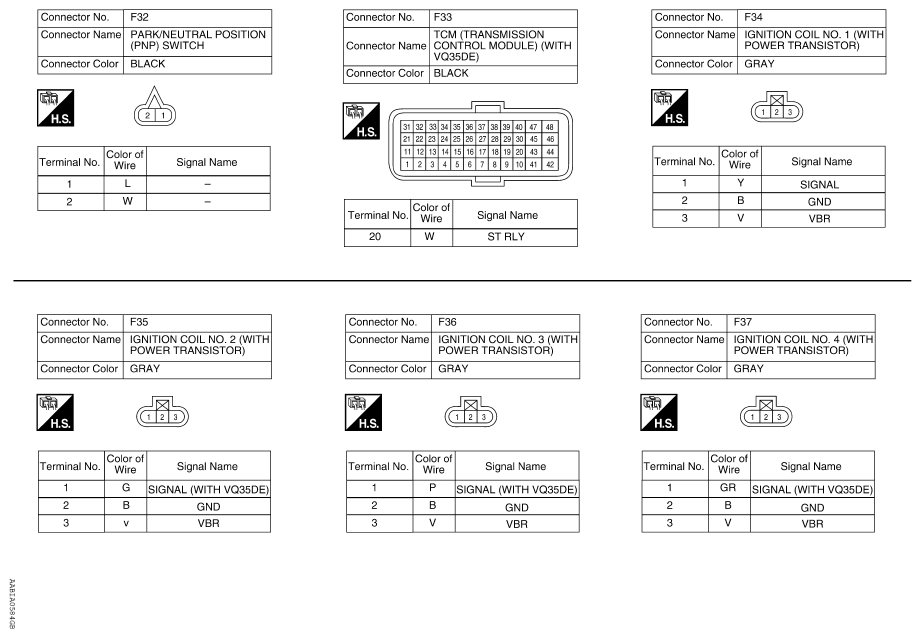

Fig 13: Engine Control System Connectors Chart (13 Of 20)
G08433752Courtesy of NISSAN NORTH AMERICA, INC.

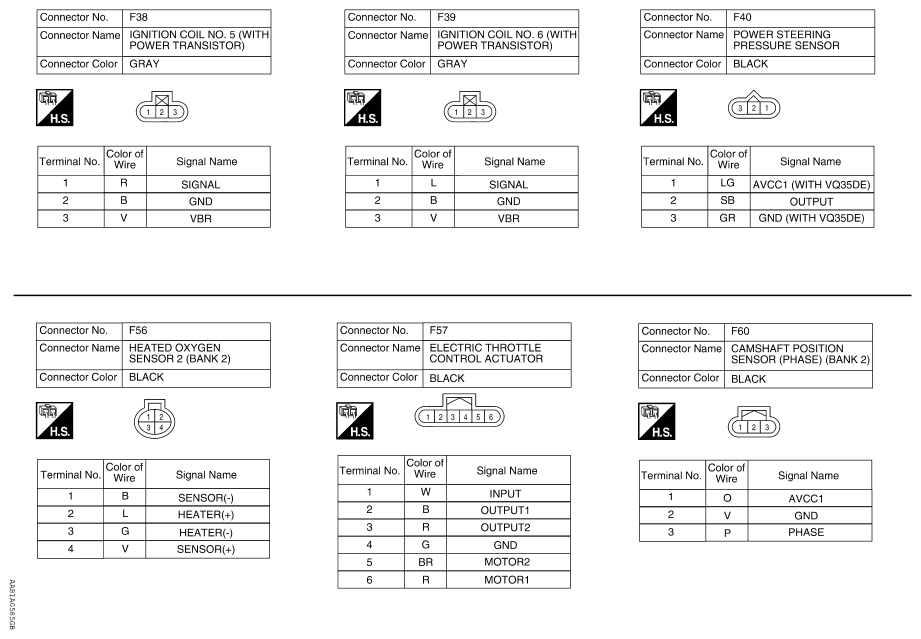

Fig 14: Engine Control System Connectors Chart (14 Of 20)
G08433753Courtesy of NISSAN NORTH AMERICA, INC.

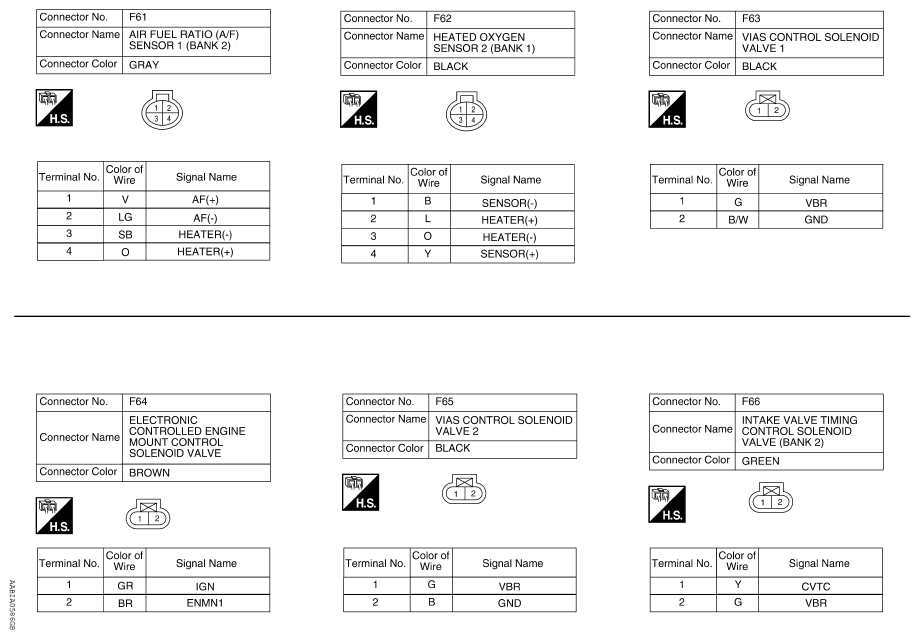

Fig 15: Engine Control System Connectors Chart (15 Of 20)
G08433754Courtesy of NISSAN NORTH AMERICA, INC.

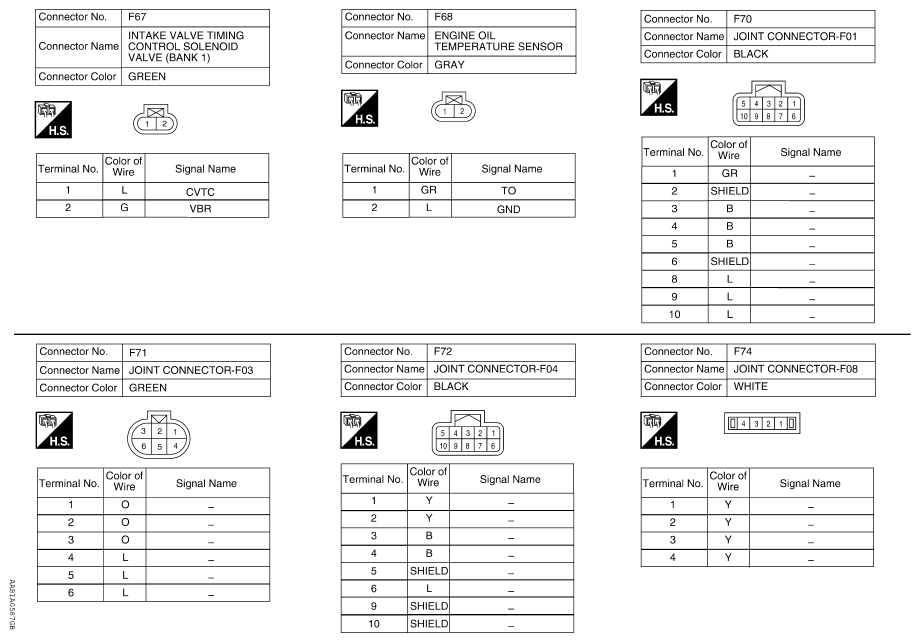

Fig 16: Engine Control System Connectors Chart (16 Of 20)
G08433755Courtesy of NISSAN NORTH AMERICA, INC.

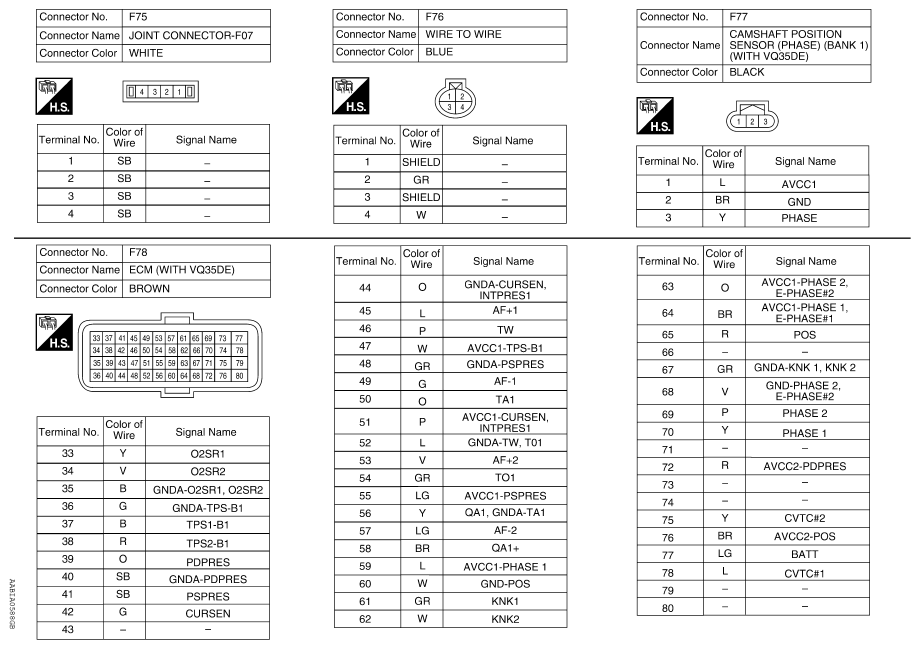

Fig 17: Engine Control System Connectors Chart (17 Of 20)
G08433756Courtesy of NISSAN NORTH AMERICA, INC.

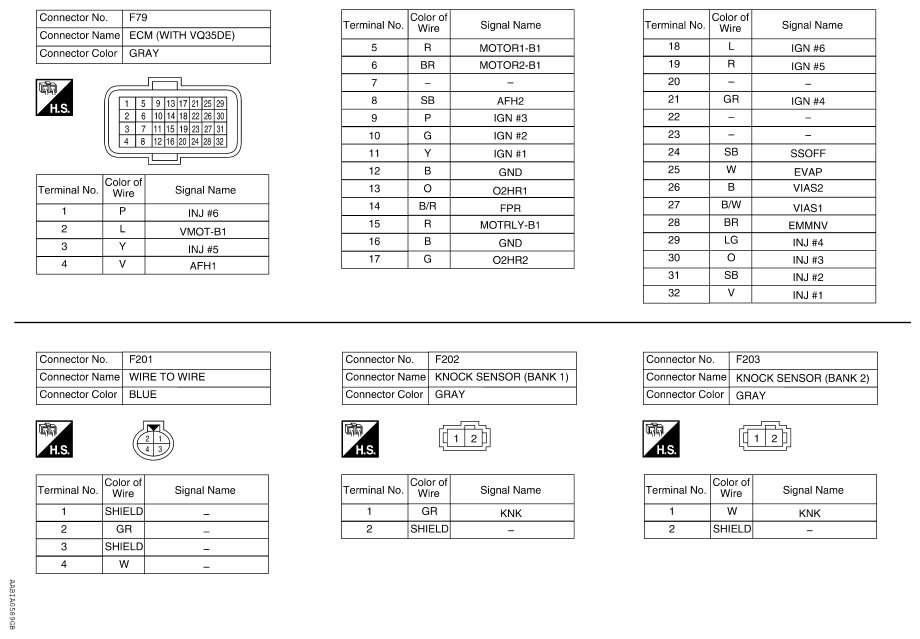

Fig 18: Engine Control System Connectors Chart (18 Of 20)
G08433757Courtesy of NISSAN NORTH AMERICA, INC.

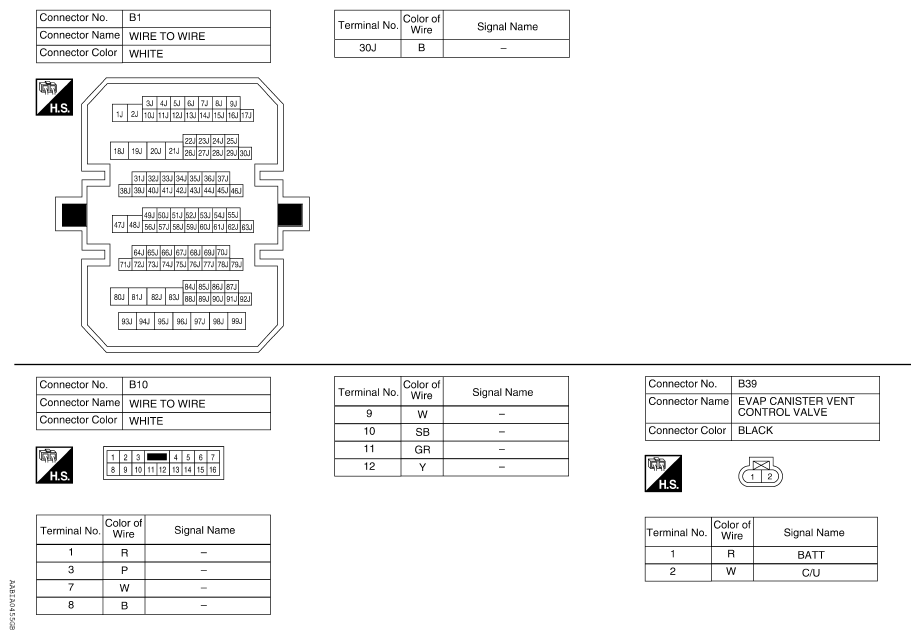

Fig 19: Engine Control System Connectors Chart (19 Of 20)
G08433758Courtesy of NISSAN NORTH AMERICA, INC.

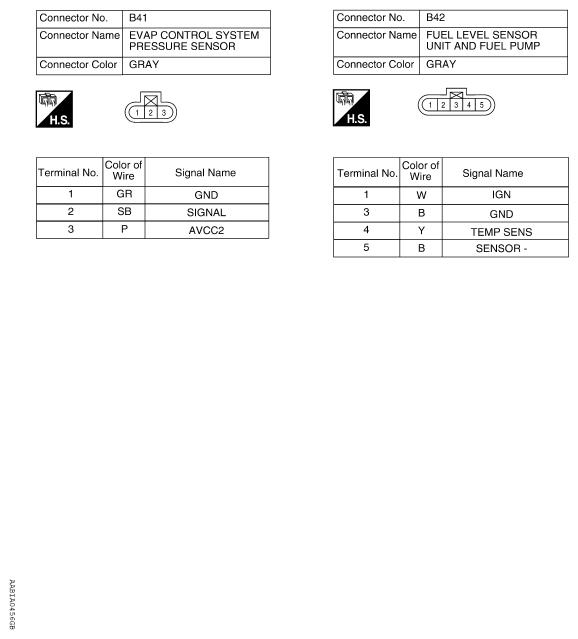

Fig 20: Engine Control System Connectors Chart (20 Of 20)
G08433759Courtesy of NISSAN NORTH AMERICA, INC.
