Exploded View

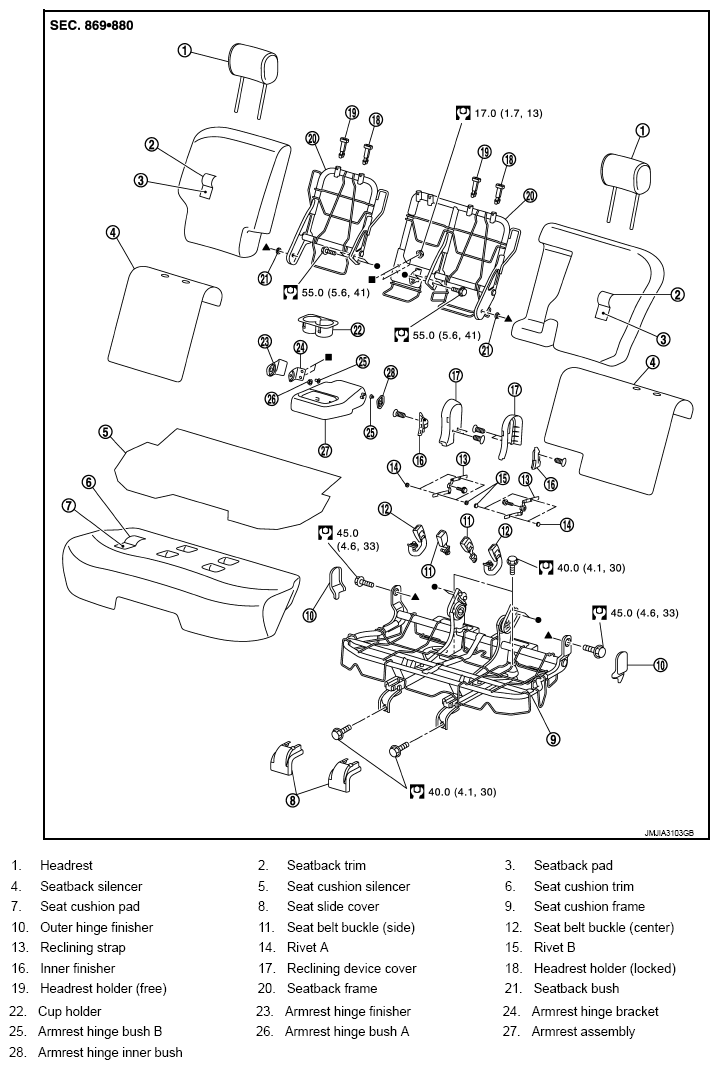

Fig 1: Exploded View Of Rear Seat With Torque Specifications
G08127726Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
