Gauge Control Module Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module "

Remove the parts shown:
- Driver's outer dashboard trim DRIVER'S OUTER DASHBOARD TRIM REMOVAL/INSTALLATION ).
- Driver's inner dashboard trim DRIVER'S INNER DASHBOARD TRIM REMOVAL/INSTALLATION ).
- Instrument fascia DRIVER'S INNER DASHBOARD TRIM REMOVAL/INSTALLATION ).
Remove the screws from the gauge control module (A).

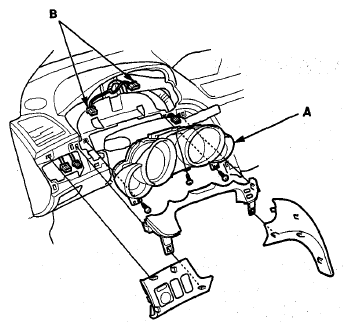

Fig 1: Identifying Gauge Control Module And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), and remove the gauge control module.
Install the gauge control module in the reverse order of removal.
