Audio Remote Switch Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove these items:
- Driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
- Steering wheel (see STEERING WHEEL REMOVAL ).
- Paddle shifter (see PADDLE SHIFTER REPLACEMENT ).
- Distance switch (with ACC) (see ADAPTIVE CRUISE CONTROL (ACC) COMBINATION SWITCH/DISTANCE SWITCH REMOVAL/INSTALLATION ).
Remove the screws and the audio remote switch (A).

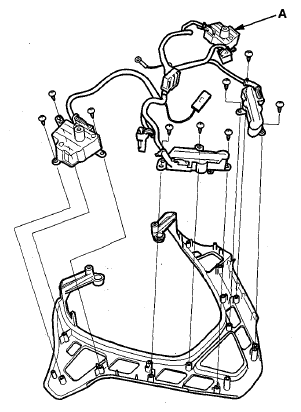

Fig 1: Identifying Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio remote switch in the reverse order of removal.
