Audio Remote Switch Test

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the 20P connector (A) from the cable reel.

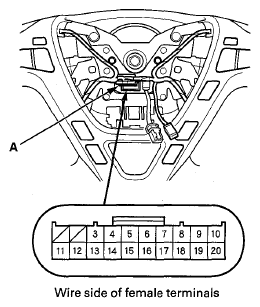

Fig 1: Identifying Driver Airbag And 20P Connector In Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between terminals No. 19 and No. 20 in each switch position according to the table.

Position	Resistance
No button pressed	About 10 kΩ
MODE	About 3.7 kΩ
CH (+)	About 1.7 kΩ
CH (-)	About 775 Ω
(VOL. UP)↑	About 357 Ω
(VOL. DOWN)↓	About 100 Ω

If the resistance is not as specified, replace the audio remote switch (see AUDIO REMOTE SWITCH TEST ).
Use a diode tester between terminals in each switch position according to the table.

Fig 2: Identifying Diode Tester Between Terminals And Switch Position According To Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the diode test is not as specified, replace the audio remote switch (see AUDIO REMOTE SWITCH TEST ).
