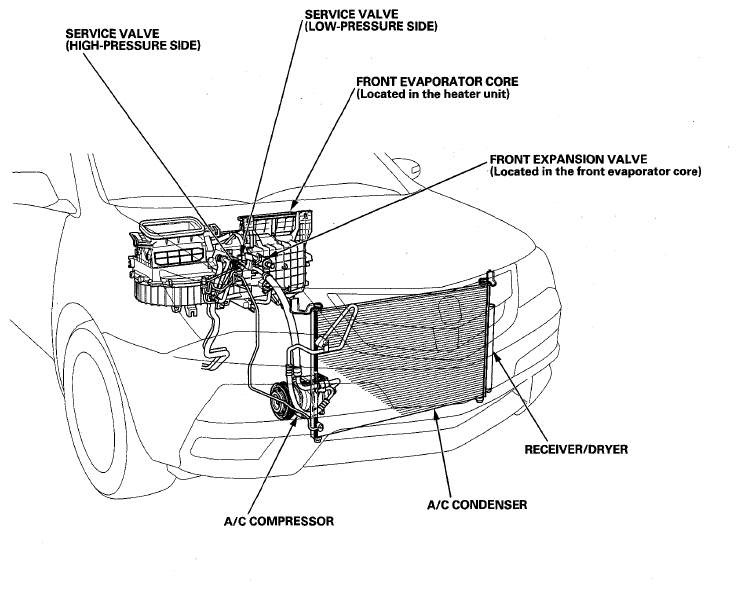

Fig 1: Identifying Climate Control Components Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

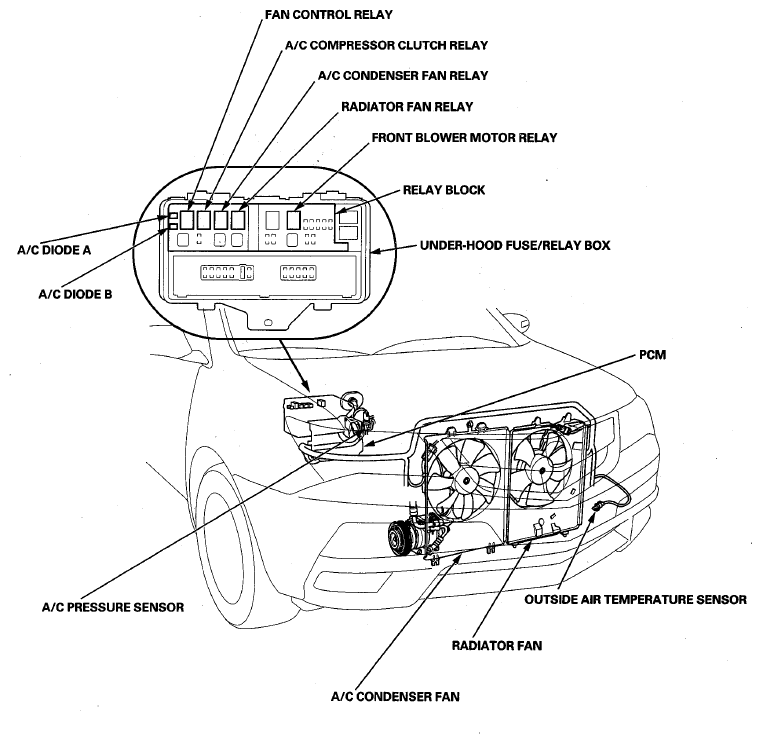

Fig 2: Identifying Climate Control Components Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

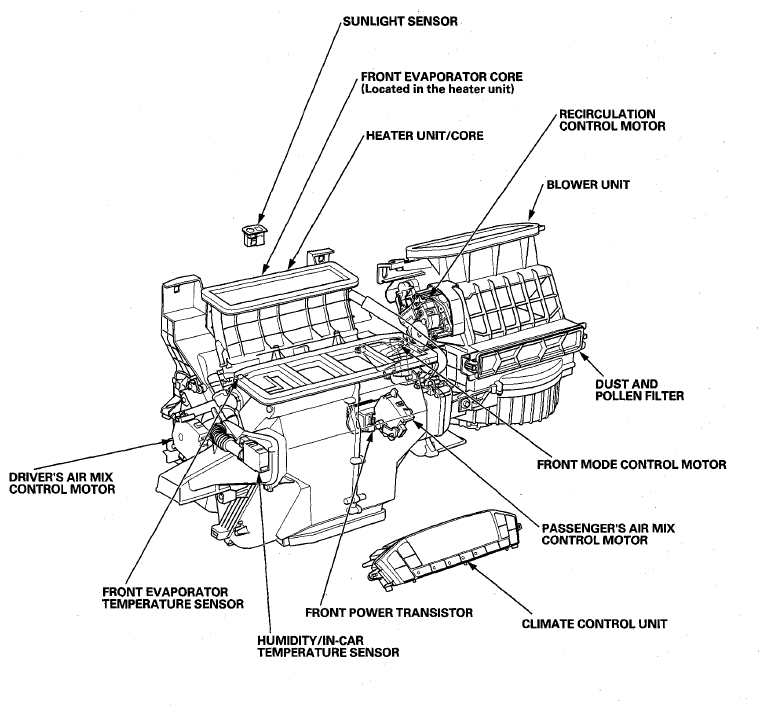

Fig 3: Identifying Climate Control Components Location (3 Of 3)
