Final Drive: Disassembly

  1. Remove differential side bearing inner race (clutch housing side) (1) according to the following procedures.
    1. Set a puller [Commercial service tool] to differential side bearing inner race (clutch housing side).
    2. Remove differential side bearing inner race (clutch housing side), using the drift (A) [SST: ST33061000 (J-8107-2)].
  2. Remove speedometer drive gear.
    Fig 1: Removing Differential Side Bearing Inner Race (Clutch Housing Side)
    G04926480Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove final gear mounting bolts, and then remove final gear (1).

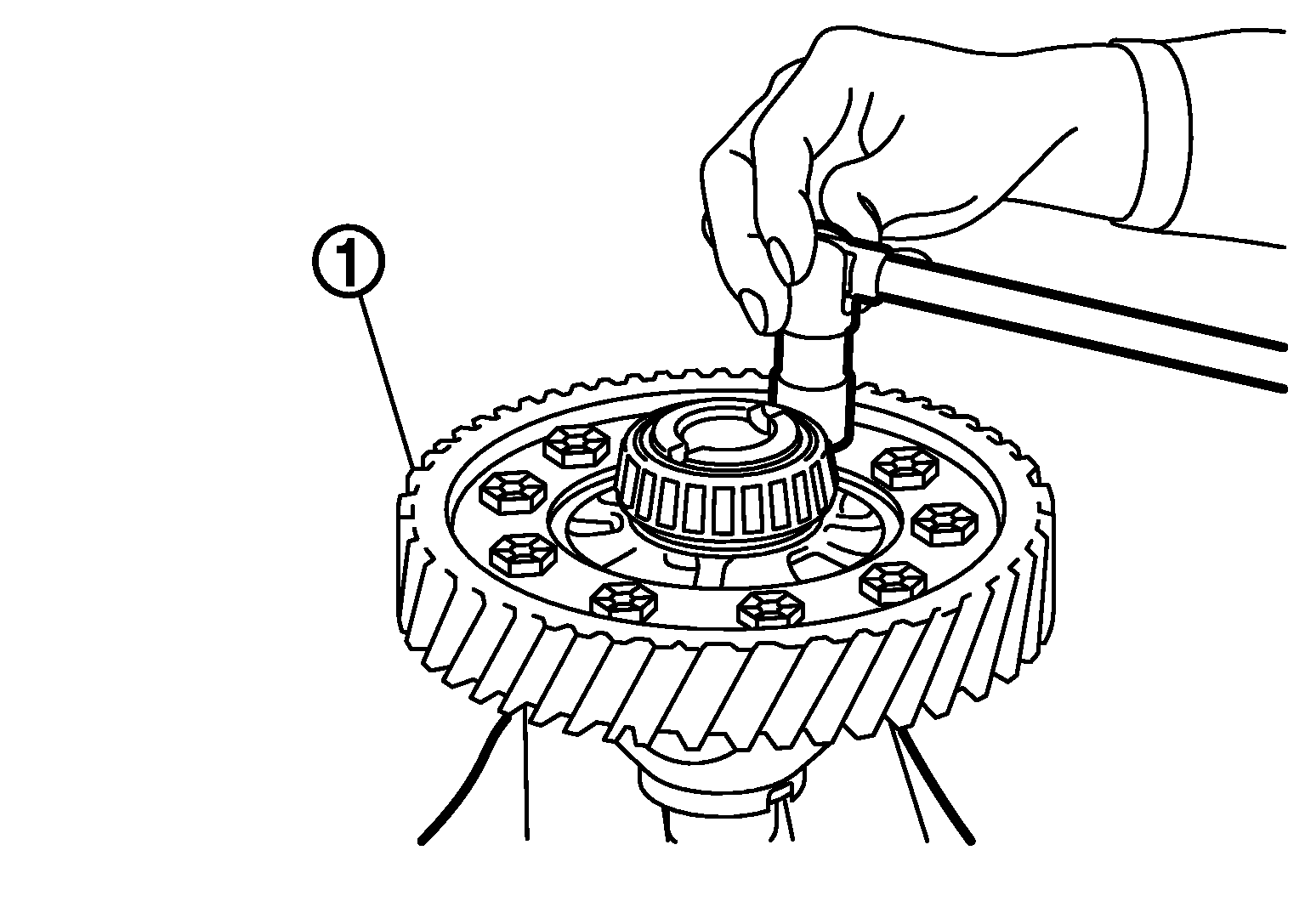

    Fig 2: Removing Final Gear Mounting Bolts
    G05914998Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove differential side bearing inner race (transaxle case side) (1) according to the following procedures.
    1. Set a puller [Commercial service tool] to differential side bearing inner race (transaxle case side).
    2. Remove differential side bearing inner race (transaxle case side), using a drift (A) [Commercial service tool].

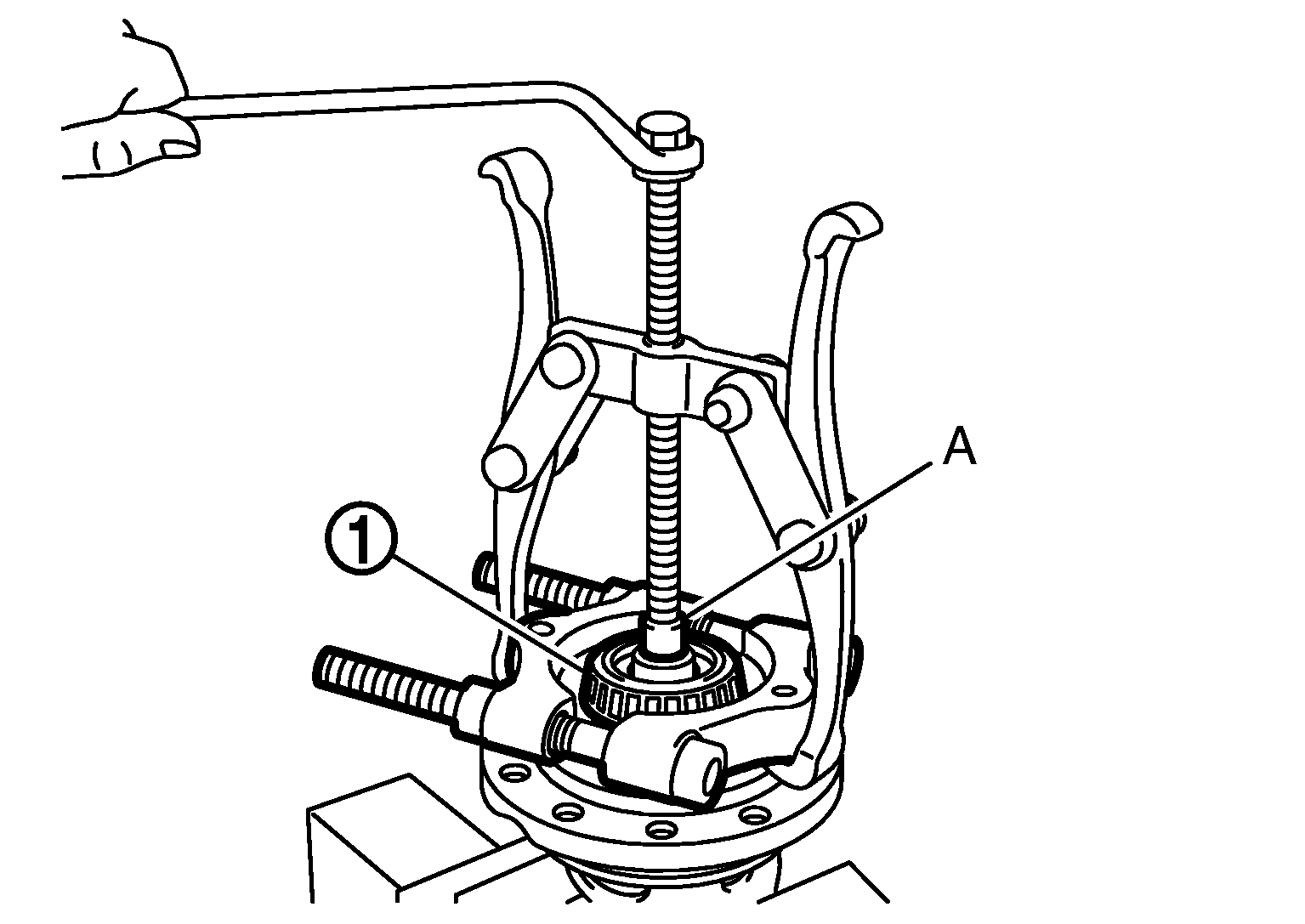

      Fig 3: Removing Differential Side Bearing Inner Race (Transaxle Case Side)
      G05914999Courtesy of NISSAN NORTH AMERICA, INC.
