Cross-Sectional View

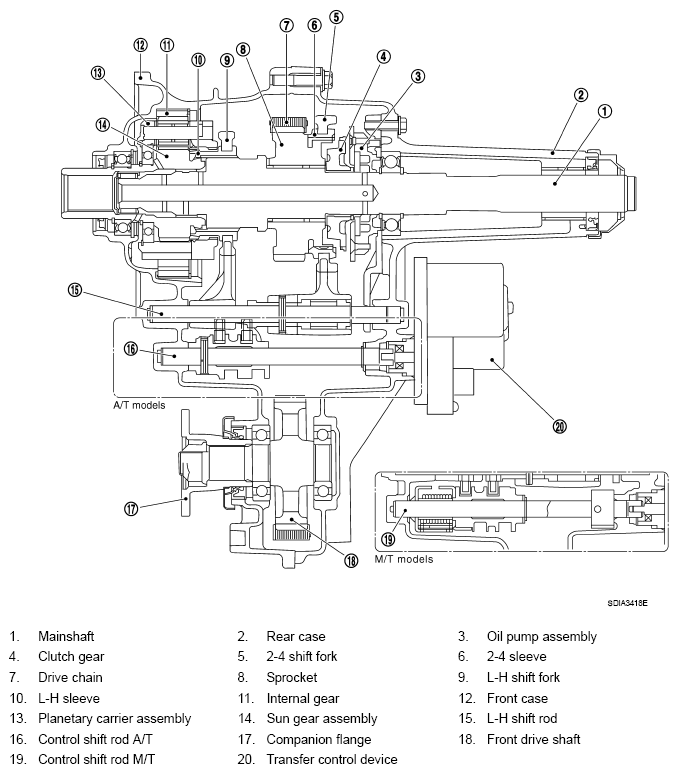

Fig 1: Cross-Sectional View Of Transfer System (4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
