Pinout Values and Diagnostic Parameters




ELECTRIC SHIFT CONTROL MODULE

Reference Value

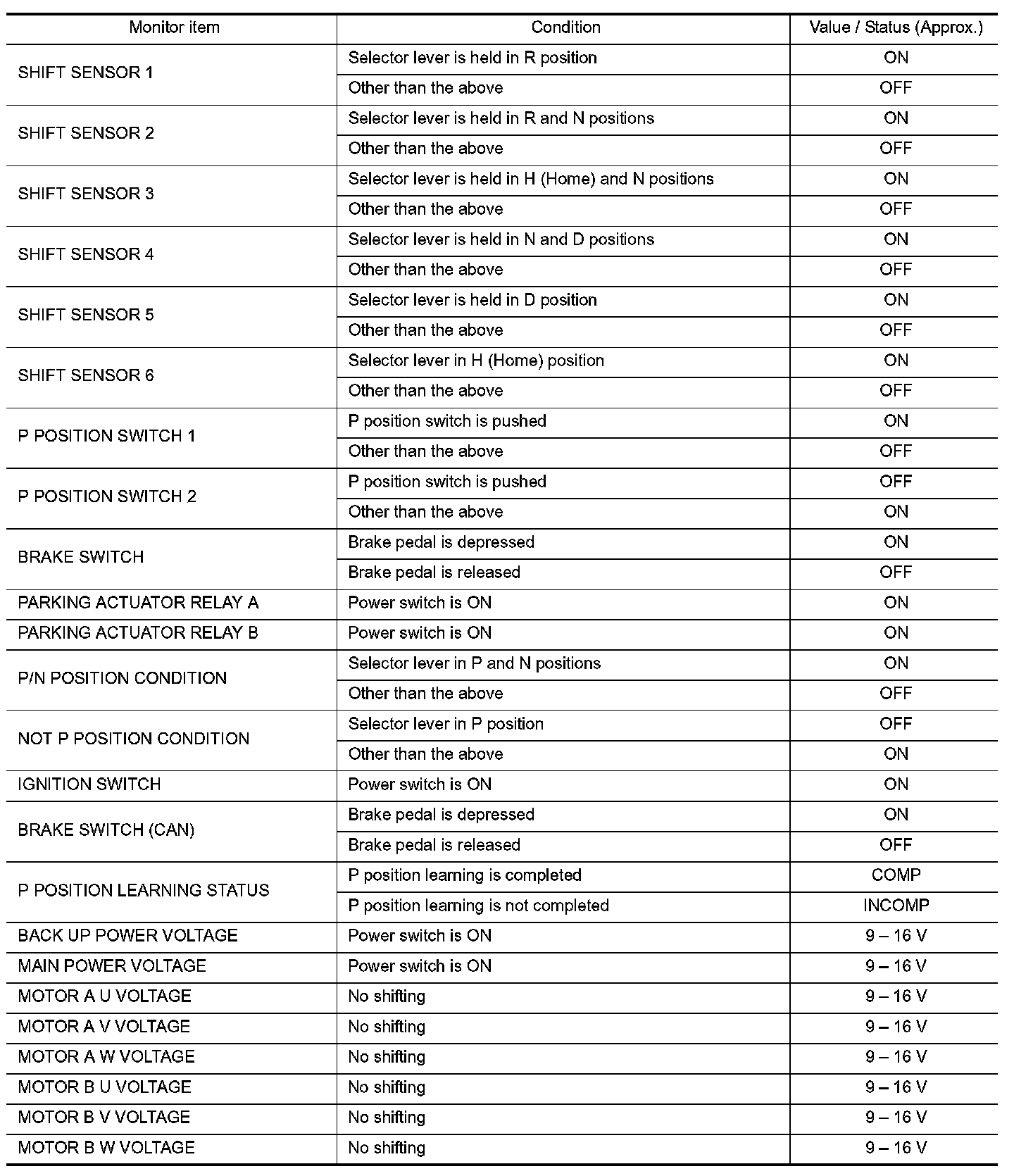

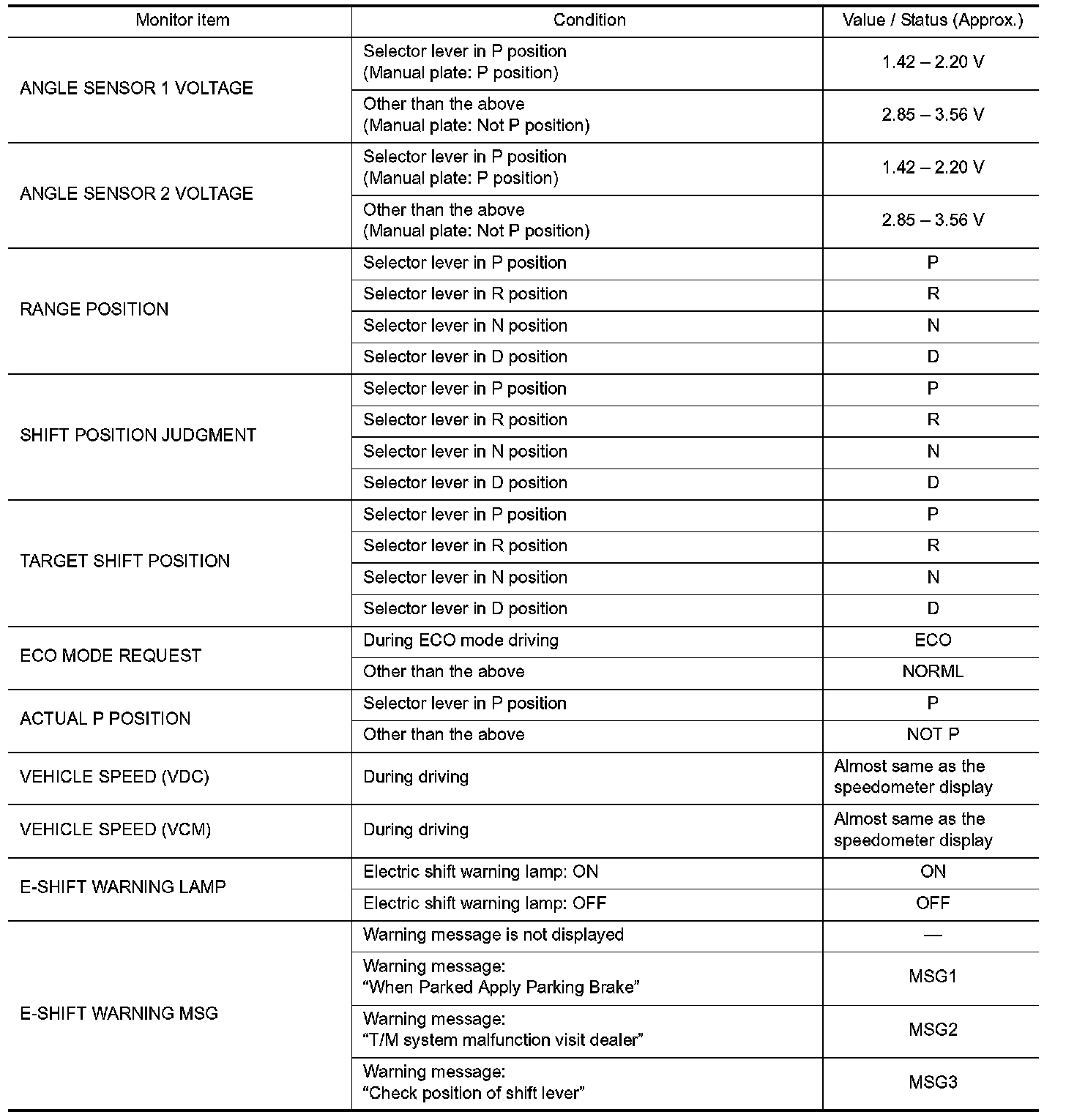

CONSULT DATA MONITOR STANDARD VALUE

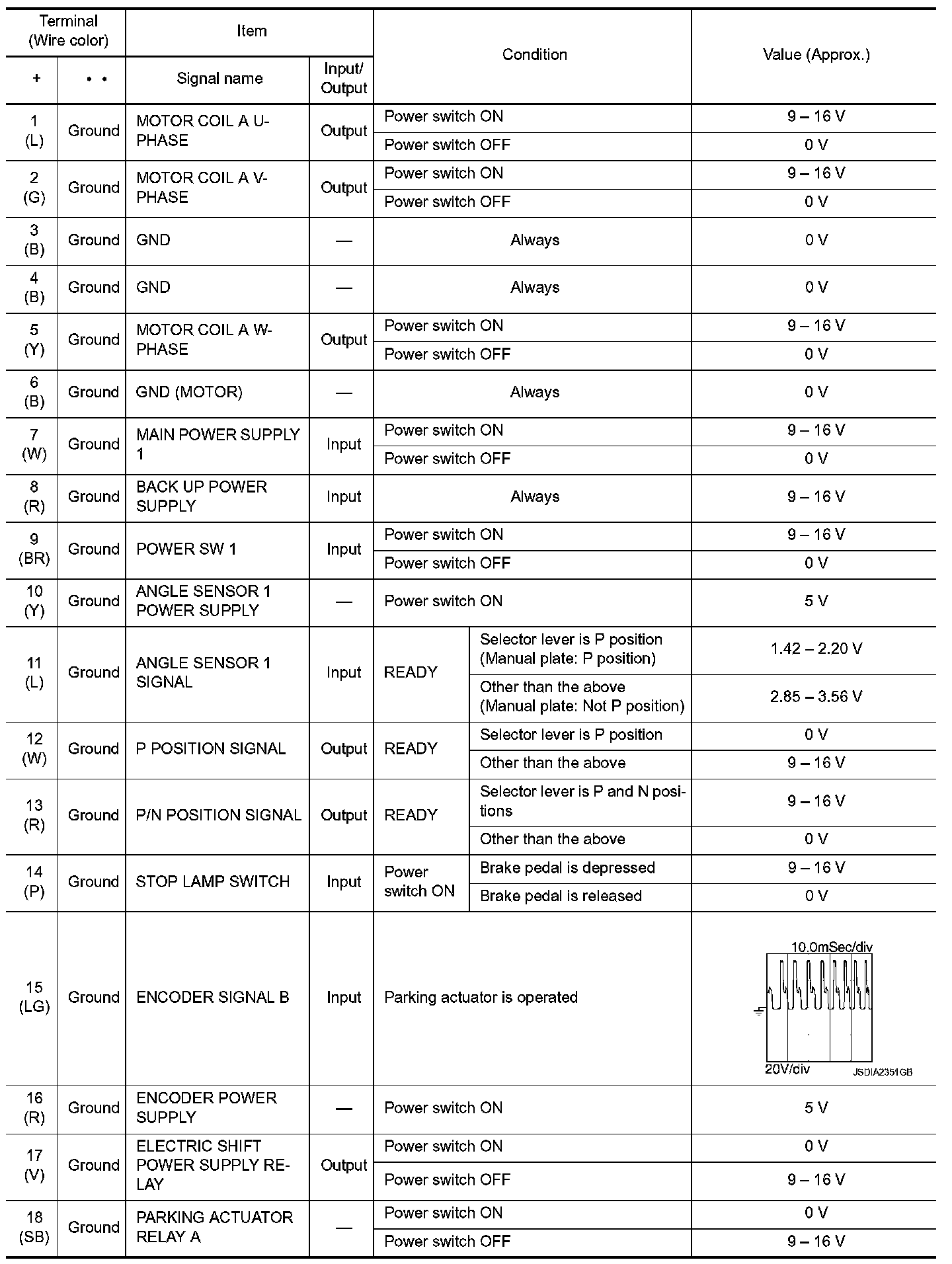

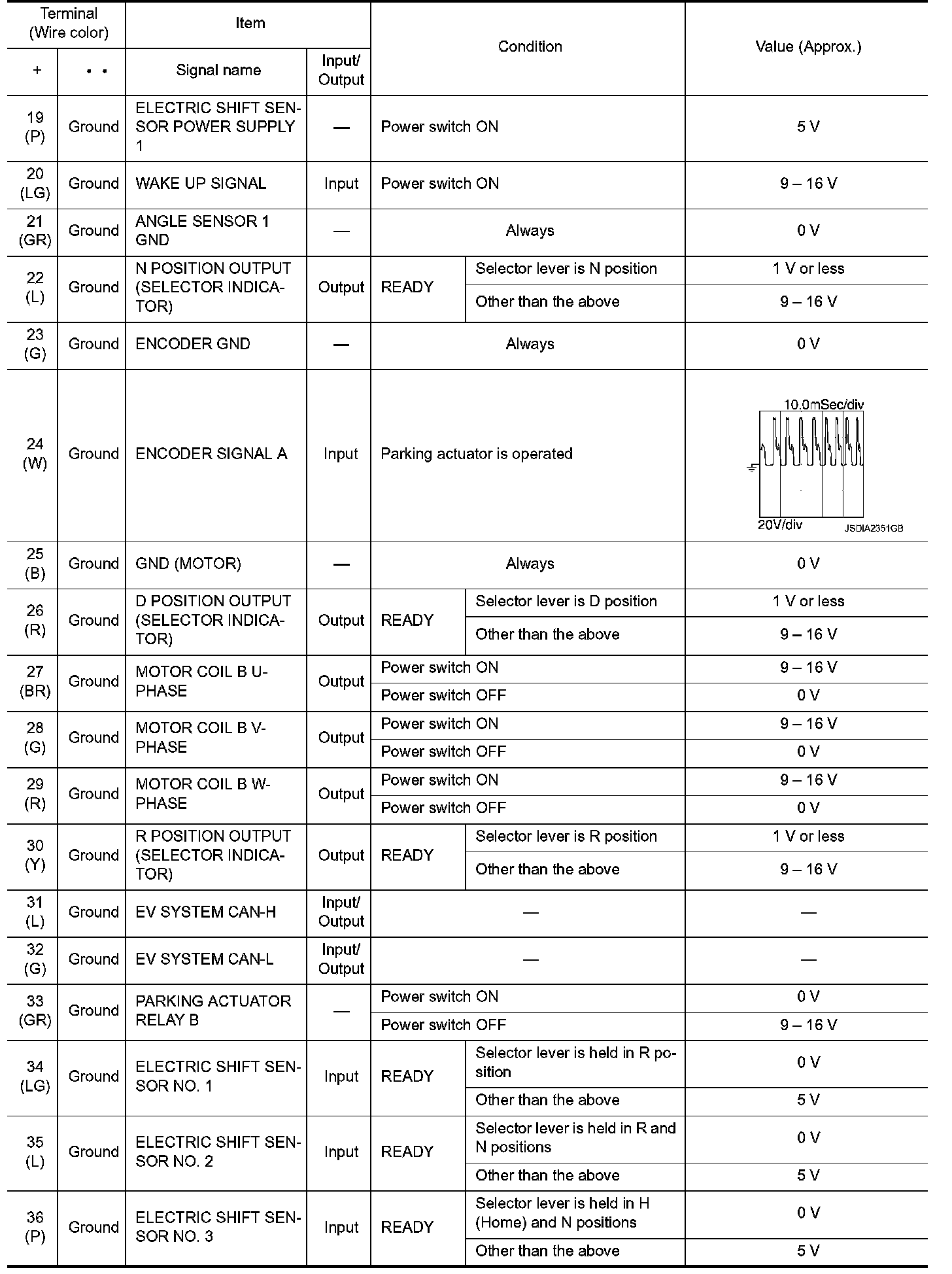

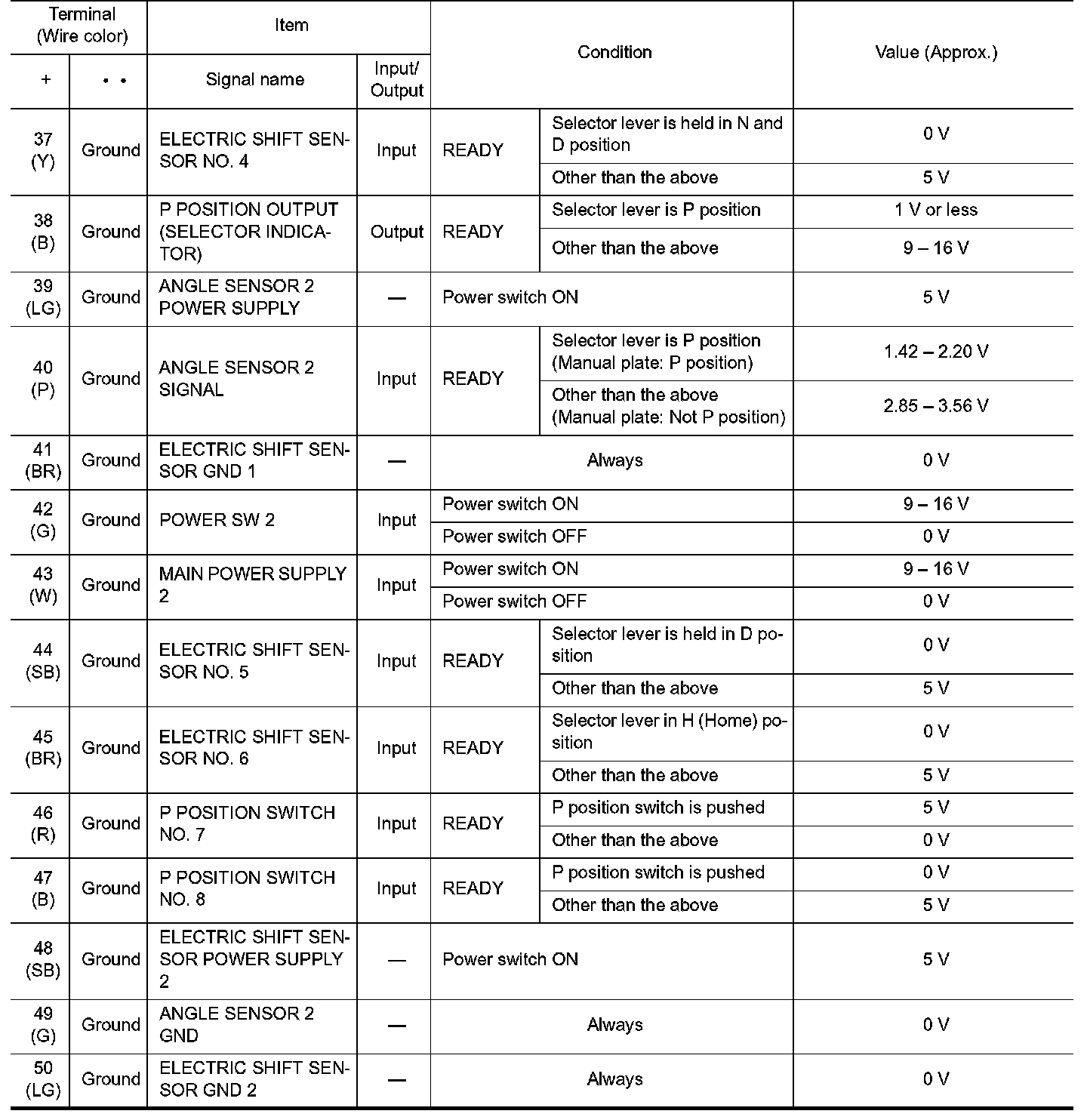

TERMINAL LAYOUT







PHYSICAL VALUES
