Lubrication Circuit

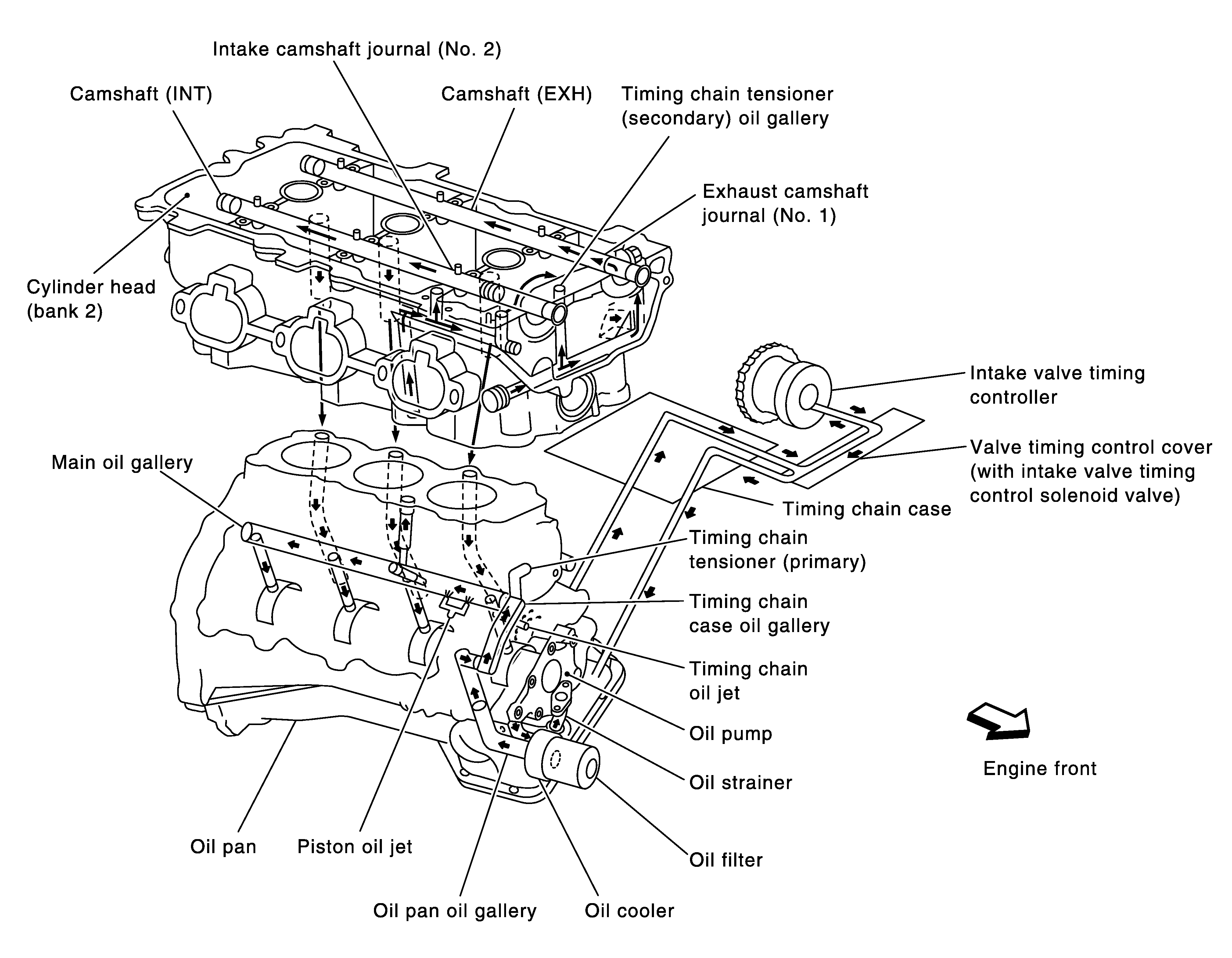

Fig 1: Lubrication System Circuit Diagram

G00525900

Courtesy of NISSAN NORTH AMERICA, INC.
