Component Parts Location

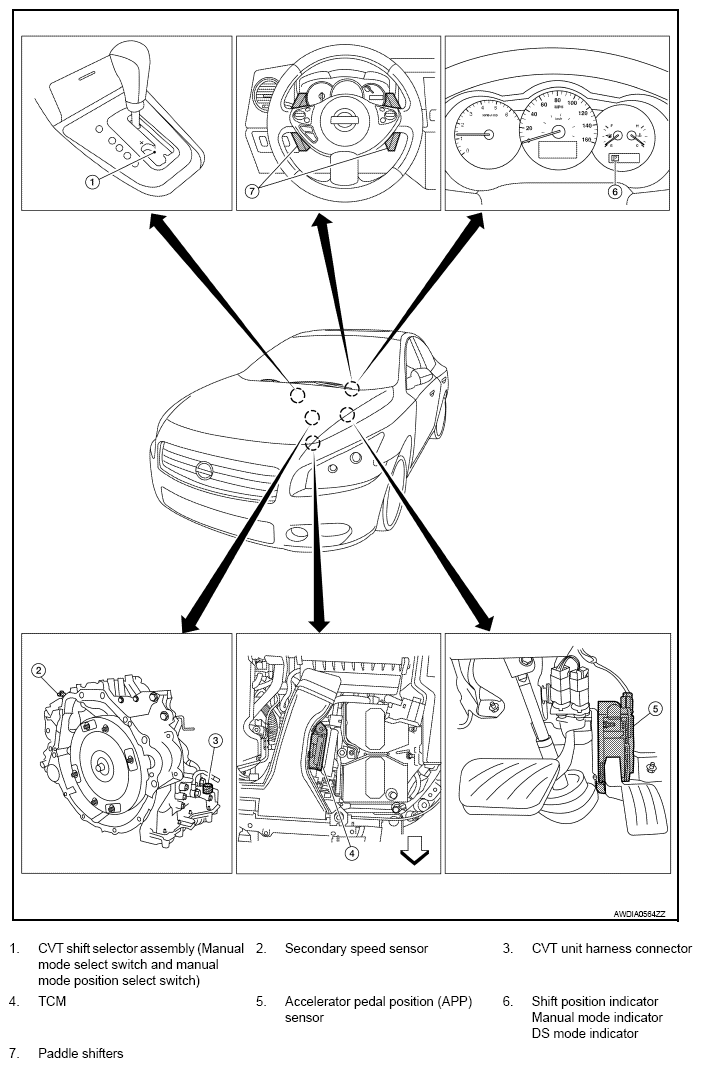

Fig 1: Identifying Lock-Up And Select Control System Component Parts Location
G08147901Courtesy of NISSAN NORTH AMERICA, INC.
