Connector Terminal Identification

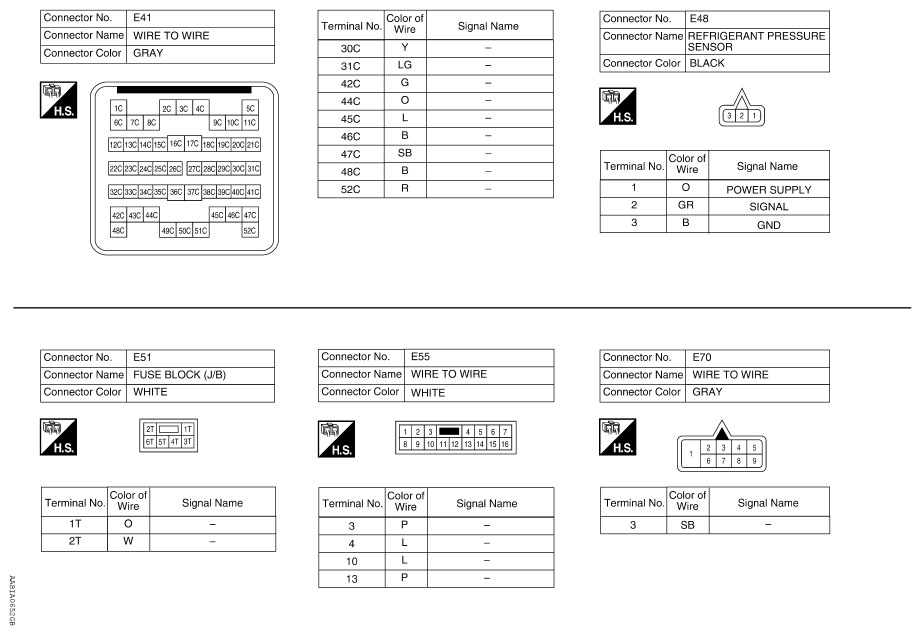

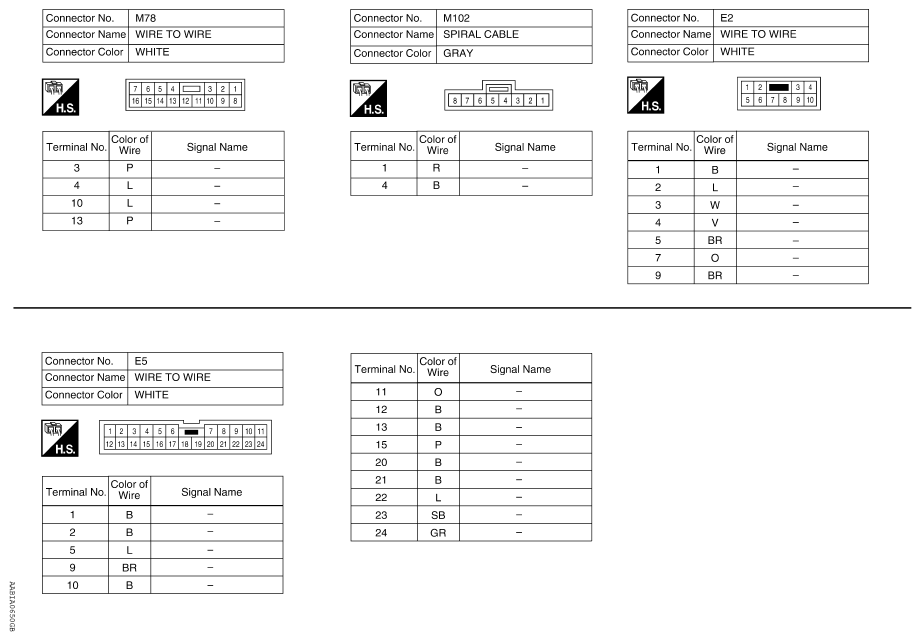

Fig 1: Identifying Engine Control System Connectors - VQ40DE (1 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

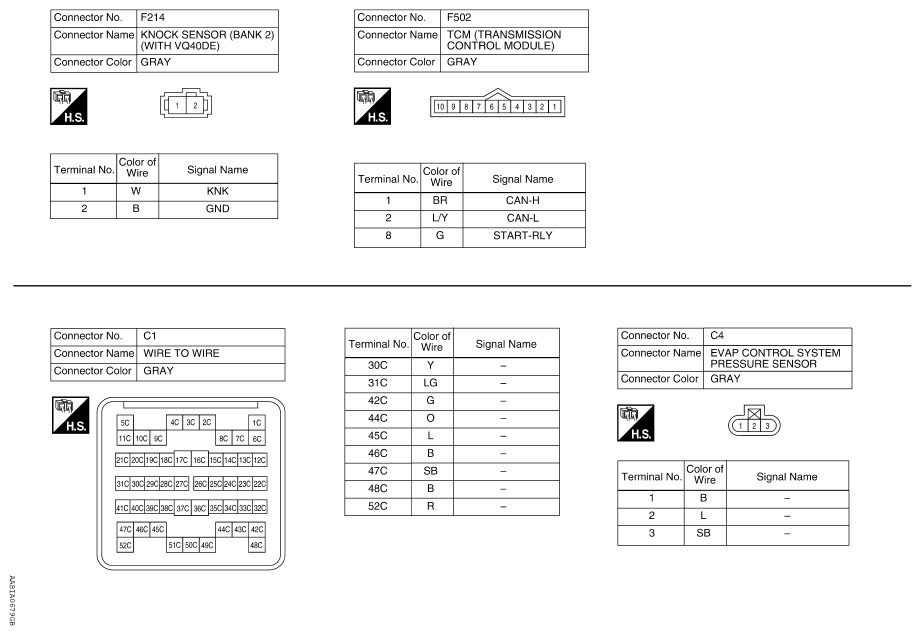

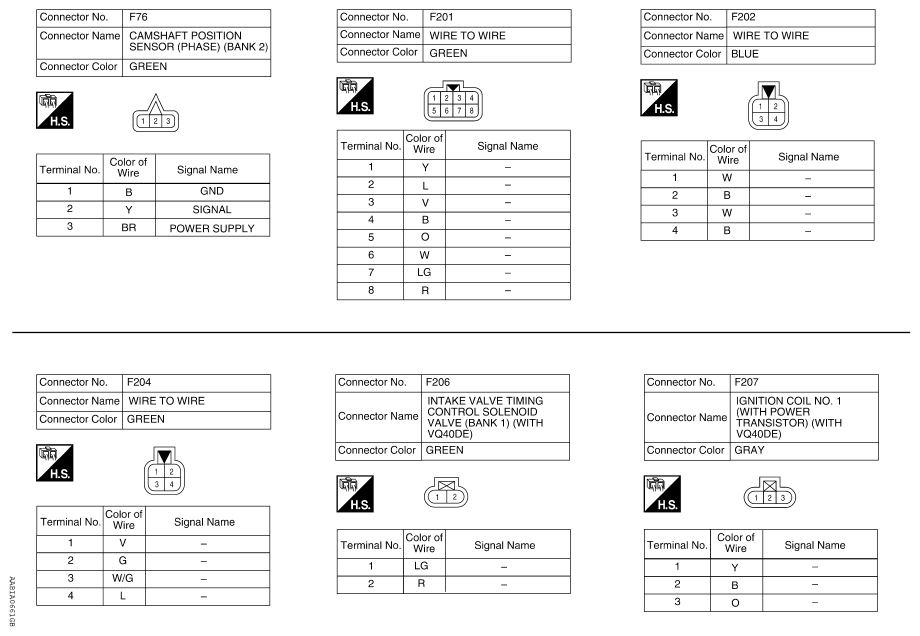

Fig 2: Identifying Engine Control System Connectors - VQ40DE (2 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

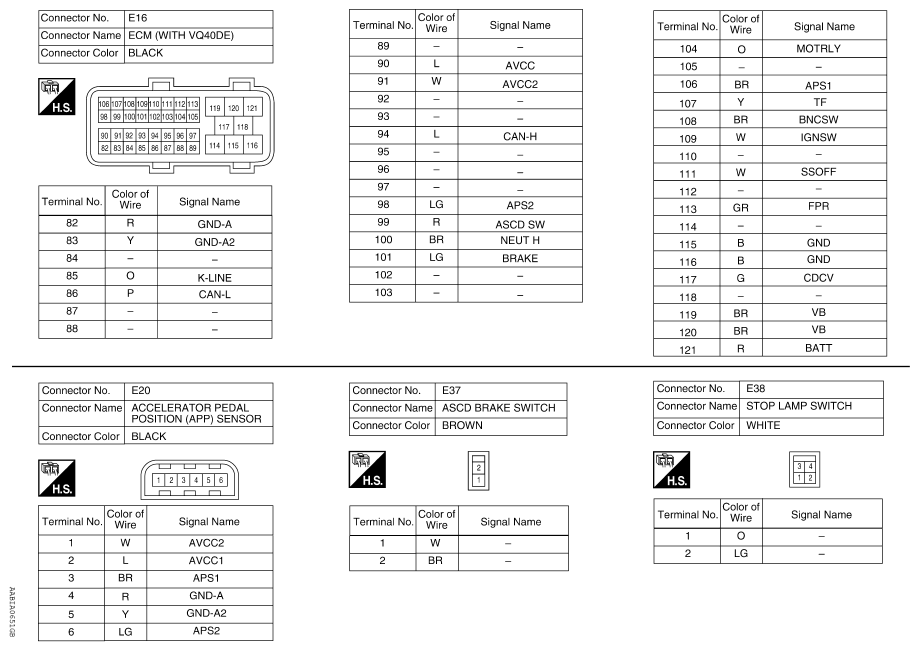

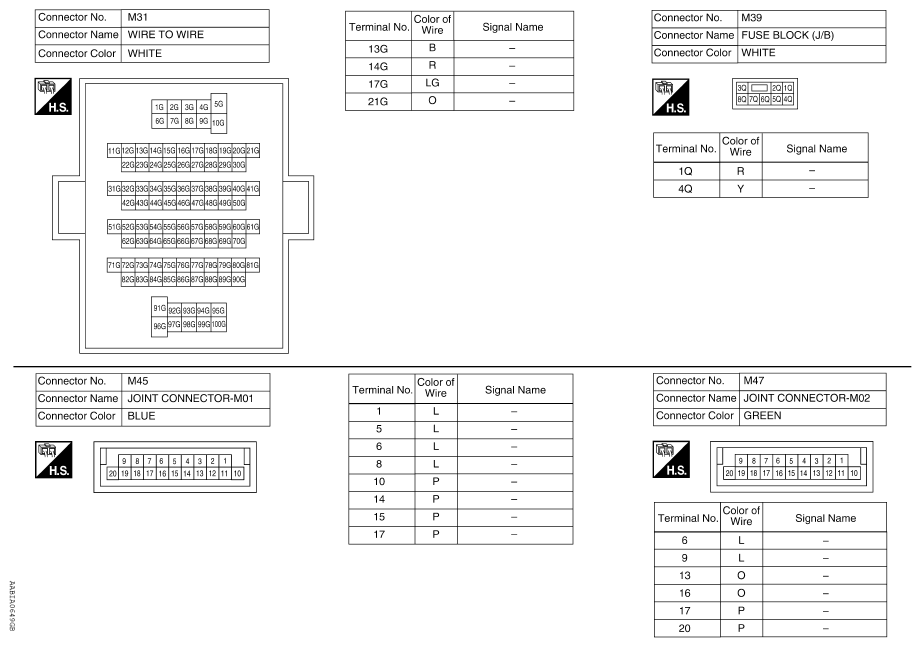

Fig 3: Identifying Engine Control System Connectors - VQ40DE (3 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

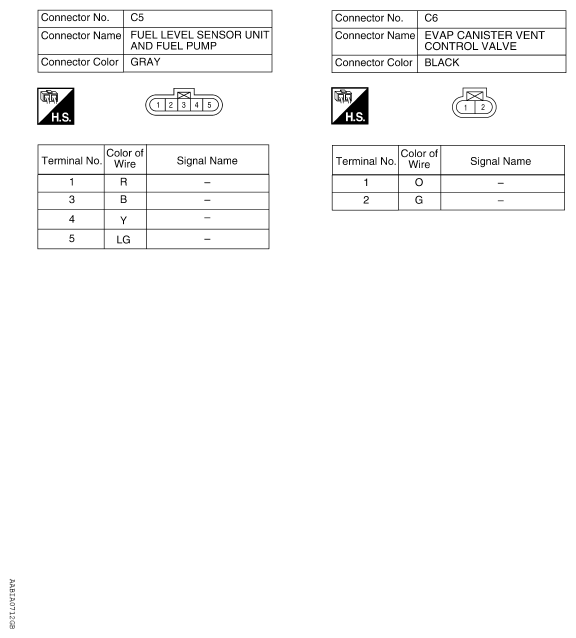

Fig 4: Identifying Engine Control System Connectors - VQ40DE (4 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

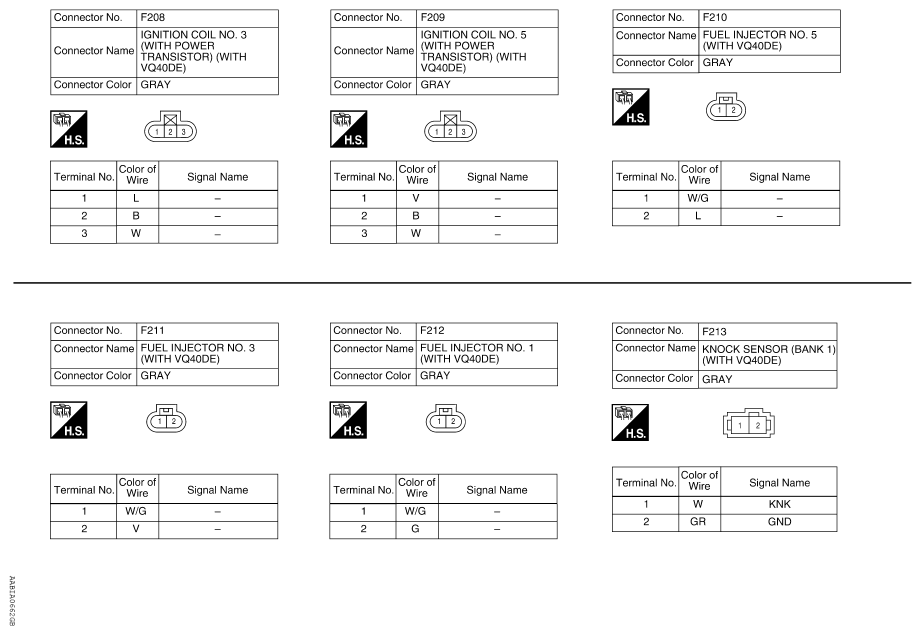

Fig 5: Identifying Engine Control System Connectors - VQ40DE (5 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

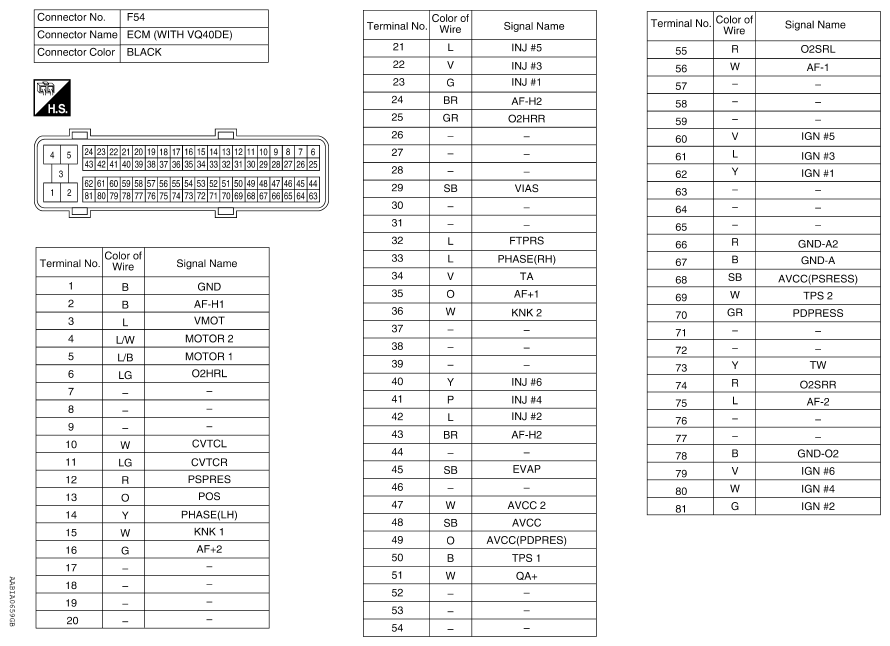

Fig 6: Identifying Engine Control System Connectors - VQ40DE (6 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

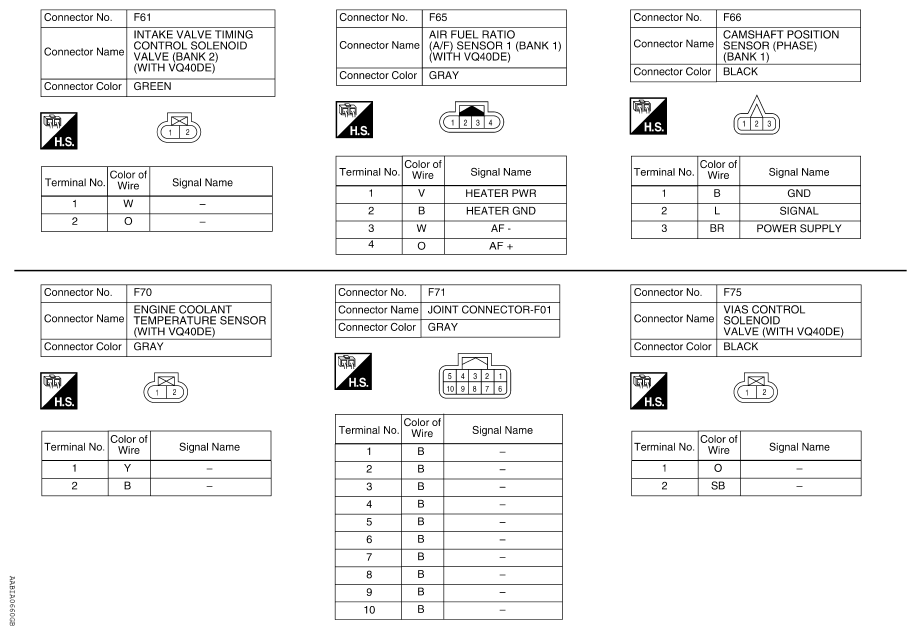

Fig 7: Identifying Engine Control System Connectors - VQ40DE (7 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

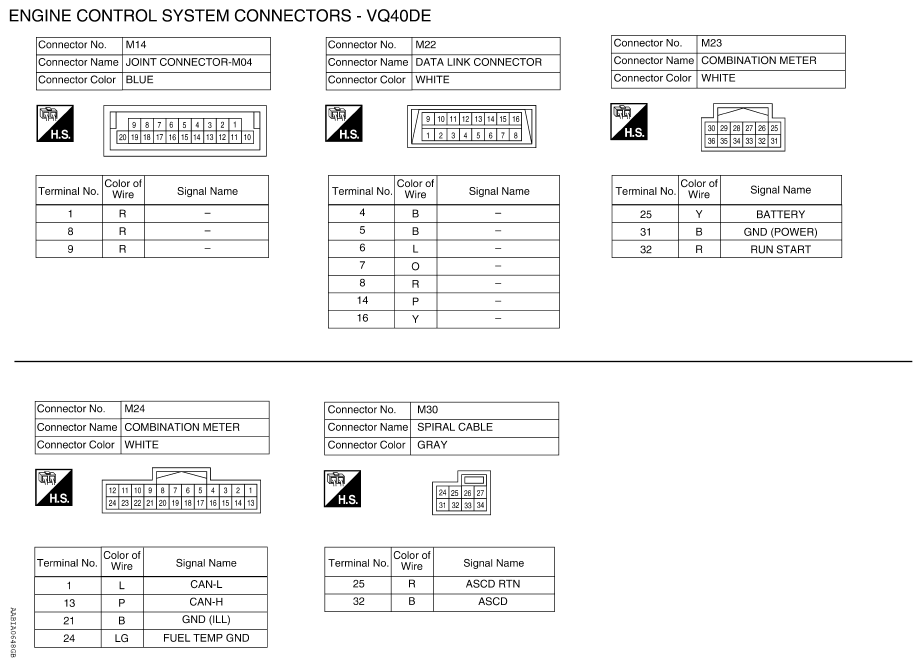

Fig 8: Identifying Engine Control System Connectors - VQ40DE (8 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Connectors - VQ40DE (9 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Connectors - VQ40DE (10 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Connectors - VQ40DE (11 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Connectors - VQ40DE (12 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Control System Connectors - VQ40DE (13 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Connectors - VQ40DE (14 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Engine Control System Connectors - VQ40DE (15 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Engine Control System Connectors - VQ40DE (16 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Engine Control System Connectors - VQ40DE (17 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Engine Control System Connectors - VQ40DE (18 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.
