Connector Terminal Identification

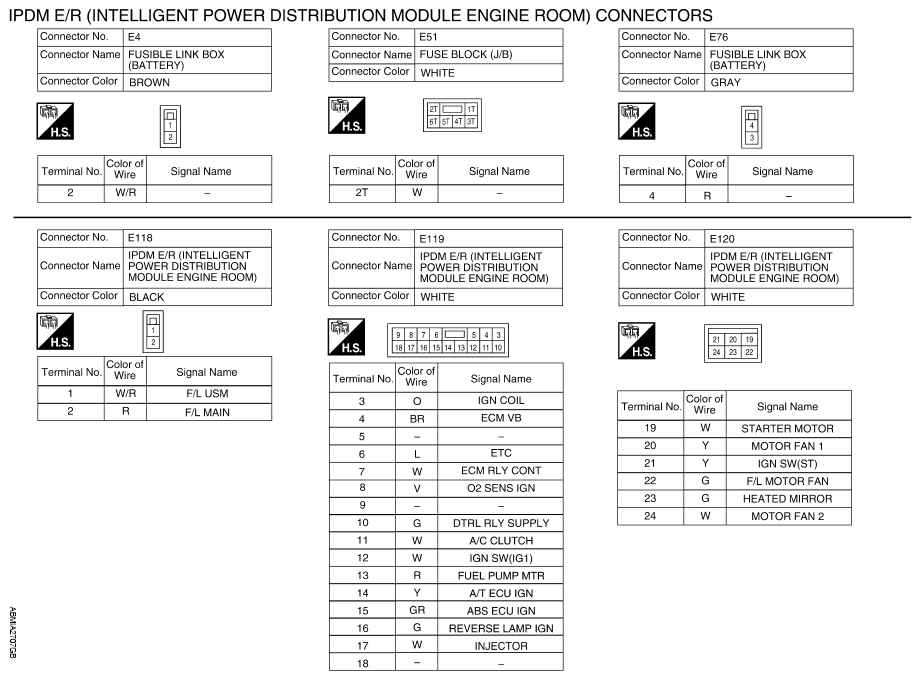

Fig 1: Identifying Intelligent Power Distribution Module Engine Room Connectors (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

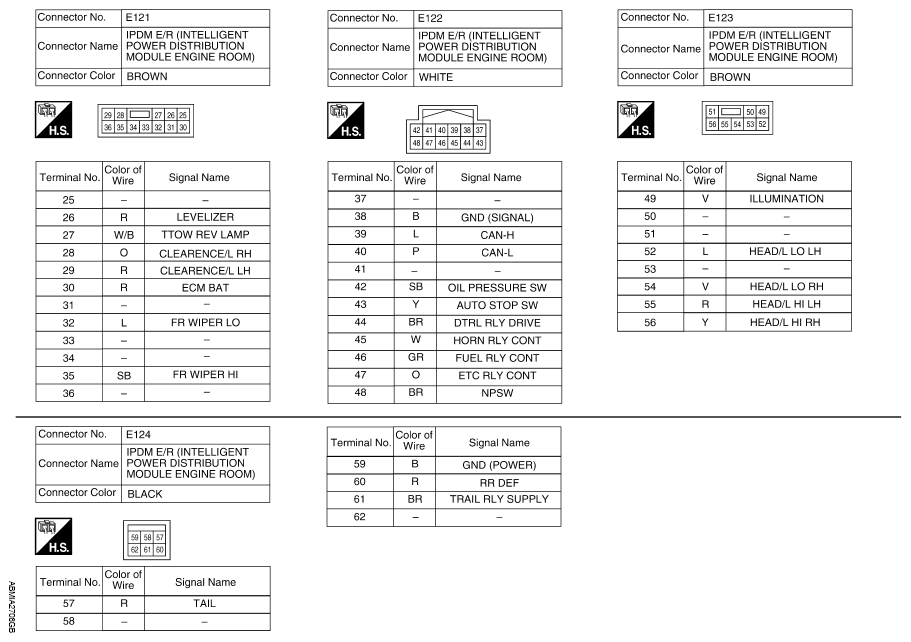

Fig 2: Identifying Intelligent Power Distribution Module Engine Room Connectors (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
