Work Flow
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

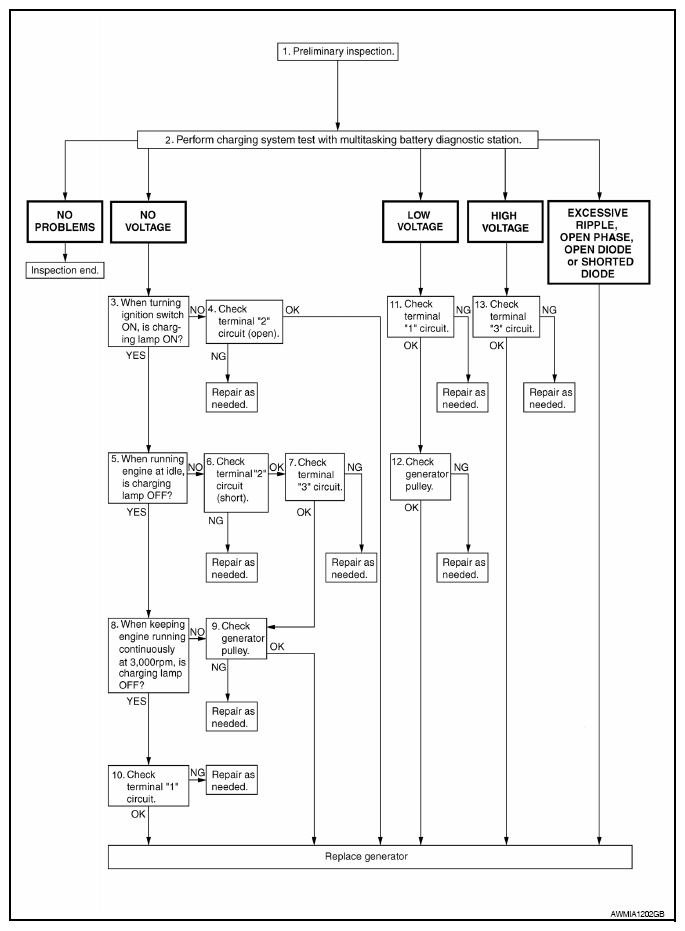

Fig 1: Diagnosis And Repair Workflow Chart (Overall Sequence)
Courtesy of NISSAN NORTH AMERICA, INC.
