Exploded View

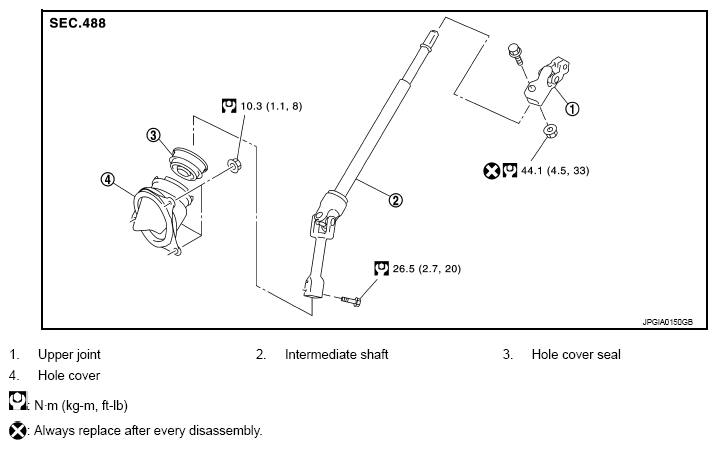

Fig 1: Exploded View Of Steering Shaft With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
