Exploded View: Disassembly

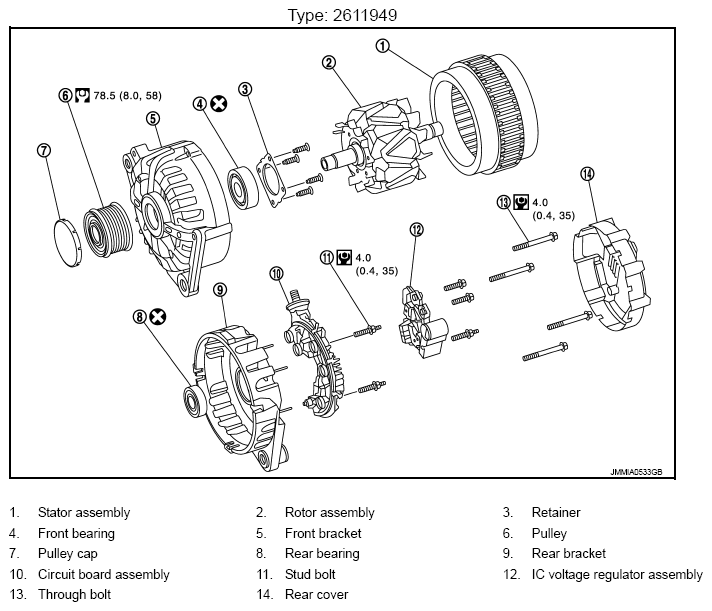

Fig 1: Disassembled View Of Alternator (Type: 2611949)
G08178347Courtesy of NISSAN NORTH AMERICA, INC.

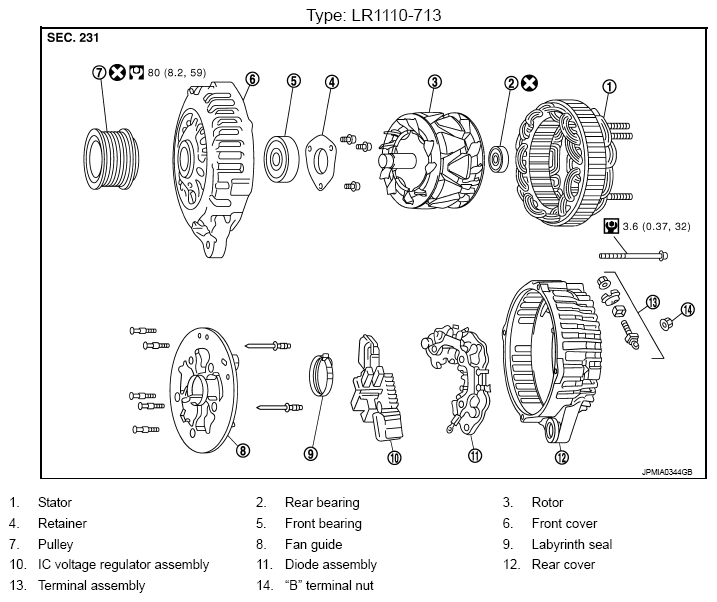

Fig 2: Disassembled View Of Alternator (Type: LR1110-713)
G08178348Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
