Combination Meter Harness Connector Terminal Layout

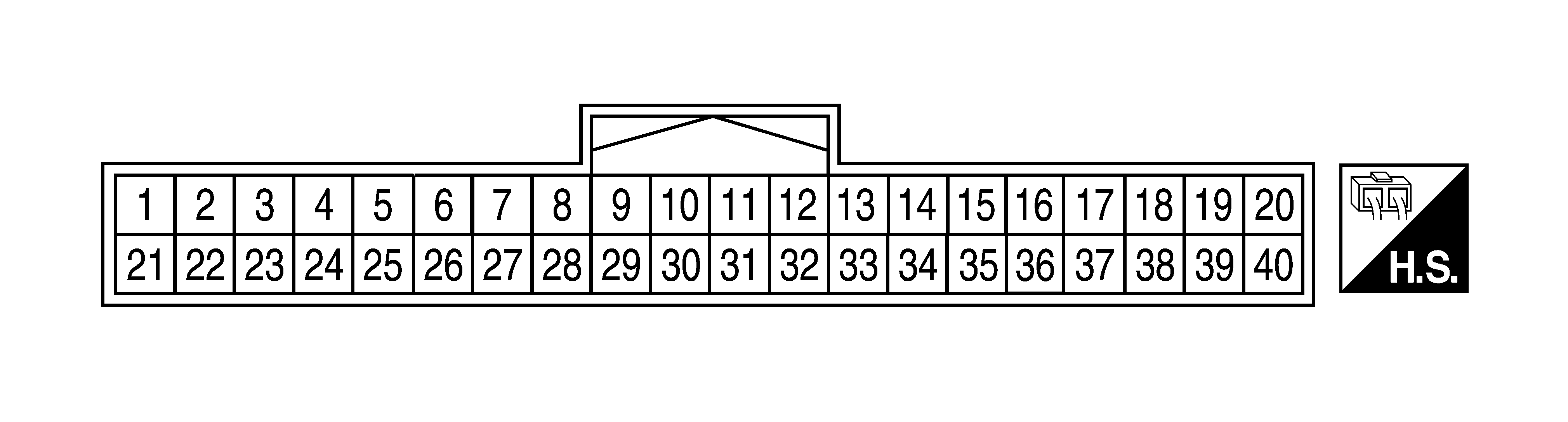

Fig 1: Combination Meter Connector Terminal Layout
G05879186Courtesy of NISSAN NORTH AMERICA, INC.
