Wiring Diagram - KEYLESS -

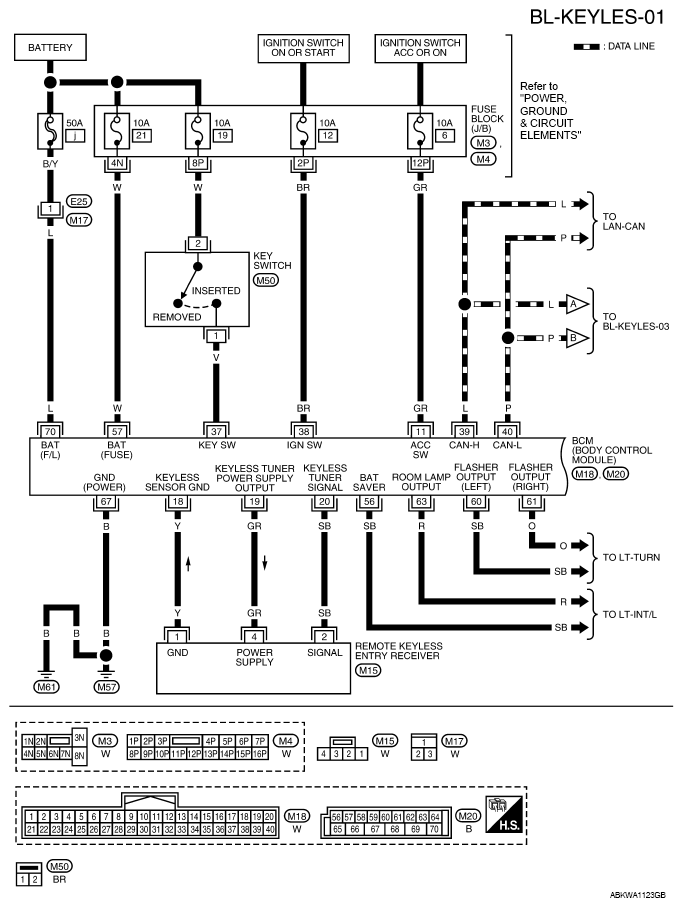

Fig 1: Identifying Remote Keyless Entry Wiring Diagram With Connector End View (BL-KEYLES-01)
Courtesy of NISSAN NORTH AMERICA, INC.

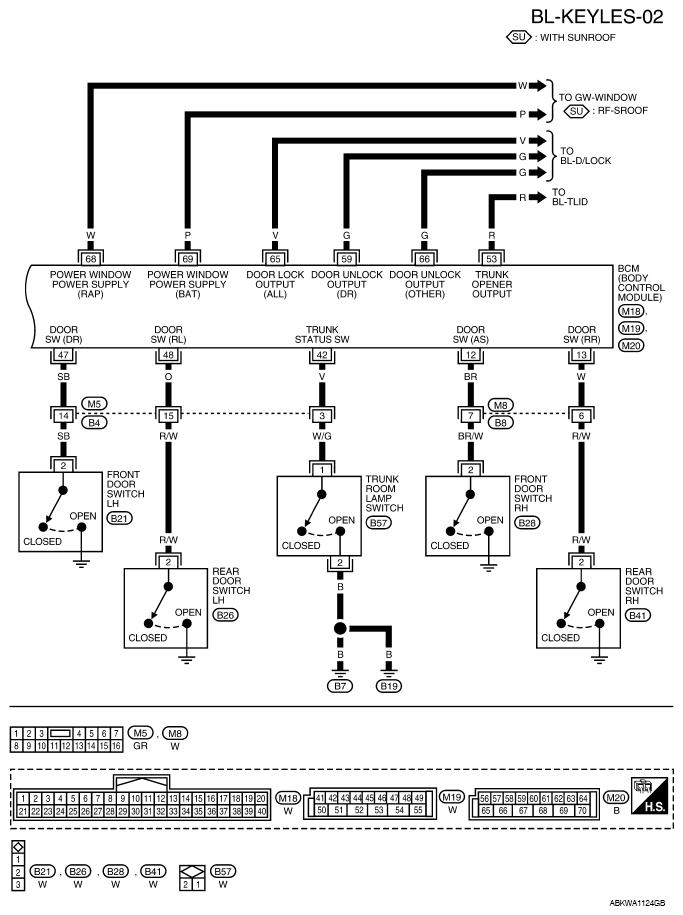

Fig 2: Identifying Remote Keyless Entry Wiring Diagram With Connector End View (BL-KEYLES-02)
Courtesy of NISSAN NORTH AMERICA, INC.

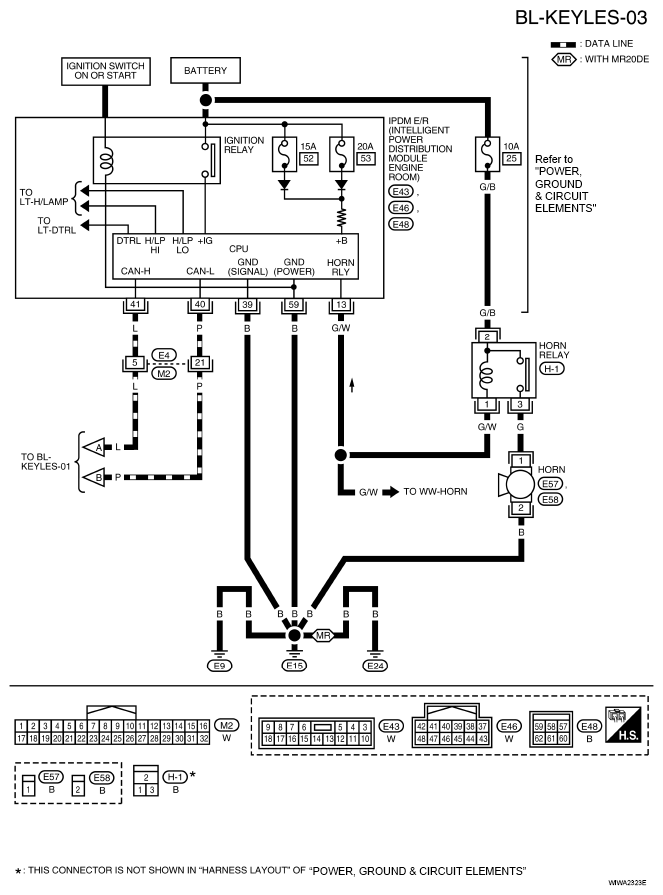

Fig 3: Identifying Remote Keyless Entry Wiring Diagram With Connector End View (BL-KEYLES-03)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
