Disassembly and Assembly (Left Side): Notes

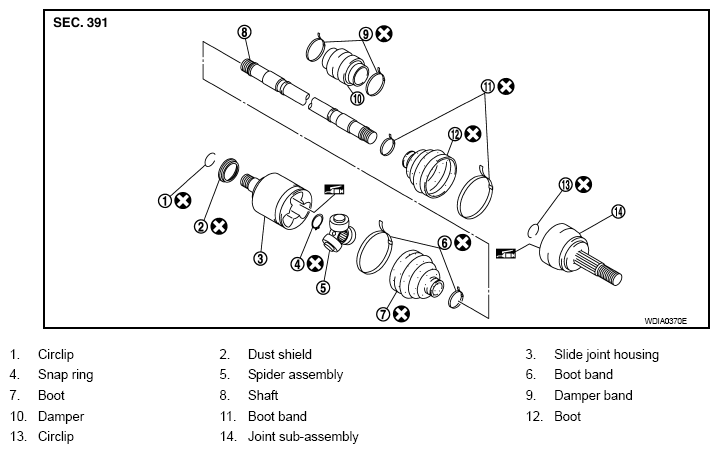

Fig 1: Disassembled View Of Front Drive Shaft (Left Side)
G08180197Courtesy of NISSAN NORTH AMERICA, INC.
