Removal and Installation: Notes

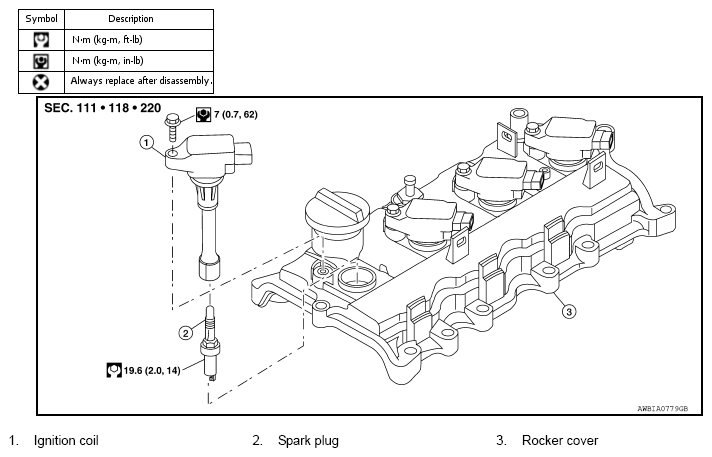

Fig 1: Exploded View Of Spark Plug With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
