Rear Suspension Assembly: Component

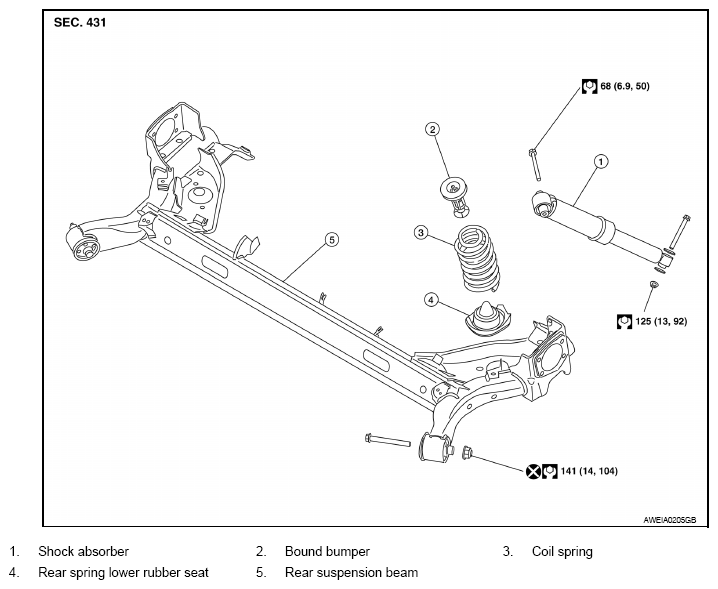

Fig 1: Exploded View Of Rear Suspension Assembly Components With Torque Specifications
G08180283Courtesy of NISSAN NORTH AMERICA, INC.
