Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical
>>
Unit Disassembly And Assembly
>>
Timing Chain
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

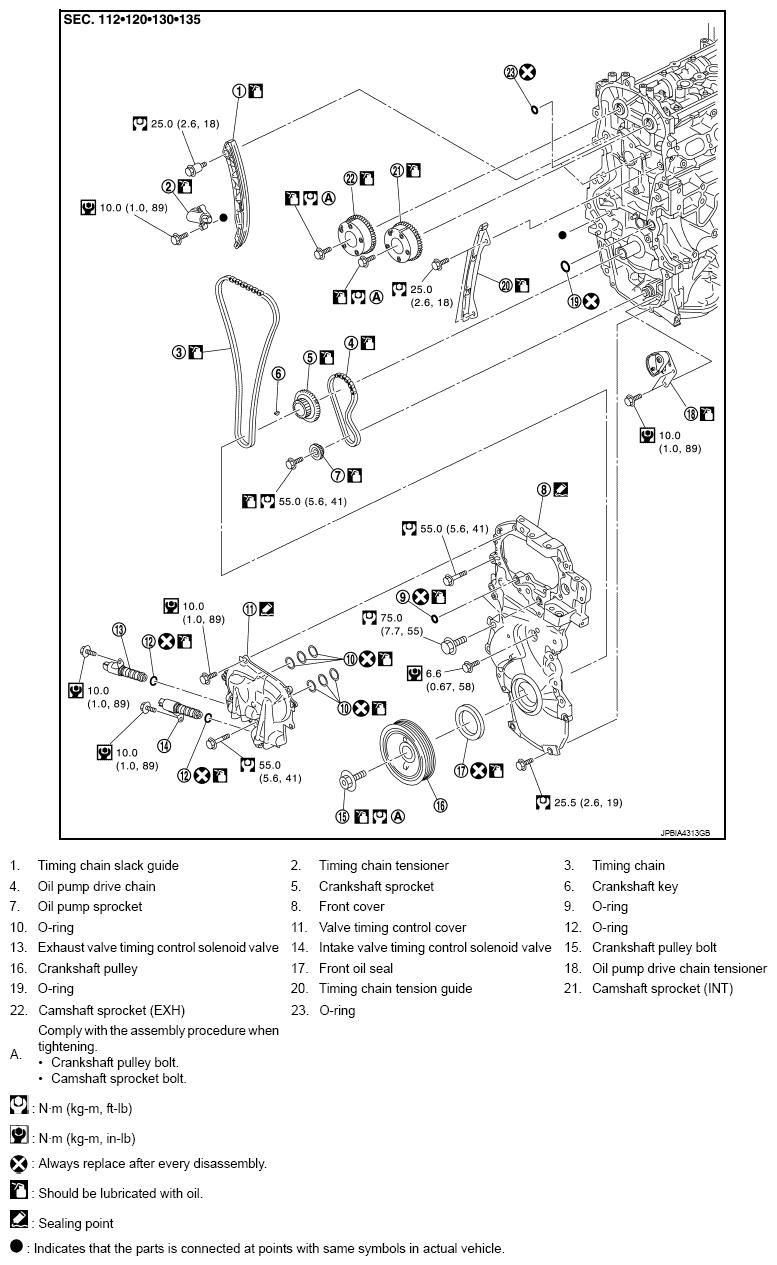

Fig 1: Exploded View Of Timing Chain With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
