Exploded View

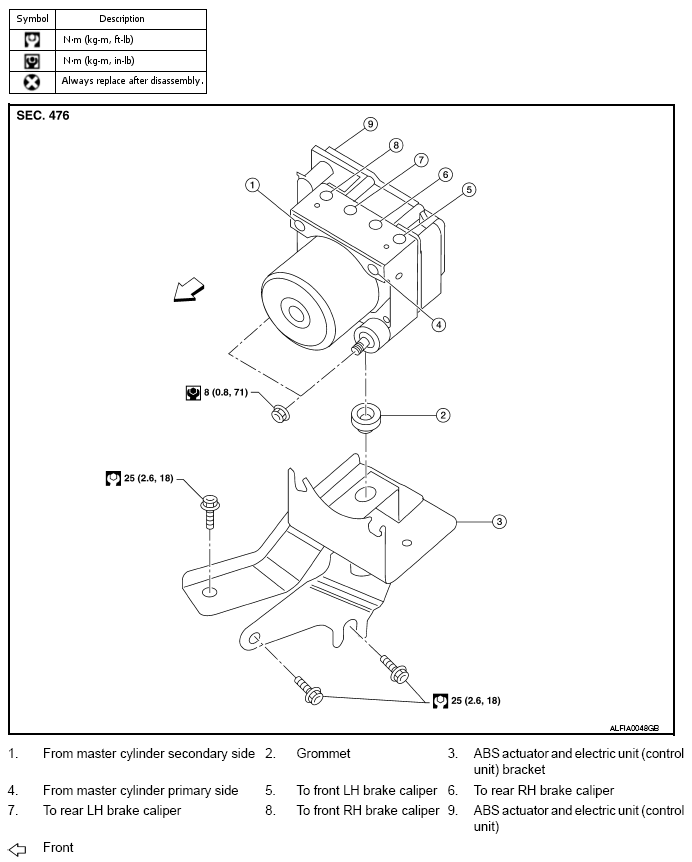

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit)
G08909582Courtesy of NISSAN NORTH AMERICA, INC.
