Component Parts Location

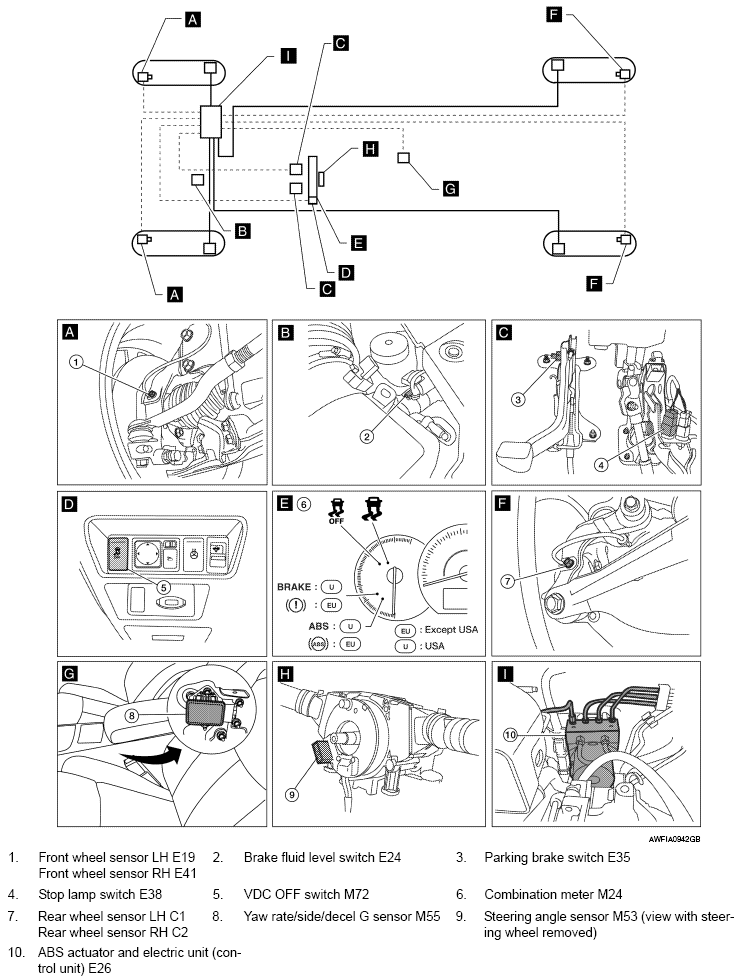

Fig 1: TCS Components Location

G08909528

Courtesy of NISSAN NORTH AMERICA, INC.
