Nissan-Datsun
>>
2013
>>
NV200 SV
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Removal And Installation
>>
Wheel Sensor
>>
Exploded View - Rear Wheel Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

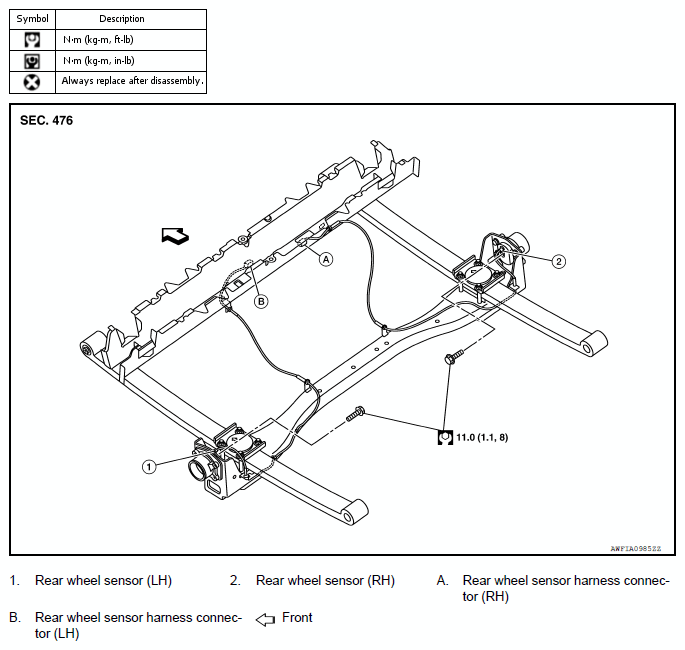

Exploded View - Rear Wheel Sensor
Fig 1: Exploded View Of Rear Wheel Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
