Exploded View - Rear Wheel Sensor

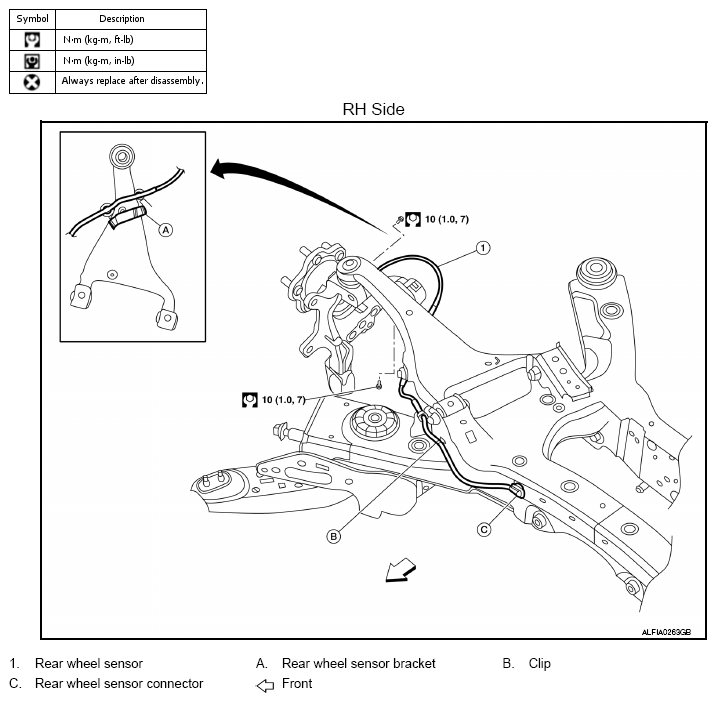

Fig 1: Exploded View Of Rear Wheel Sensor (RH Side) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

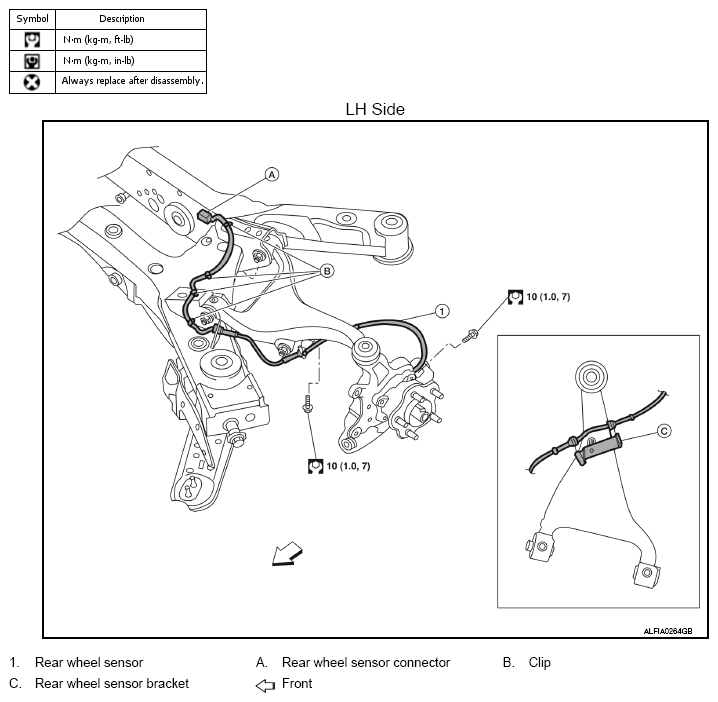

Fig 2: Exploded View Of Rear Wheel Sensor (LH Side) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
