Exploded View

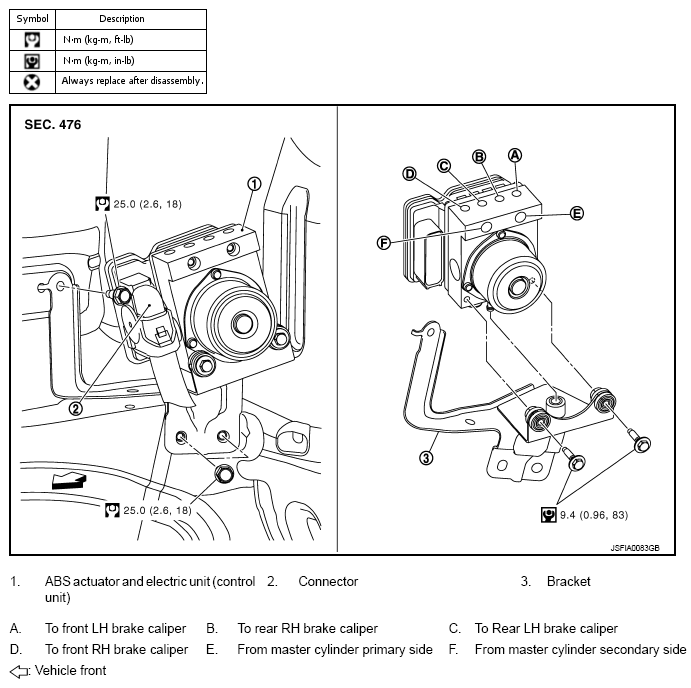

Fig 1: Exploded View ABS Actuator And Electric Unit With Torque Specifications
G08987827Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
