Exploded View

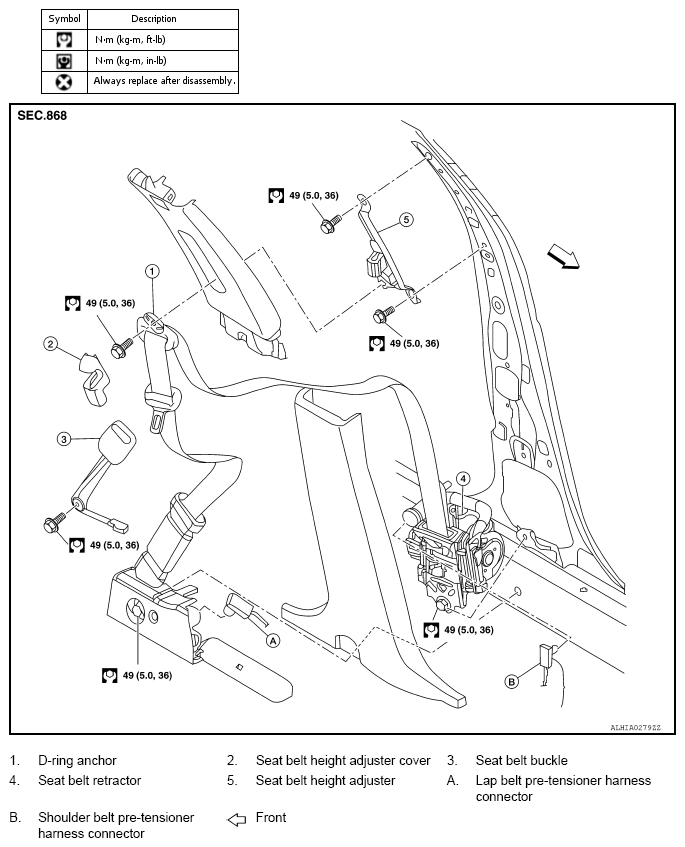

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications
G08990252Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: LH side shown; RH side similar.
