Exploded View

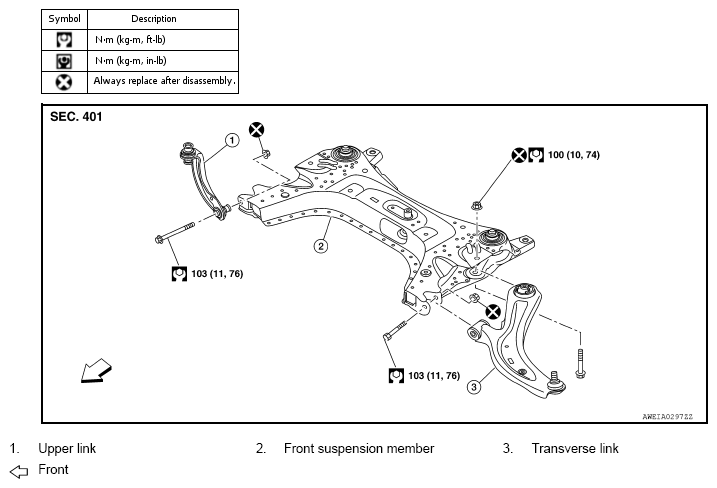

Fig 1: Front Suspension Member, Upper And Transverse Link With Torque Specifications
G08989964Courtesy of NISSAN NORTH AMERICA, INC.
