Exploded View

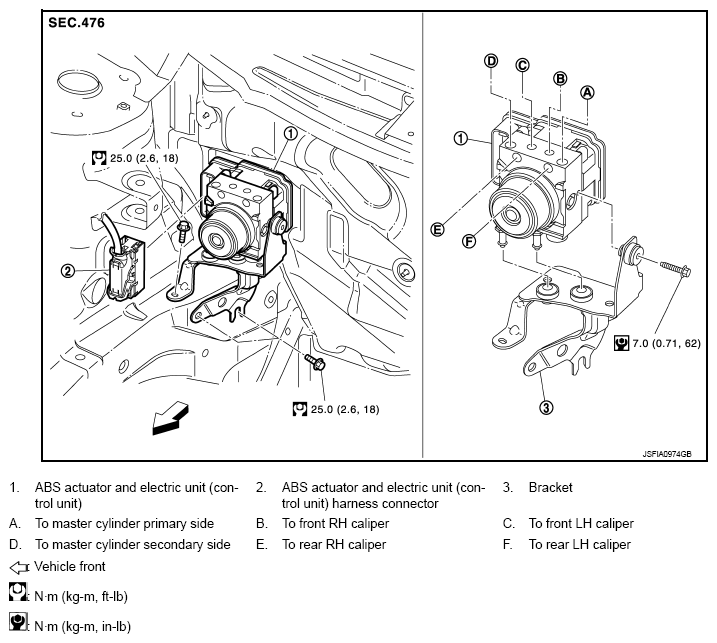

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
G09583581Courtesy of NISSAN NORTH AMERICA, INC.
