Home
>>
Nissan-Datsun
>>
2014
>>
Quest SL
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Removal And Installation
>>
Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

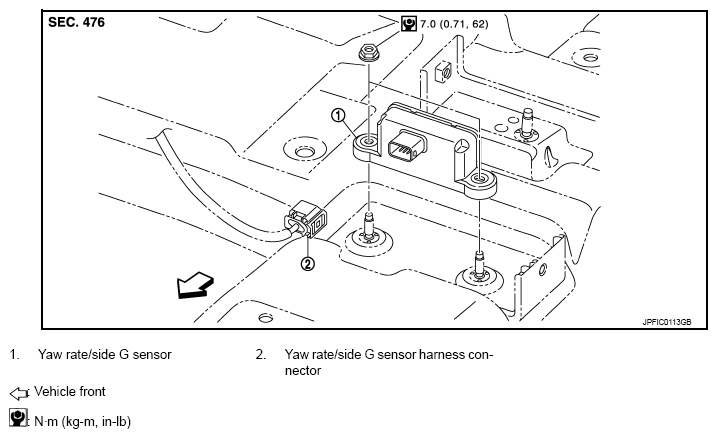

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
