Exploded View

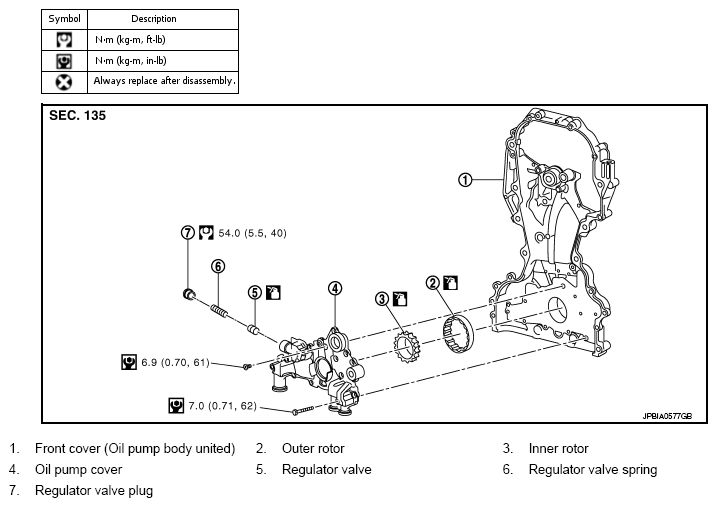

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G09155457Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Before assembly, apply new engine oil to the parts as shown above.
