Exploded View

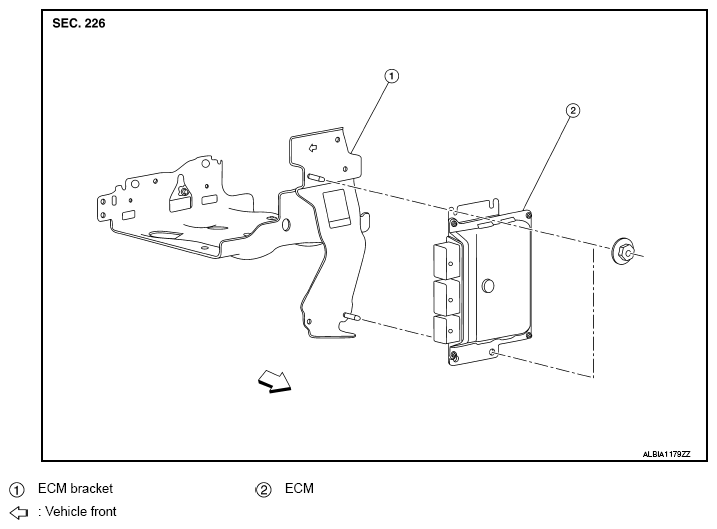

Fig 1: Exploded View Of ECM
G09155765Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to "WORK PROCEDURE ".
