Adapter Case: Disassembly

  1. Remove adapter case mounting bolts (<==).

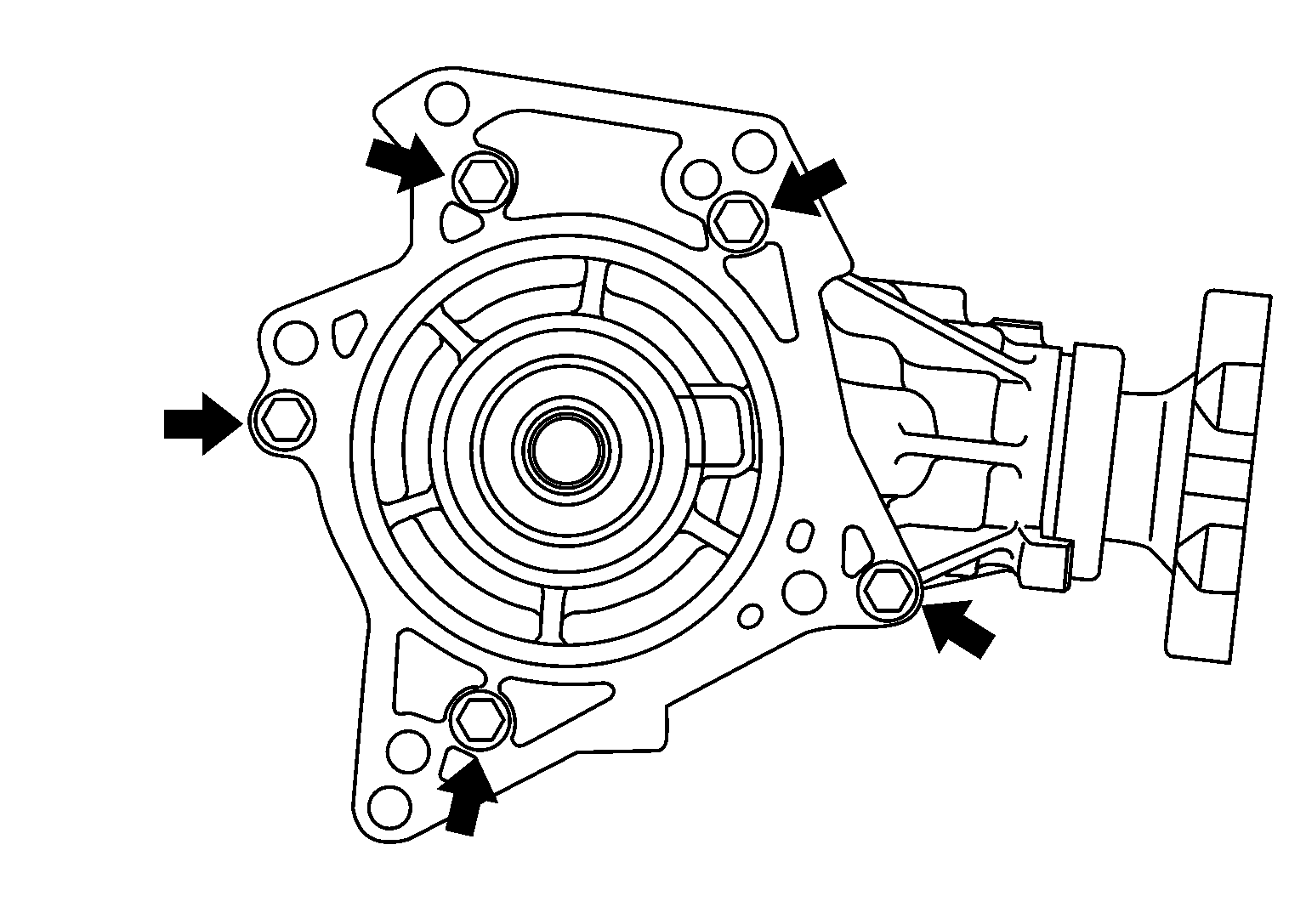

    Fig 1: Locating Adapter Case Mounting Bolts
    G05370168Courtesy of NISSAN NORTH AMERICA, INC.
  2. Lightly tap adapter case with a plastic hammer to remove adapter case.
  3. Remove O-ring from adapter case.
    CAUTION:
    • Never use a tool.
    • Never damage adapter case.
  4. Lightly tap the metal part of adapter case oil seal with punch from back side of adapter case to remove adapter case oil seal.
    CAUTION: When removing oil seal, never damage adapter case by scooping it out with a tool.

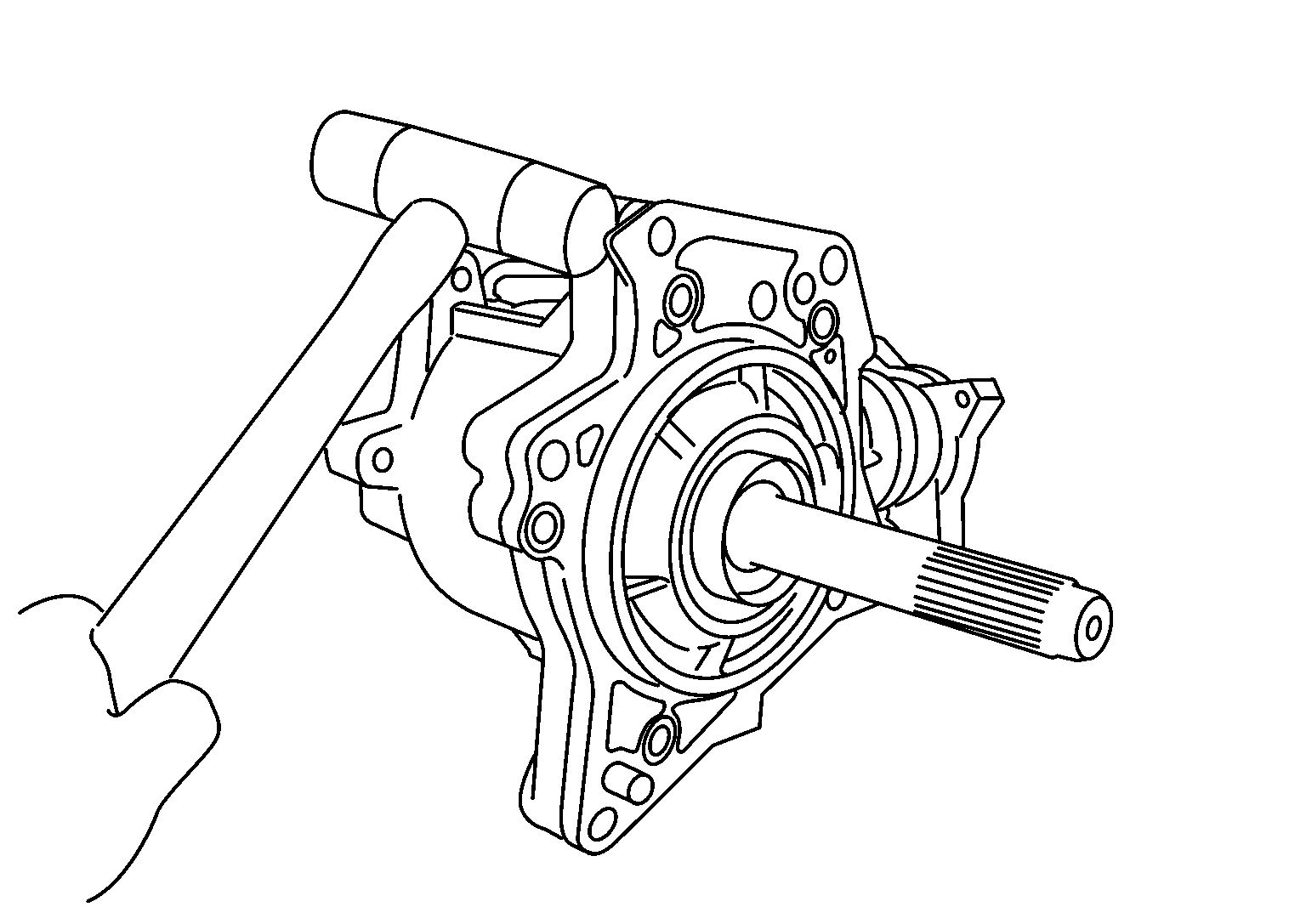

    Fig 2: Removing Adapter Case Using Plastic Hammer
    G05370169Courtesy of NISSAN NORTH AMERICA, INC.
