Connector End Views

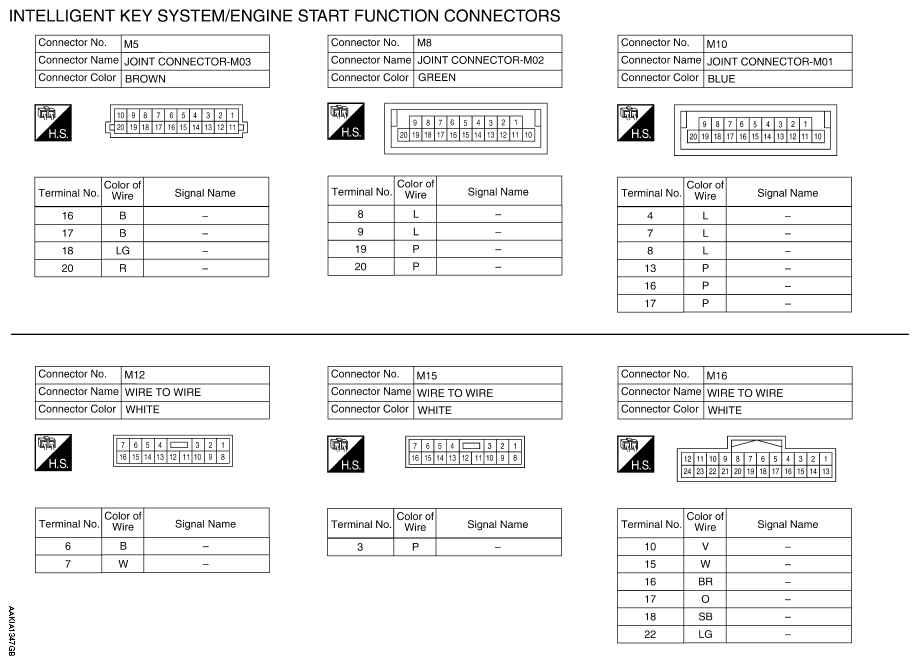

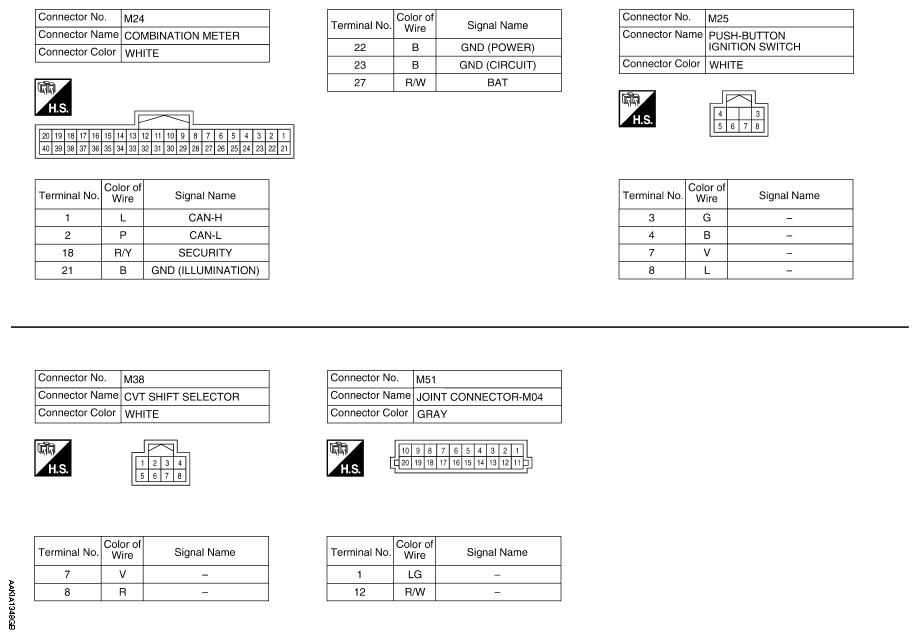

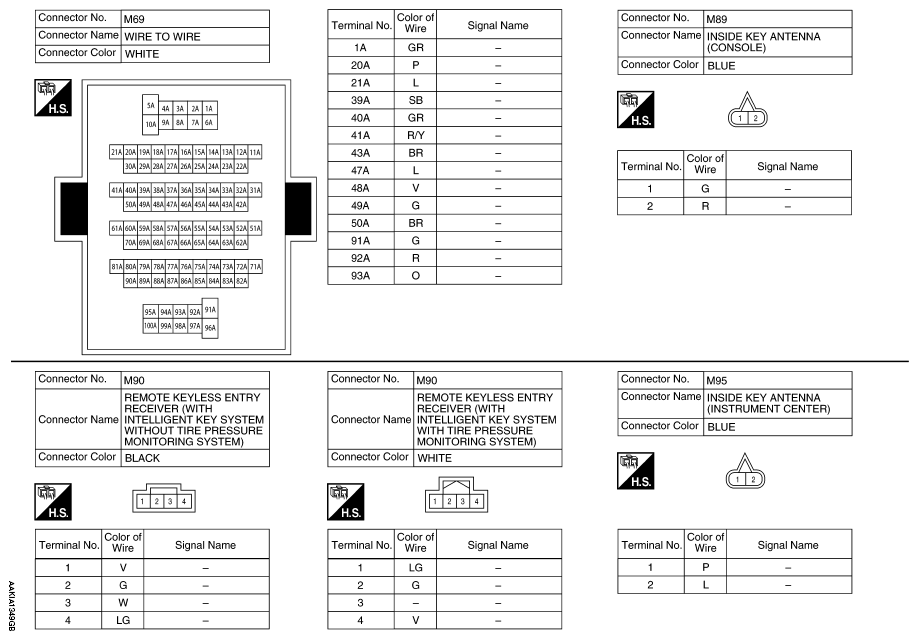

Fig 1: Intelligent Key System/Engine Start Function Connector End View (1 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

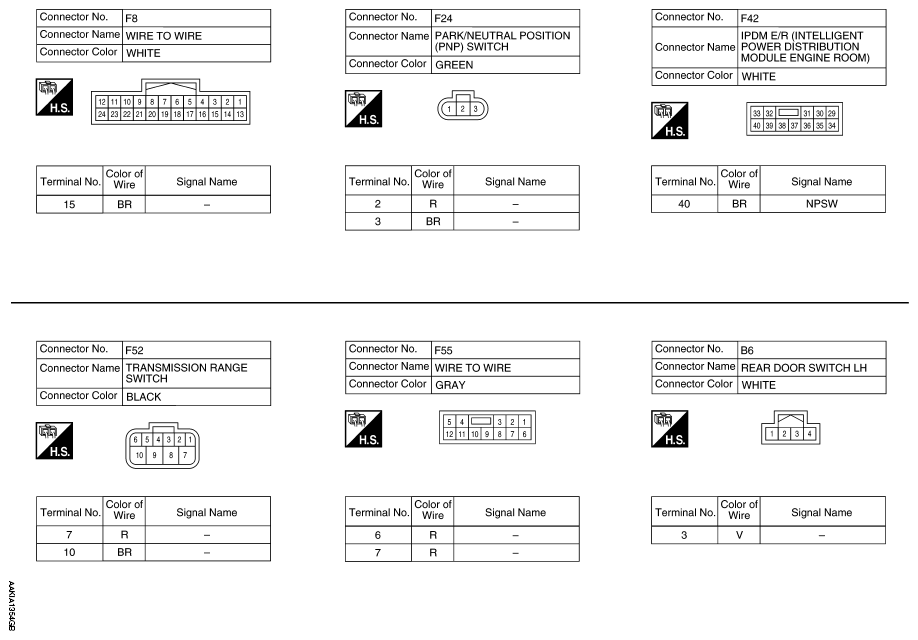

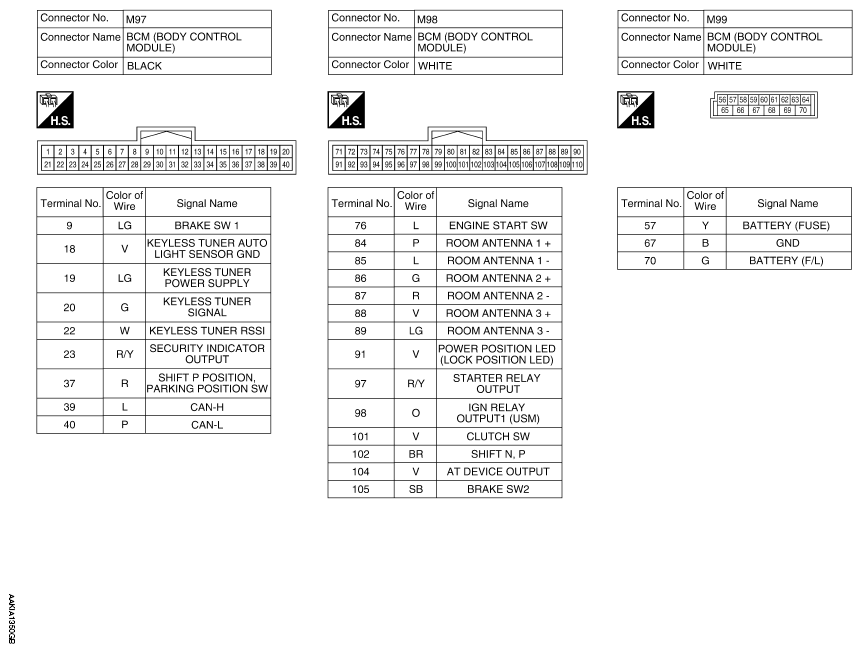

Fig 2: Intelligent Key System/Engine Start Function Connector End View (2 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

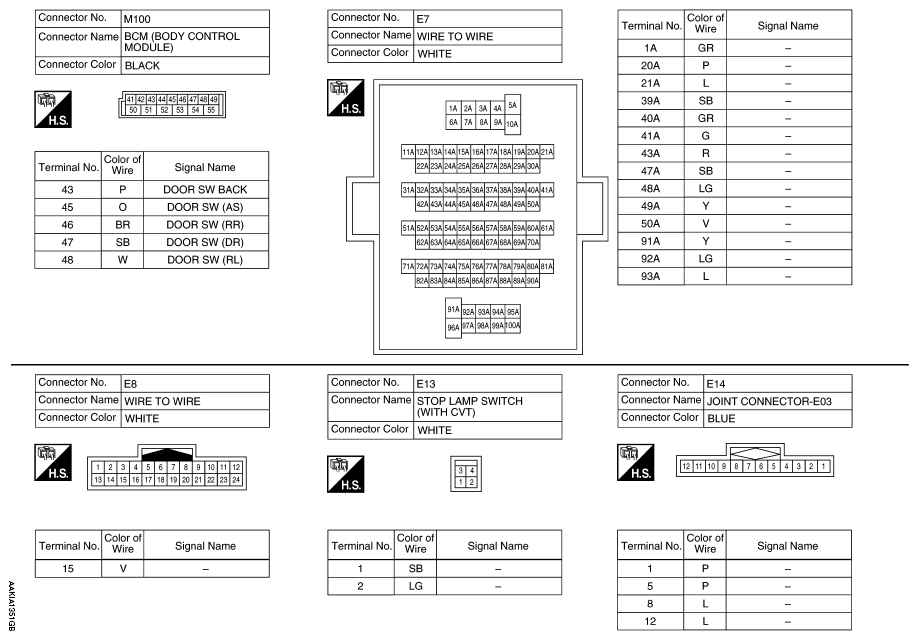

Fig 3: Intelligent Key System/Engine Start Function Connector End View (3 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

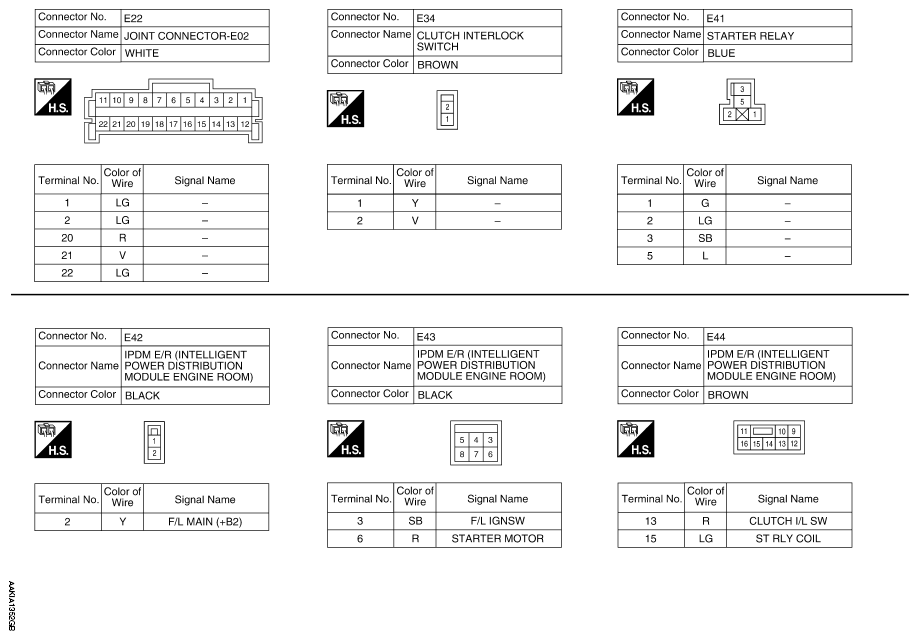

Fig 4: Intelligent Key System/Engine Start Function Connector End View (4 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

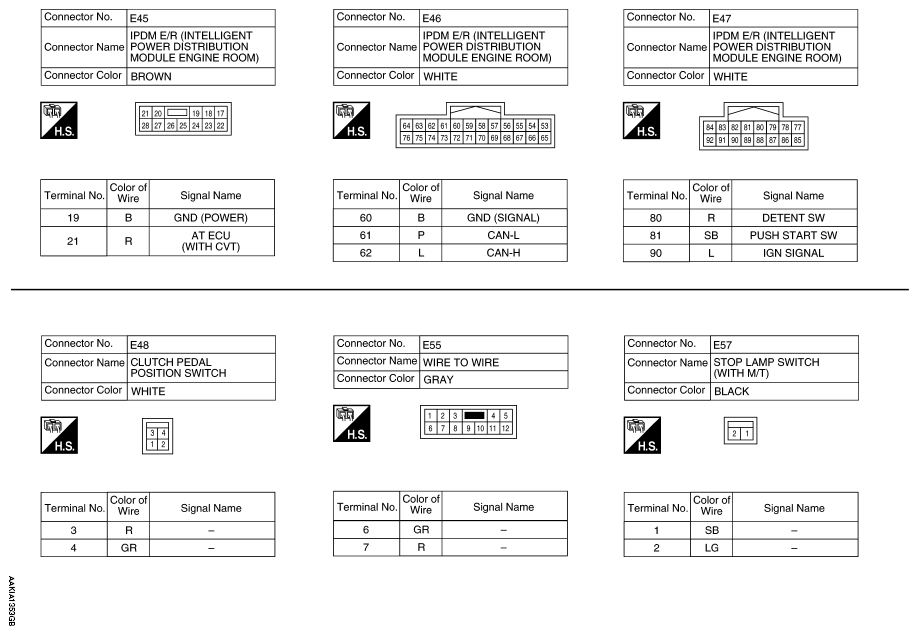

Fig 5: Intelligent Key System/Engine Start Function Connector End View (5 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Intelligent Key System/Engine Start Function Connector End View (6 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

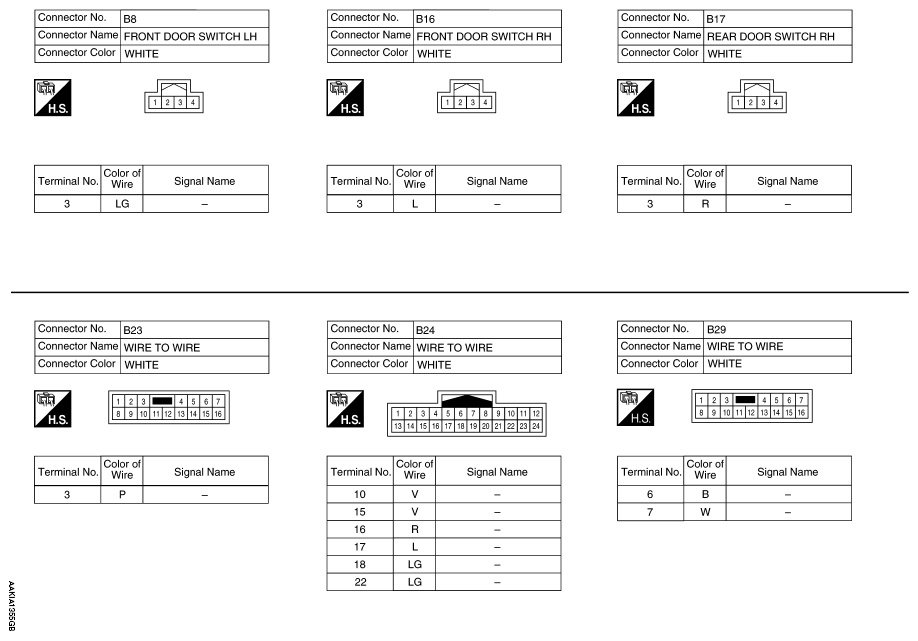

Fig 7: Intelligent Key System/Engine Start Function Connector End View (7 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.

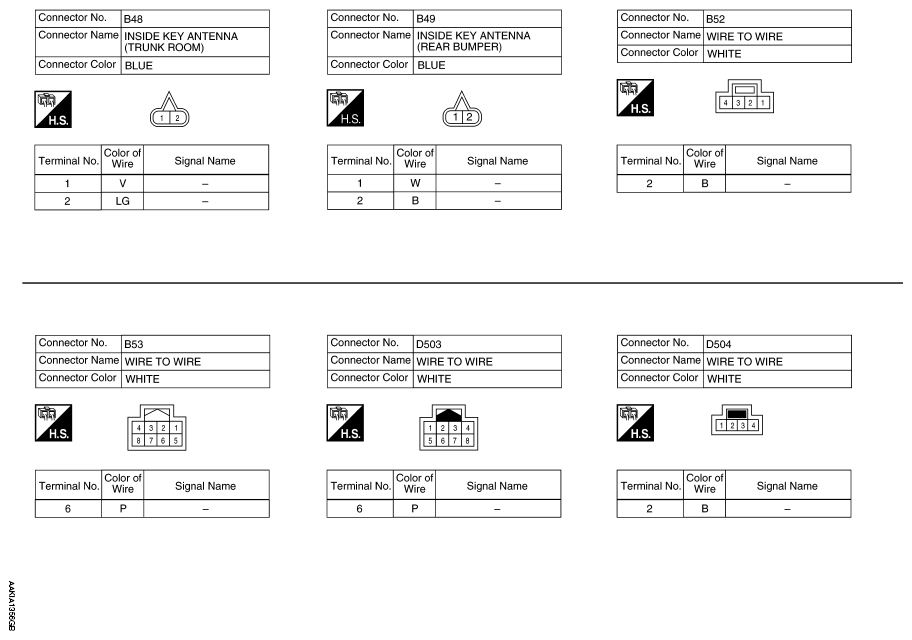

Fig 8: Intelligent Key System/Engine Start Function Connector End View (8 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Intelligent Key System/Engine Start Function Connector End View (9 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Intelligent Key System/Engine Start Function Connector End View (10 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Intelligent Key System/Engine Start Function Connector End View (11 Of 11)
Courtesy of NISSAN NORTH AMERICA, INC.
