Terminal Layout

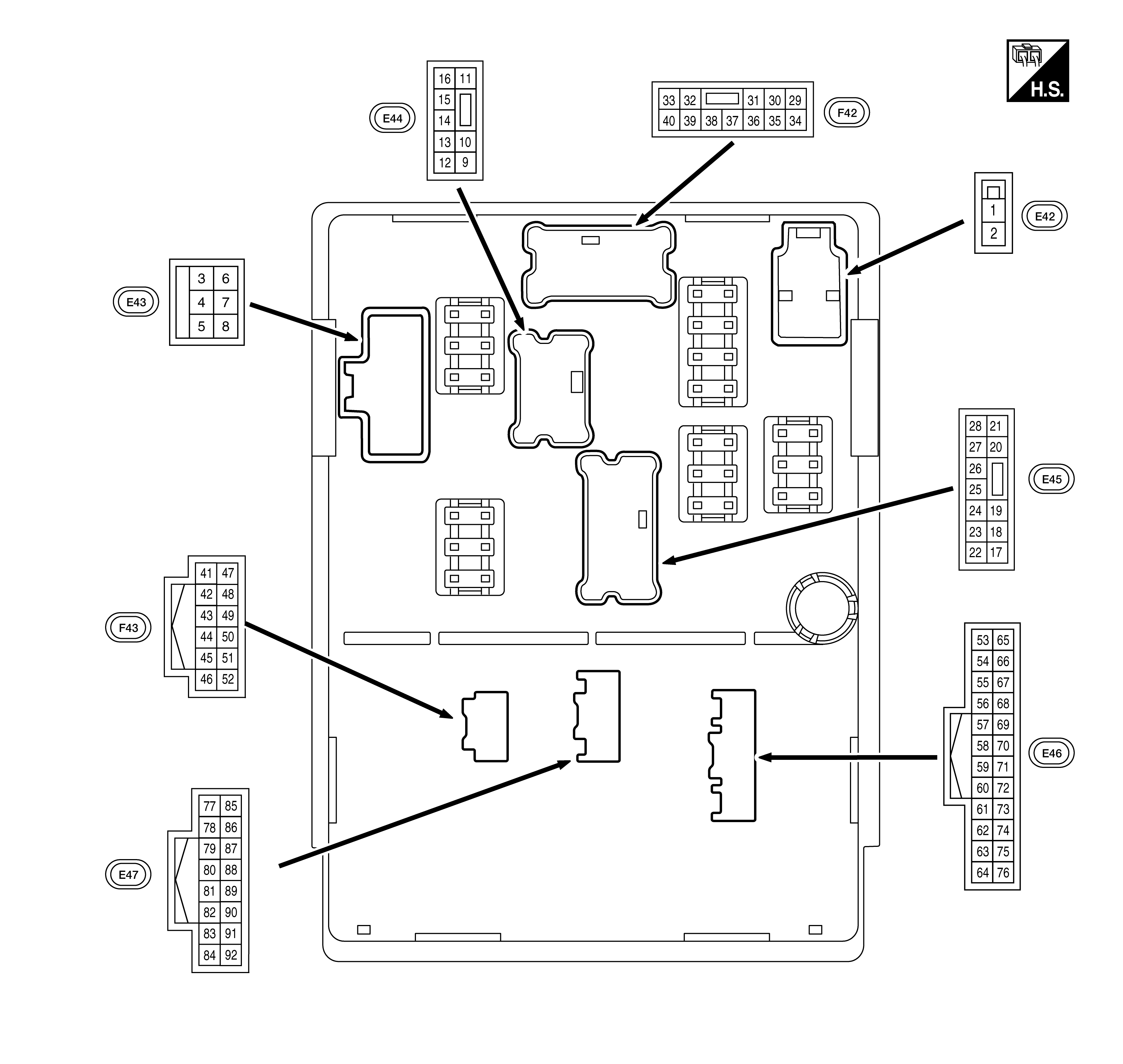

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views
G09052712Courtesy of NISSAN NORTH AMERICA, INC.
