Occupant Classification System Sensor (Front Inner) Connector End View (B352)

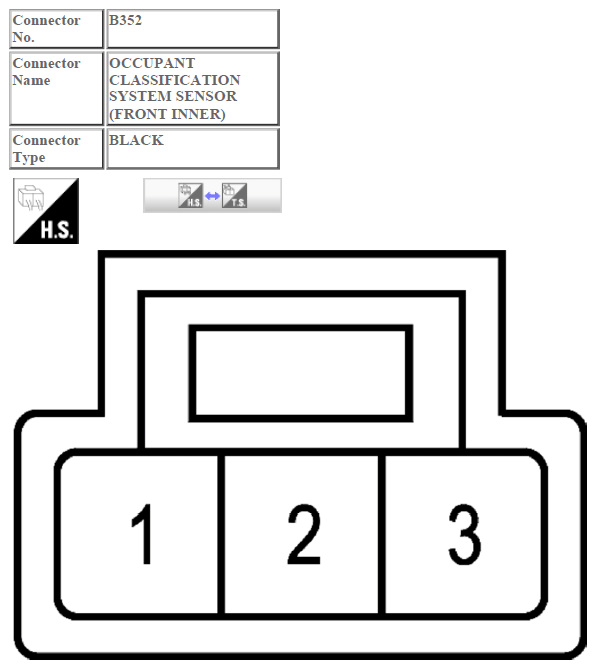

Fig 1: Occupant Classification System Sensor (Front Inner) Connector End View (B352)
Courtesy of NISSAN NORTH AMERICA, INC.
