System Description: Display: Notes

The around view monitor combines and displays travel direction view (front or rear), front-side view and birds-eye view.

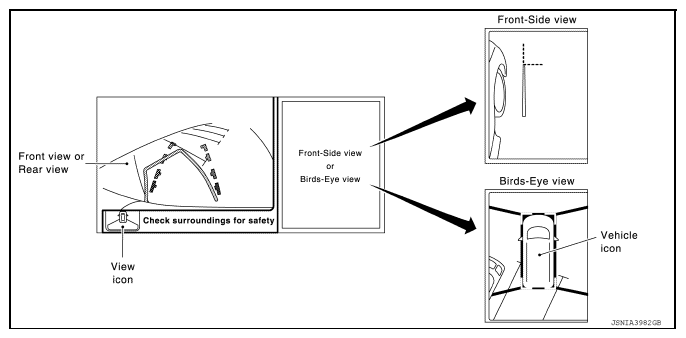

Fig 1: Identifying Vehicle Travel Direction View

Courtesy of NISSAN NORTH AMERICA, INC.
