Wiring Diagram - Intelligent Key System/Engine Start Function

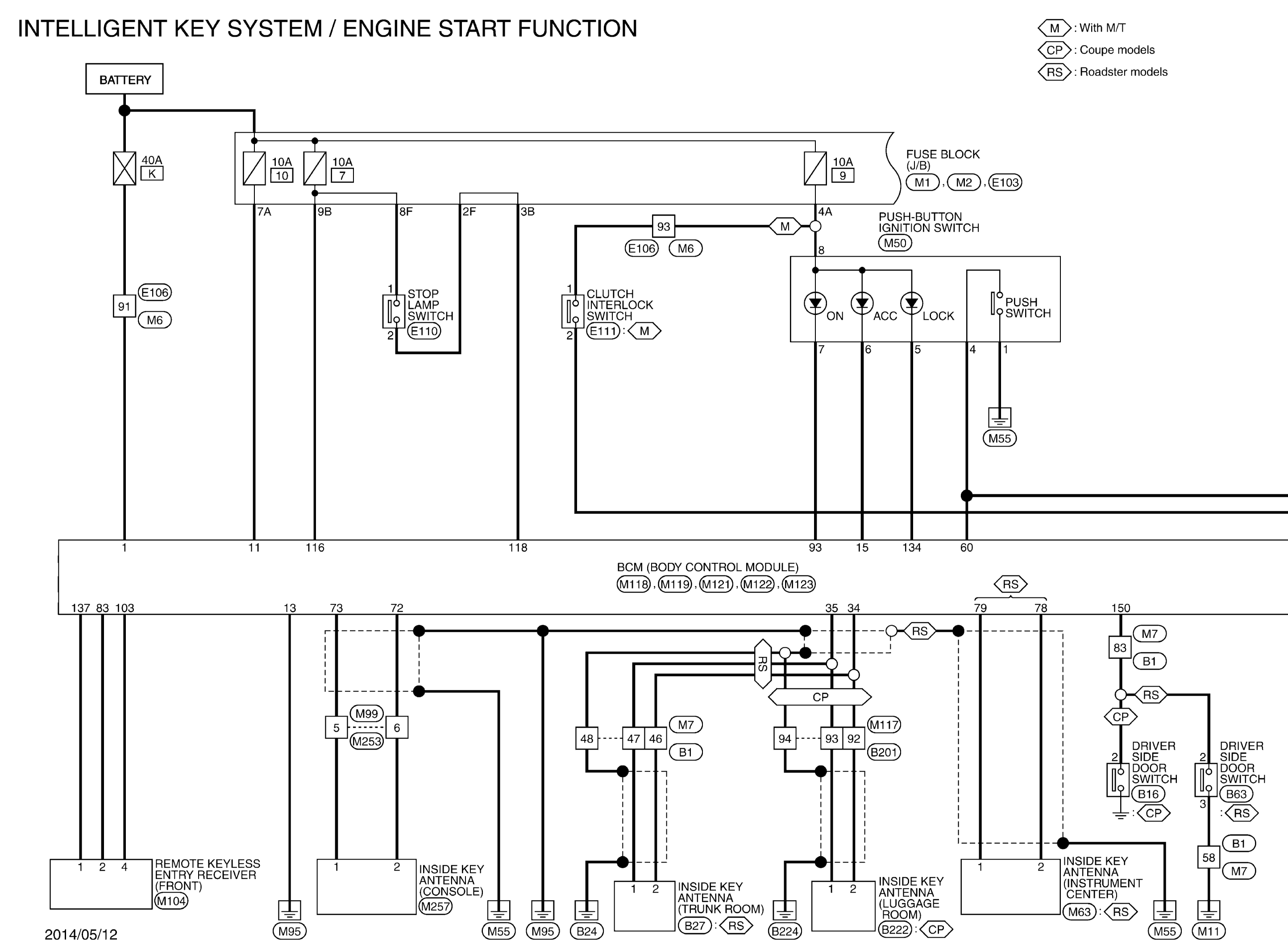

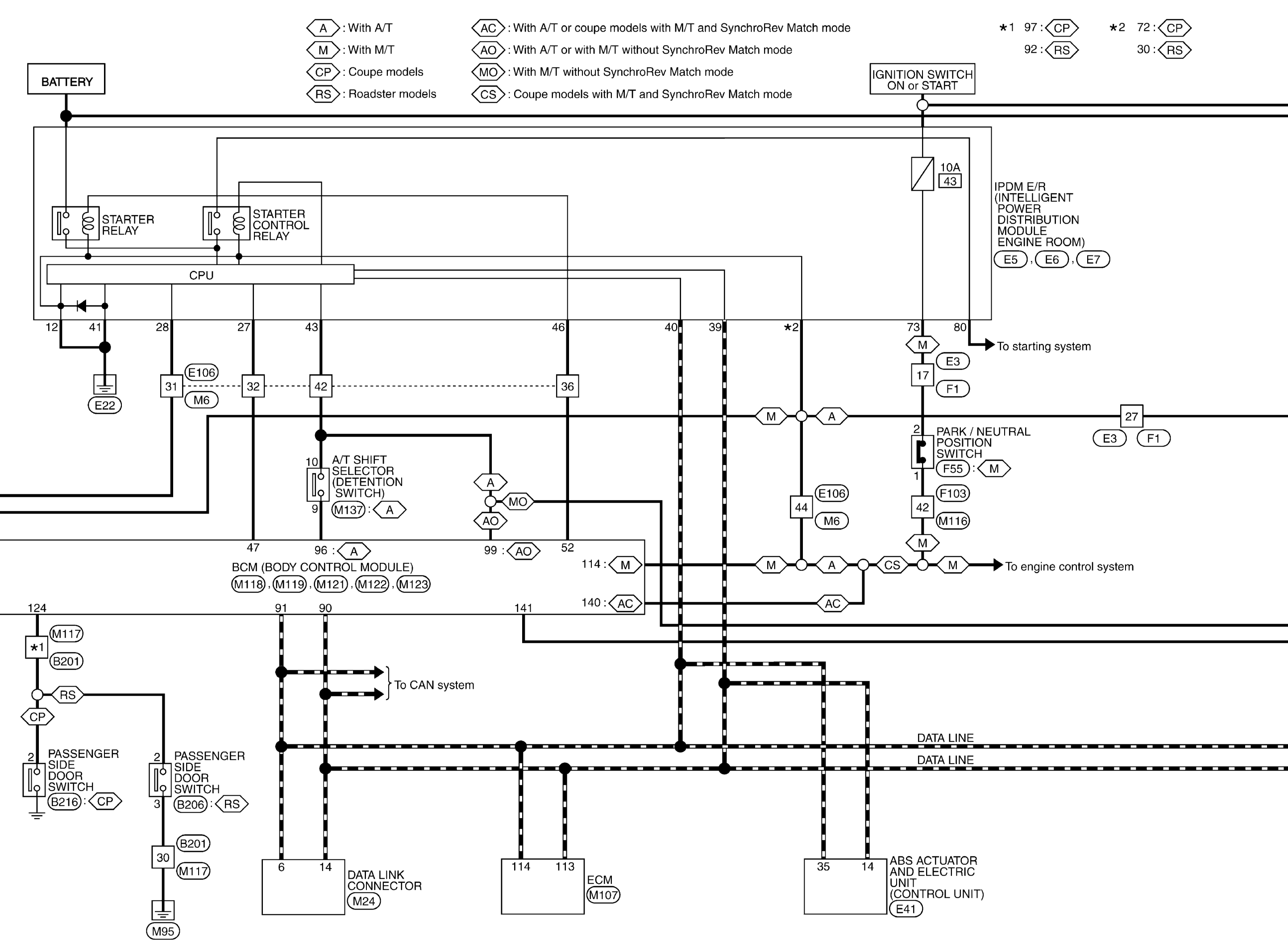

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

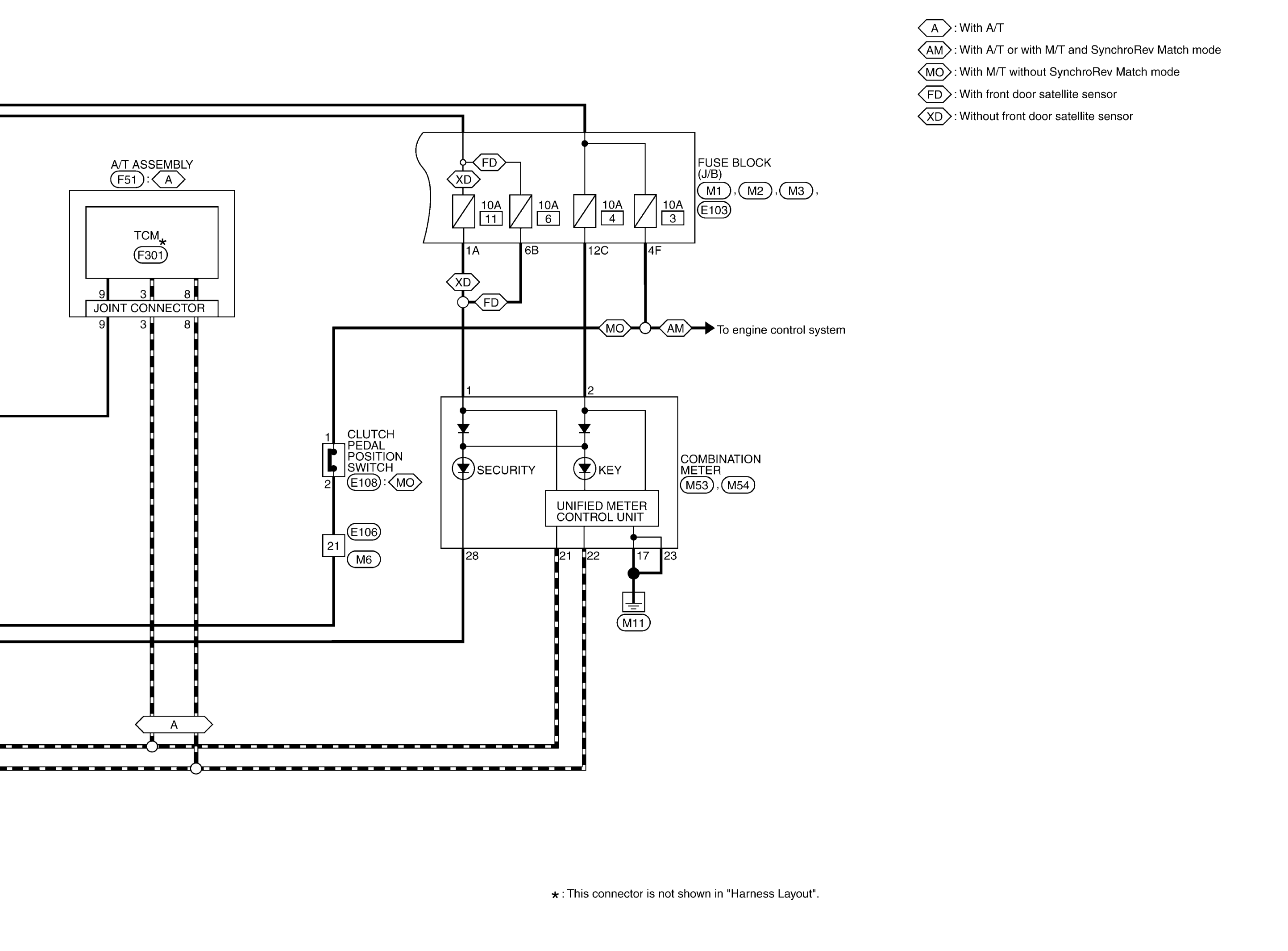

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

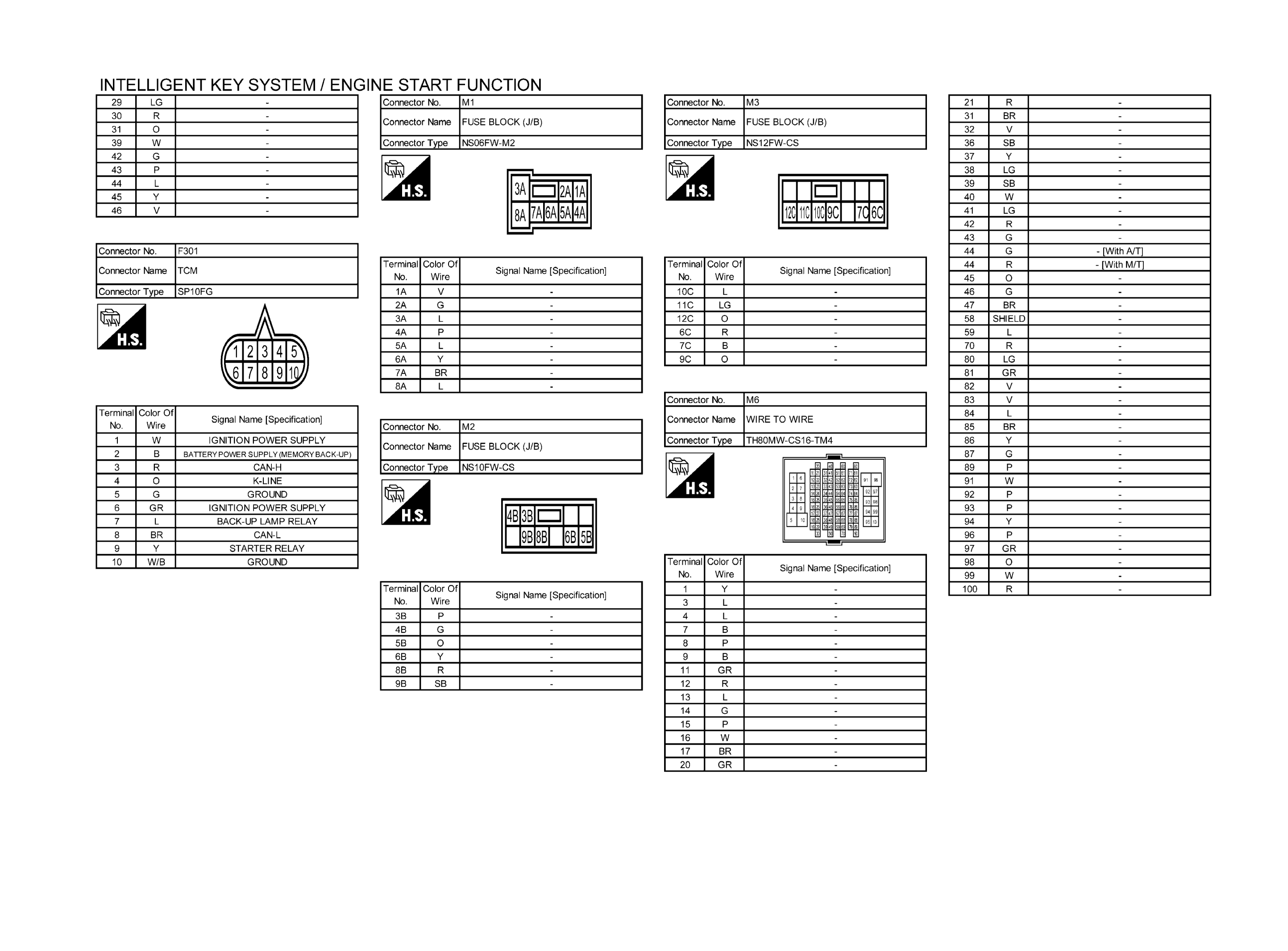

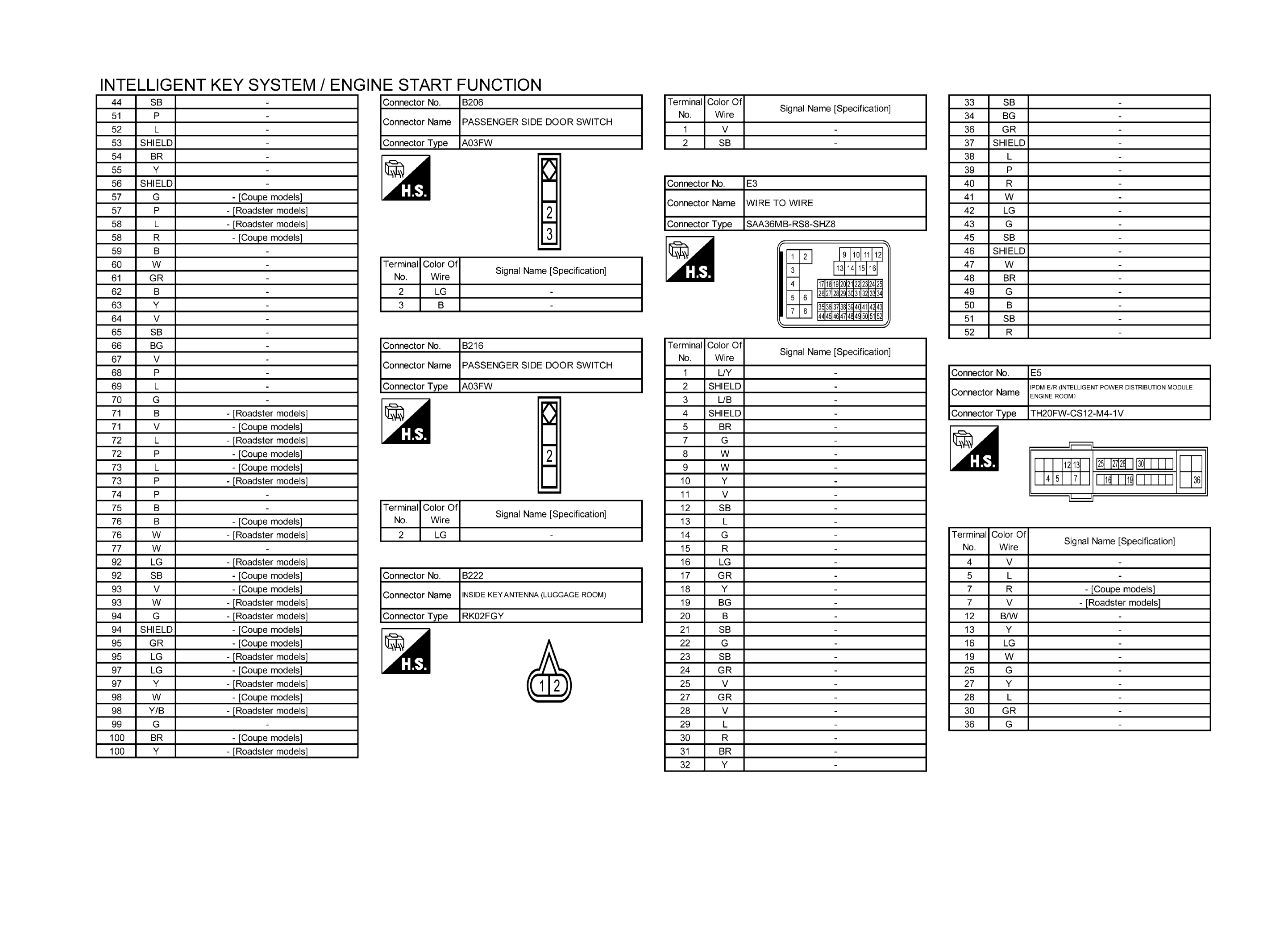

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

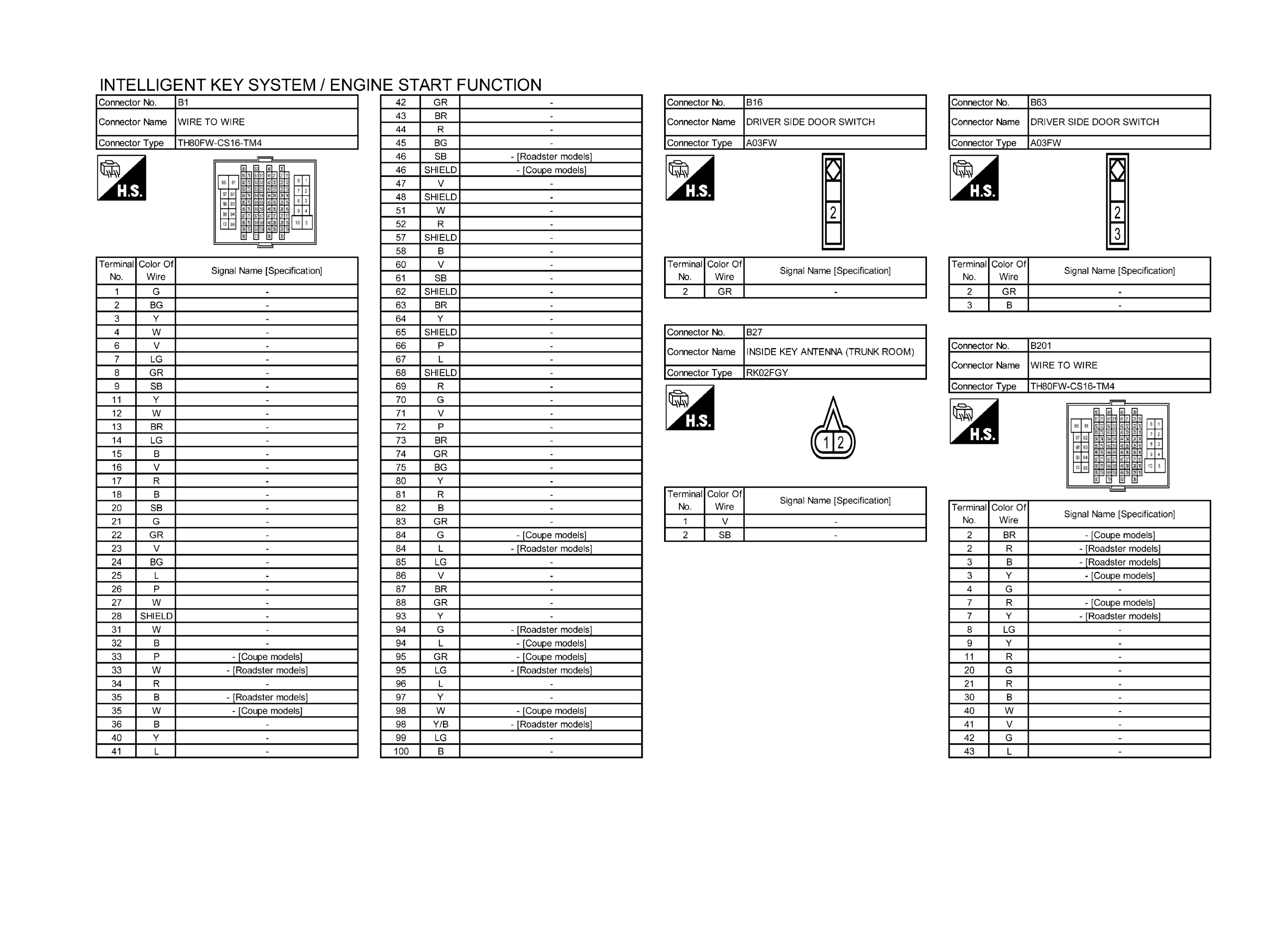

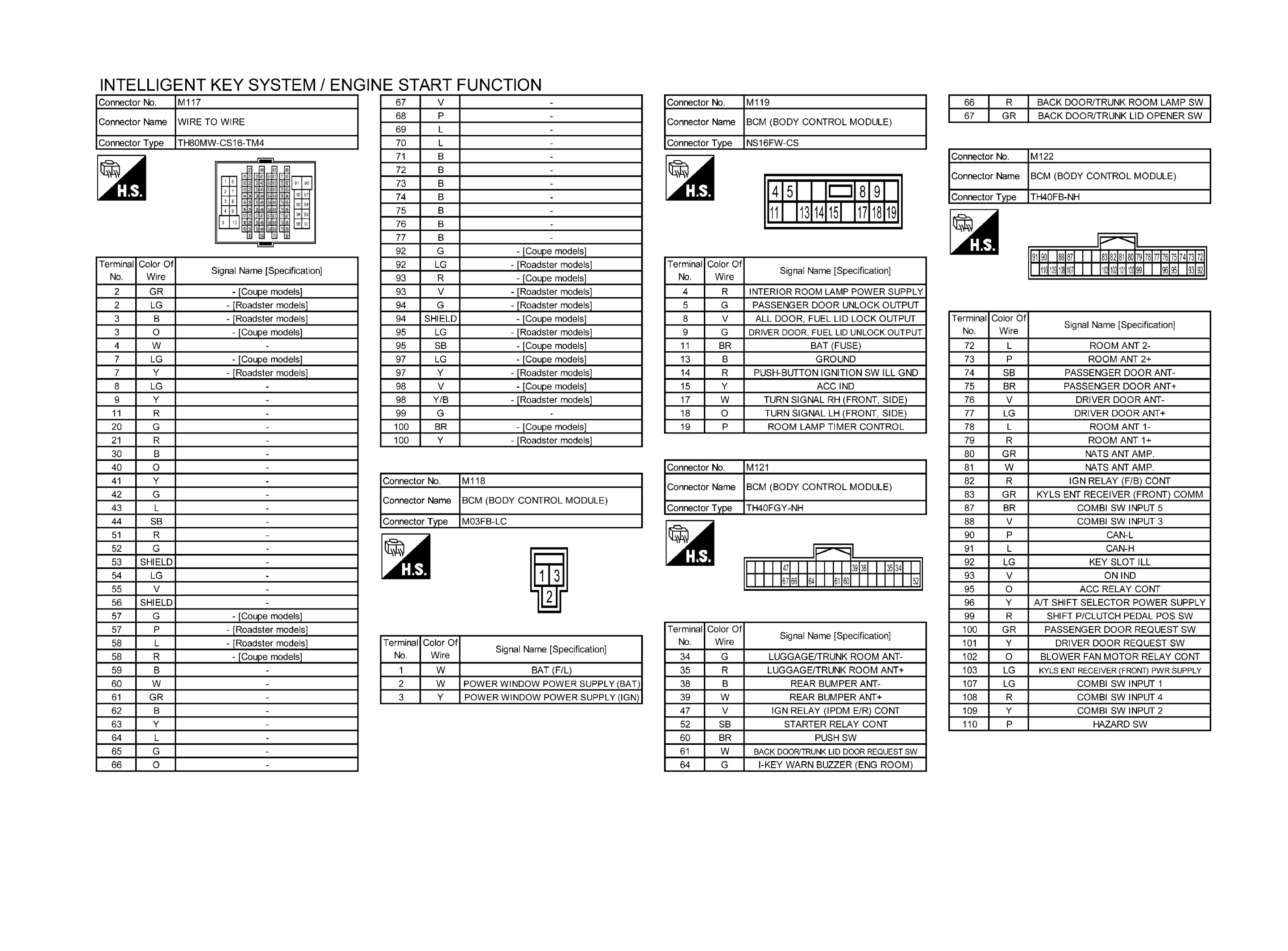

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

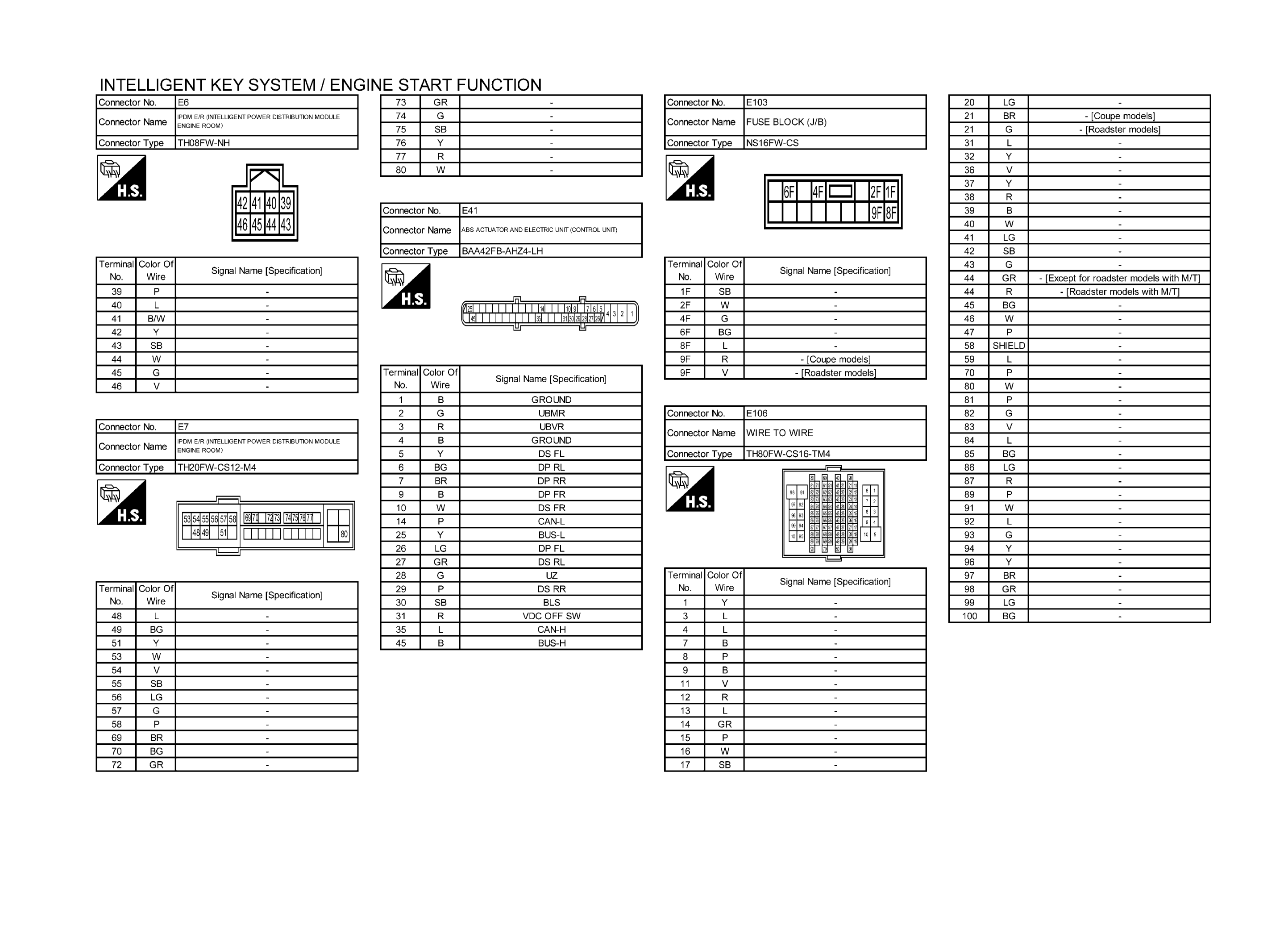

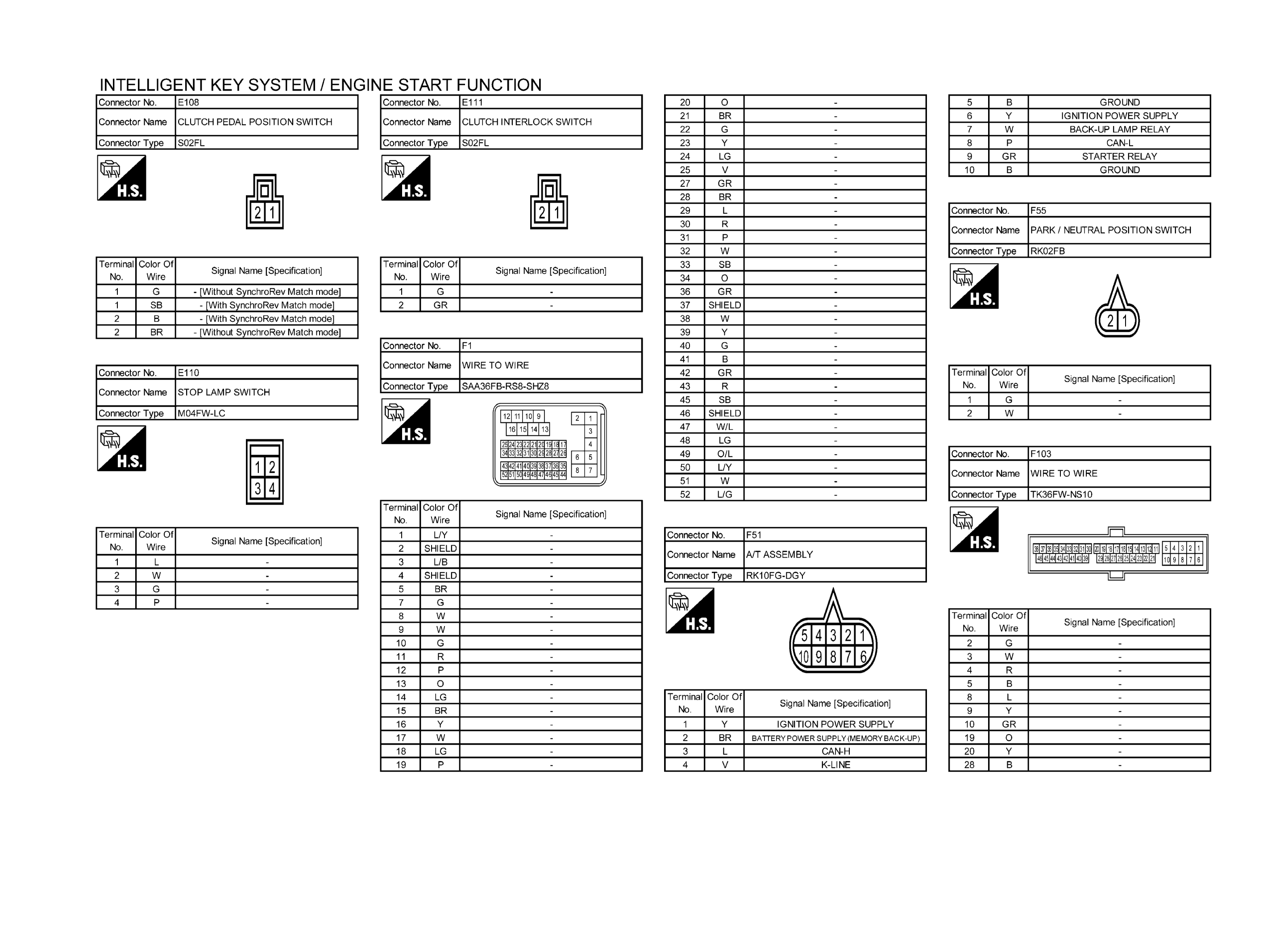

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

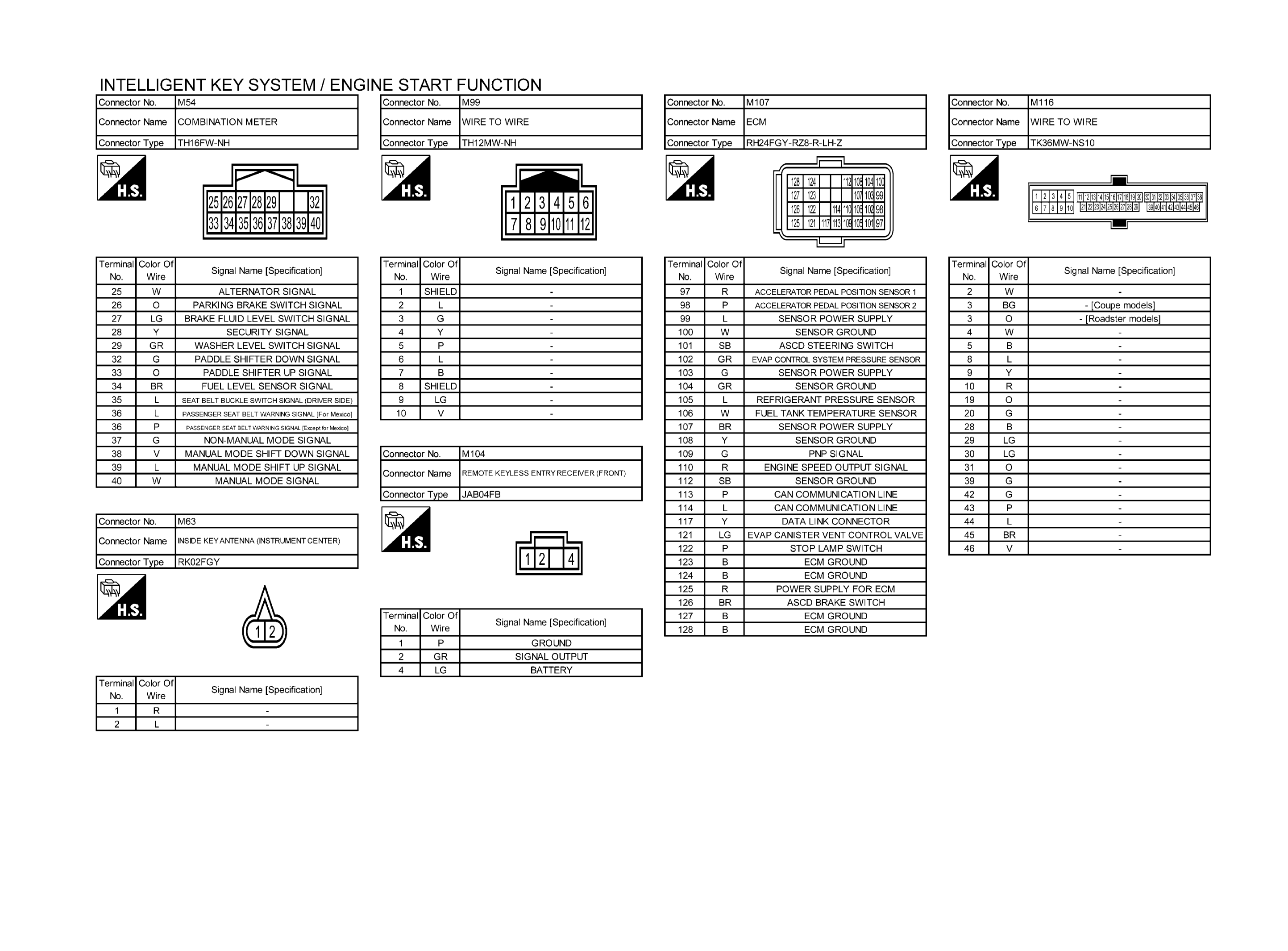

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

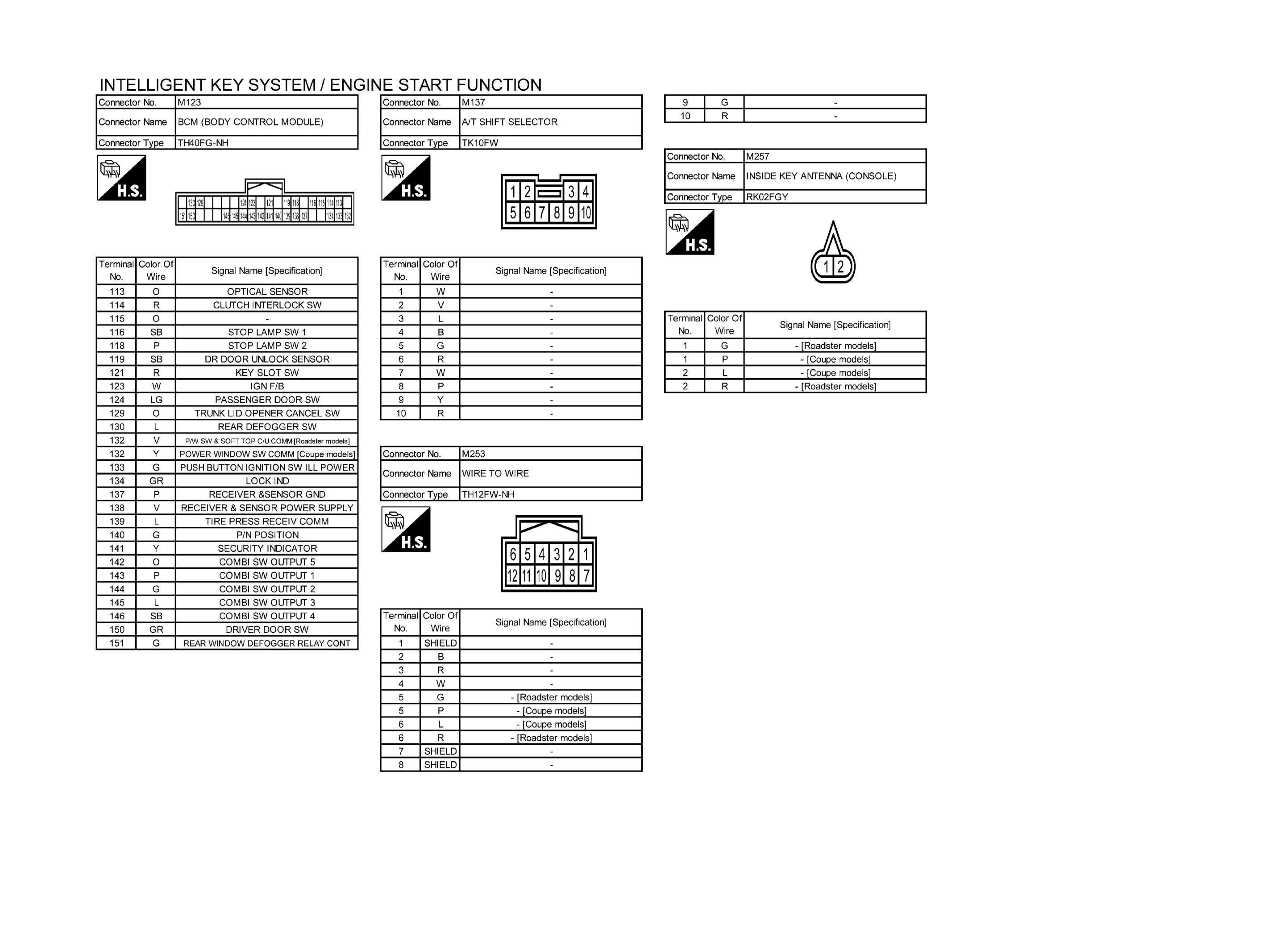

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

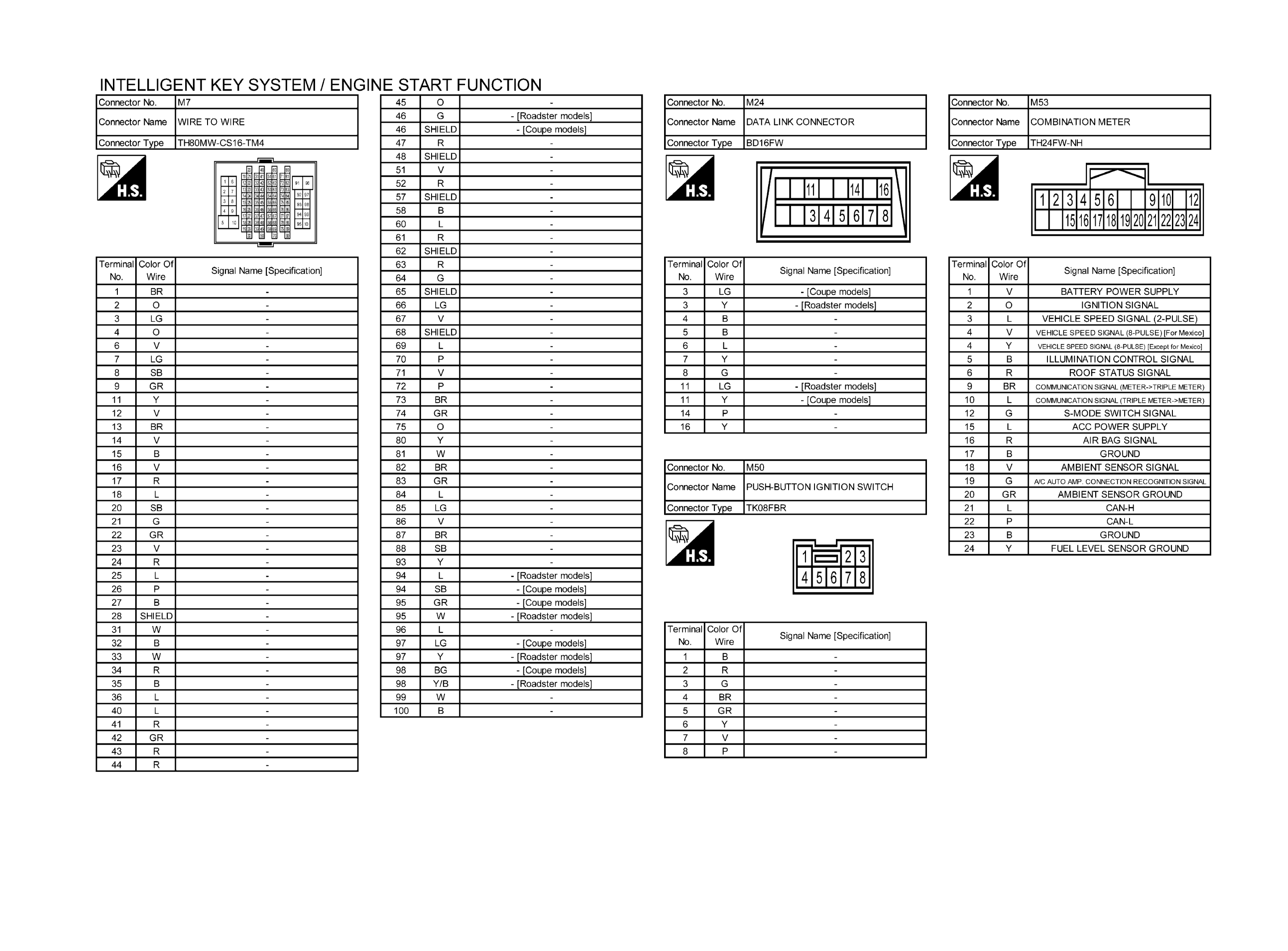

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intelligent Key System/Engine Start Function Connector End Views (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intelligent Key System/Engine Start Function Connector End Views (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intelligent Key System/Engine Start Function Connector End Views (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
