Vehicle Security System Connector End Views

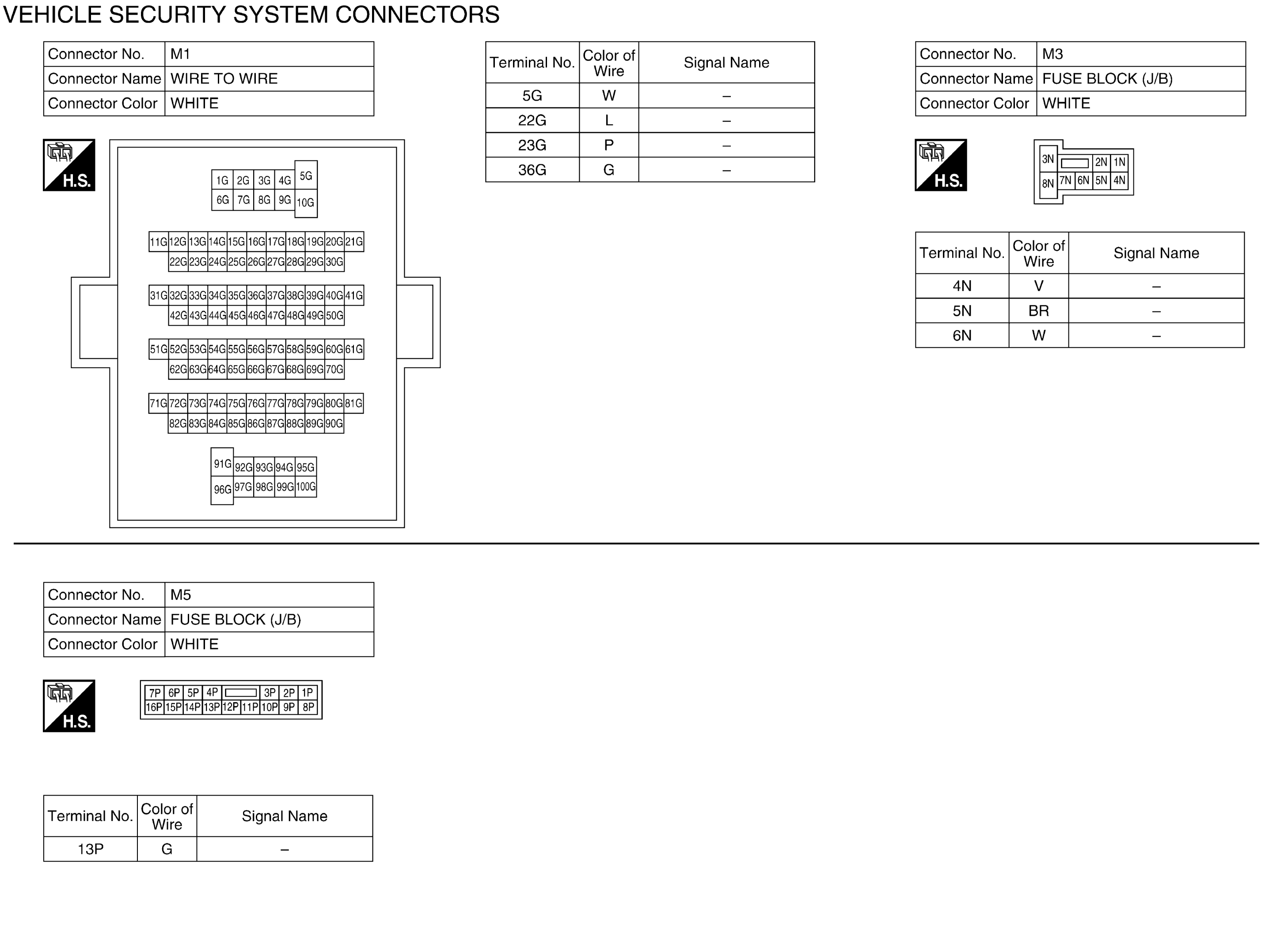

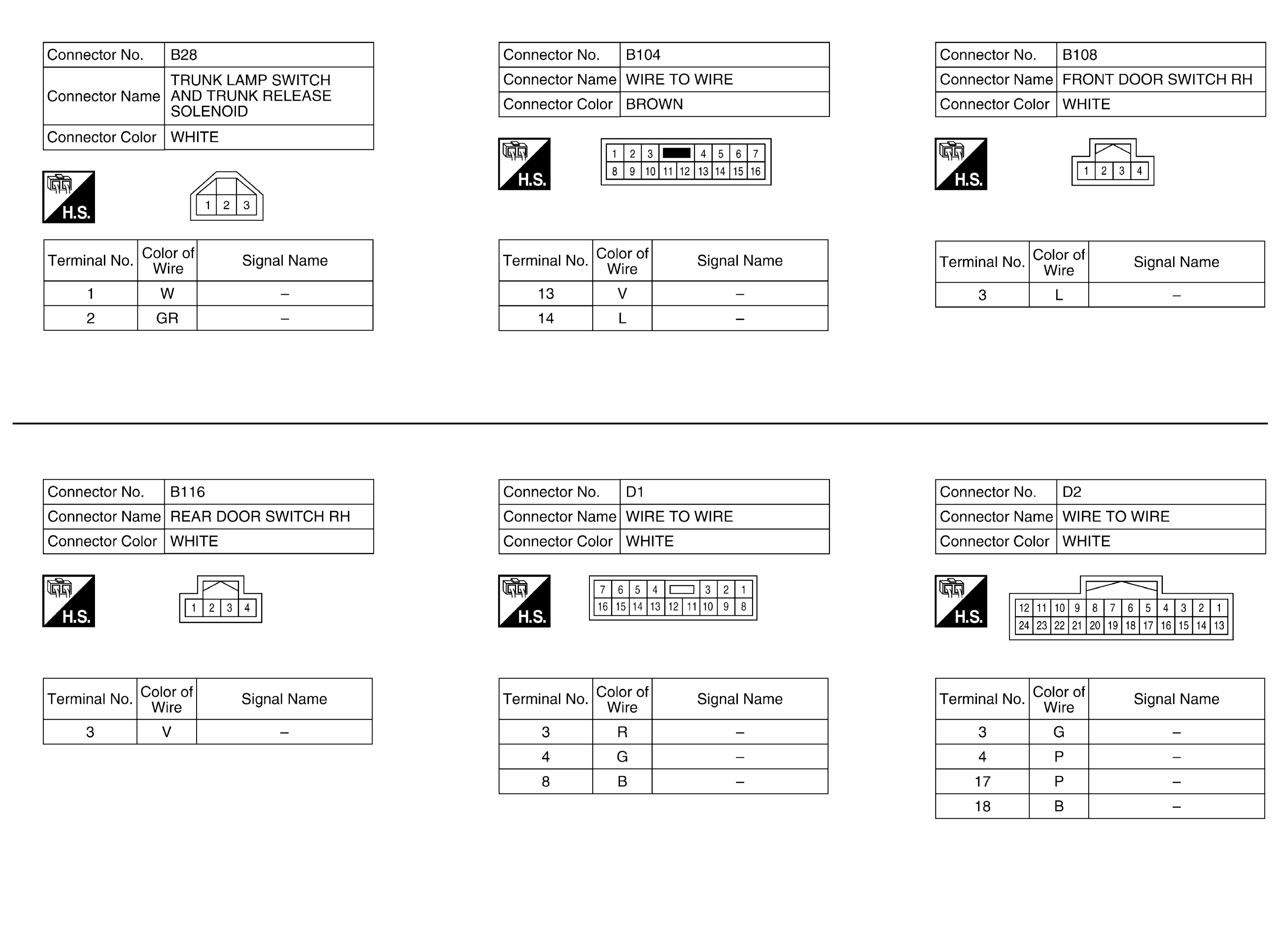

Fig 1: Vehicle Security System Connector End Views (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

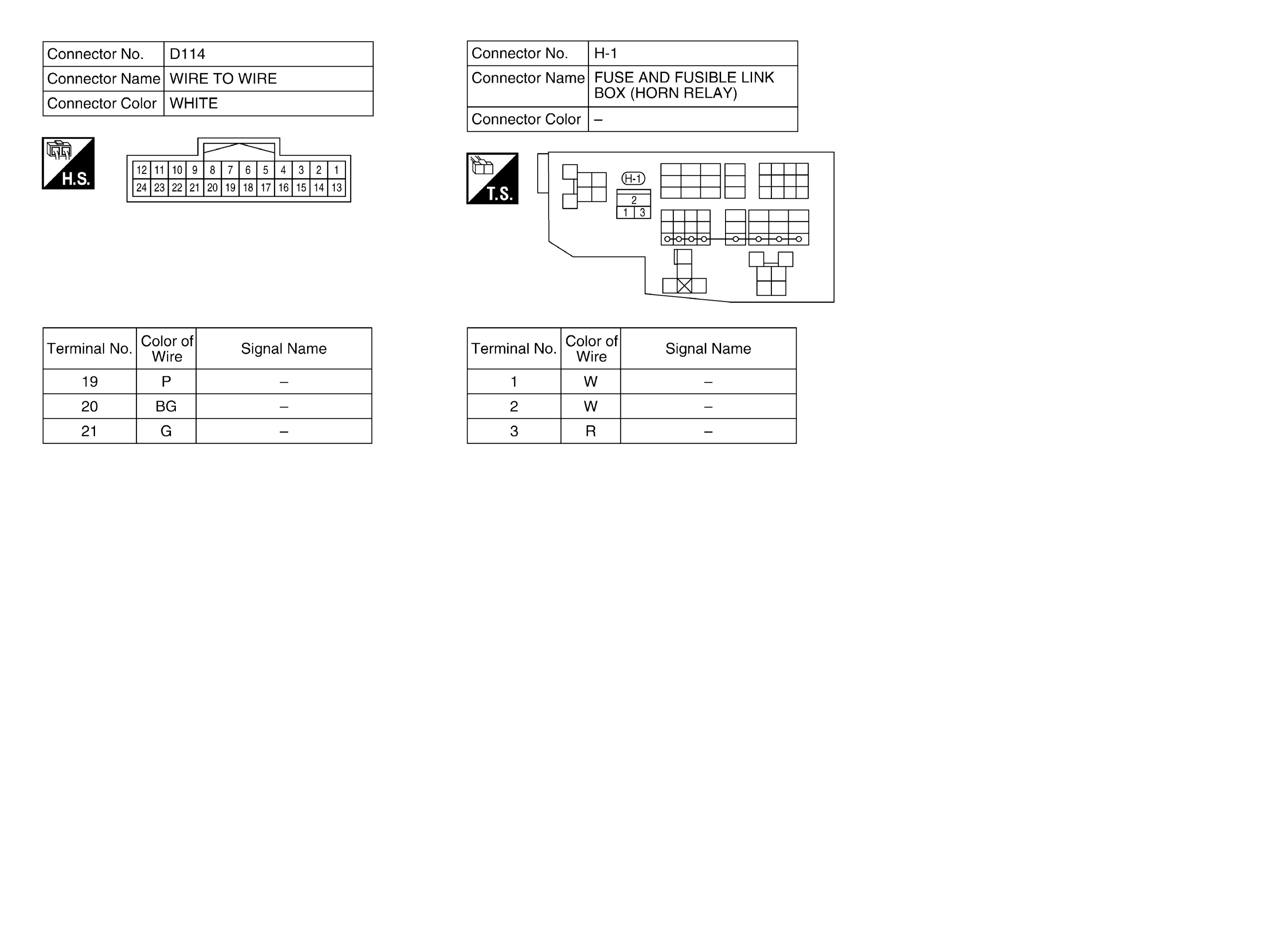

Fig 2: Vehicle Security System Connector End Views (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Vehicle Security System Connector End Views (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Vehicle Security System Connector End Views (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Vehicle Security System Connector End Views (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Vehicle Security System Connector End Views (16 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Vehicle Security System Connector End Views (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Vehicle Security System Connector End Views (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Vehicle Security System Connector End Views (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Vehicle Security System Connector End Views (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
