Exploded View With Torque Specifications

MANUAL ANTI-DAZZLING

Fig 1: Exploded View Of Manual Anti-Dazzling Inside Mirror
GNSAWLIA2177ZZ-177Courtesy of NISSAN NORTH AMERICA, INC.
1. Windshield glass 2. Mirror base 3. Inside mirror

AUTO ANTI-DAZZLING

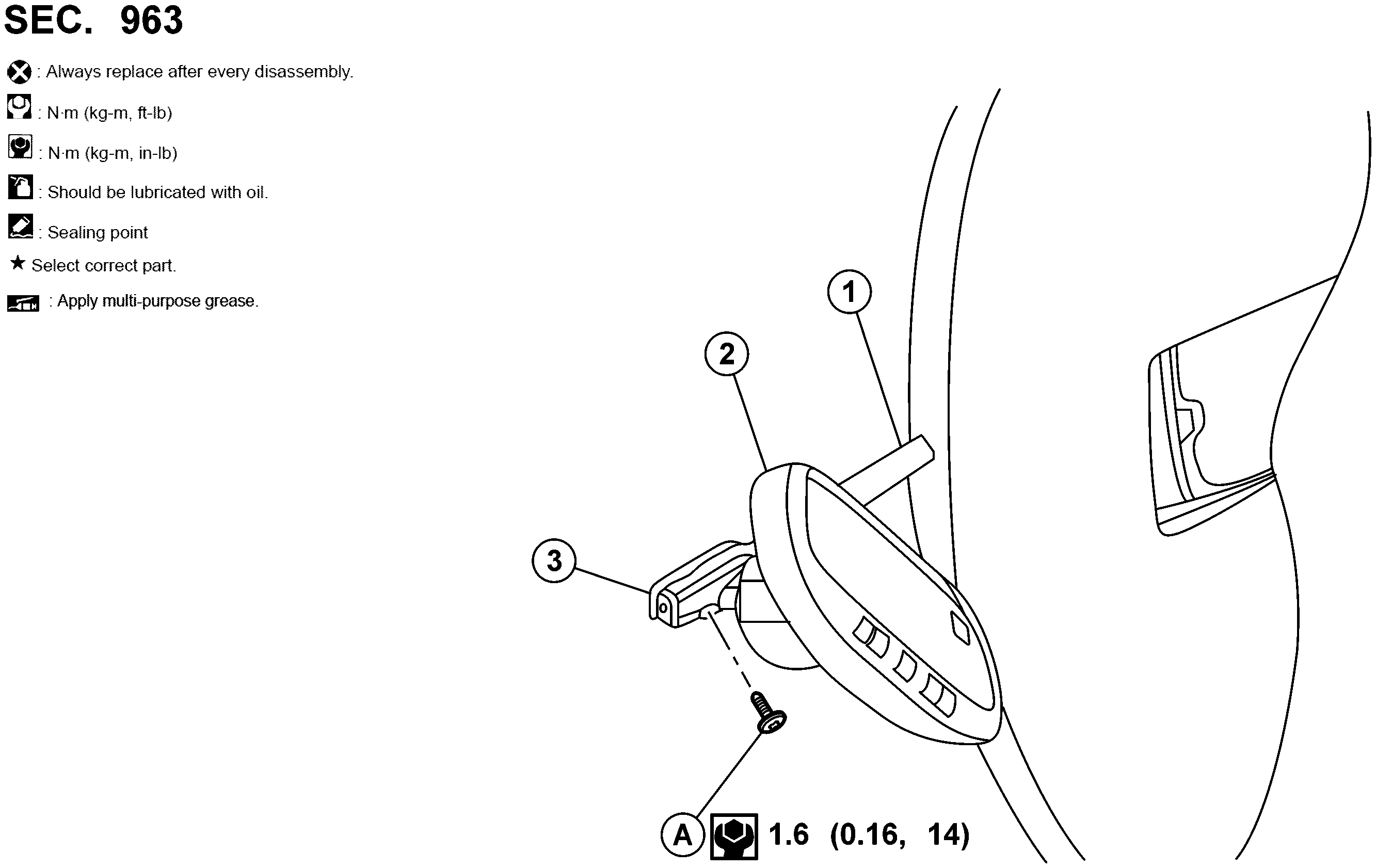

Fig 2: Exploded View Of Auto Anti-Dazzling Inside Mirror With Torque Specifications
GNSALLIA1157ZZ-157Courtesy of NISSAN NORTH AMERICA, INC.
1. Inside mirror finisher 2. Inside mirror 3. Mirror base
A. Screw
