Exploded View With Torque Specifications

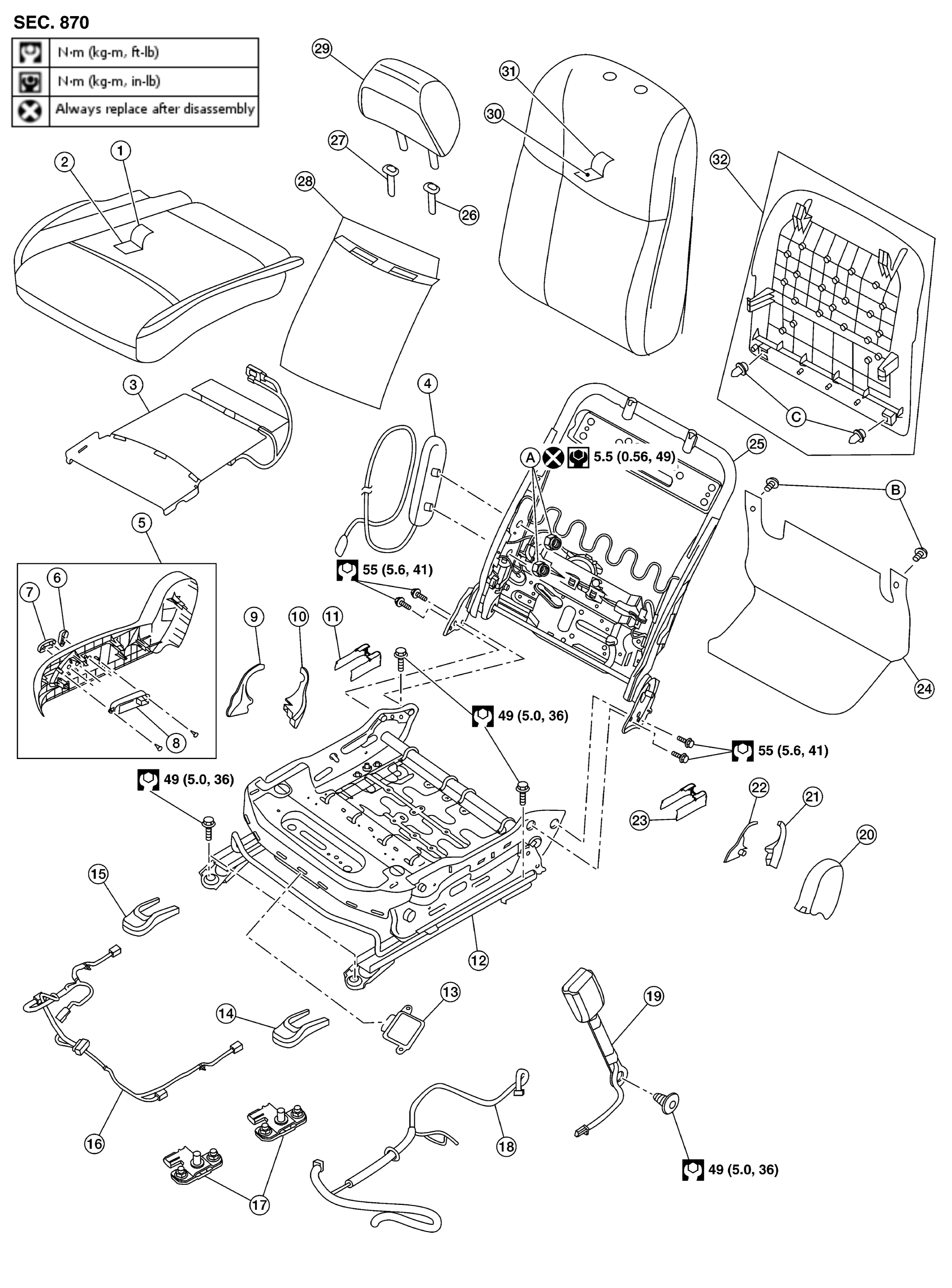

PASSENGER SEAT - MANUAL
| 1. | Seat cushion trim | 2. | Seat cushion pad | 3. | Seat cushion heater (if equipped) |
| 4. | Side air bag module | 5. | Recline lever | 6. | Seat cushion outer finisher (RH) |
| 7. | Seat cushion inner finisher (RH front) | 8. | Seat cushion inner finisher (RH rear) | 9. | Rear slide cover (RH) |
| 10. | Front slide cover (RH) | 11. | Front slide cover (LH) | 12. | Seat cushion frame |
| 13. | Occupant classification control unit | 14. | Occupant classification harness | 15. | Occupant classification sensor |
| 16. | Seat harness | 17. | Seat belt buckle | 18. | Seat cushion inner finisher (LH rear) |
| 19. | Seat cushion inner finisher (LH rear) | 20. | Seat cushion inner finisher (LH front) | 21. | Rear slide cover (LH) |
| 22. | Rear hinge cover | 23. | Seatback frame | 24. | Headrest holder (locked) |
| 25. | Headrest holder (free) | 26. | Seatback heater (if equipped) | 27. | Headrest |
| 28. | Seatback pad | 29. | Seatback trim | 30. | Seatback board |
| A. | Side air bag module nuts | B. | Rear hinge cover clips | C. | Seatback board clips |

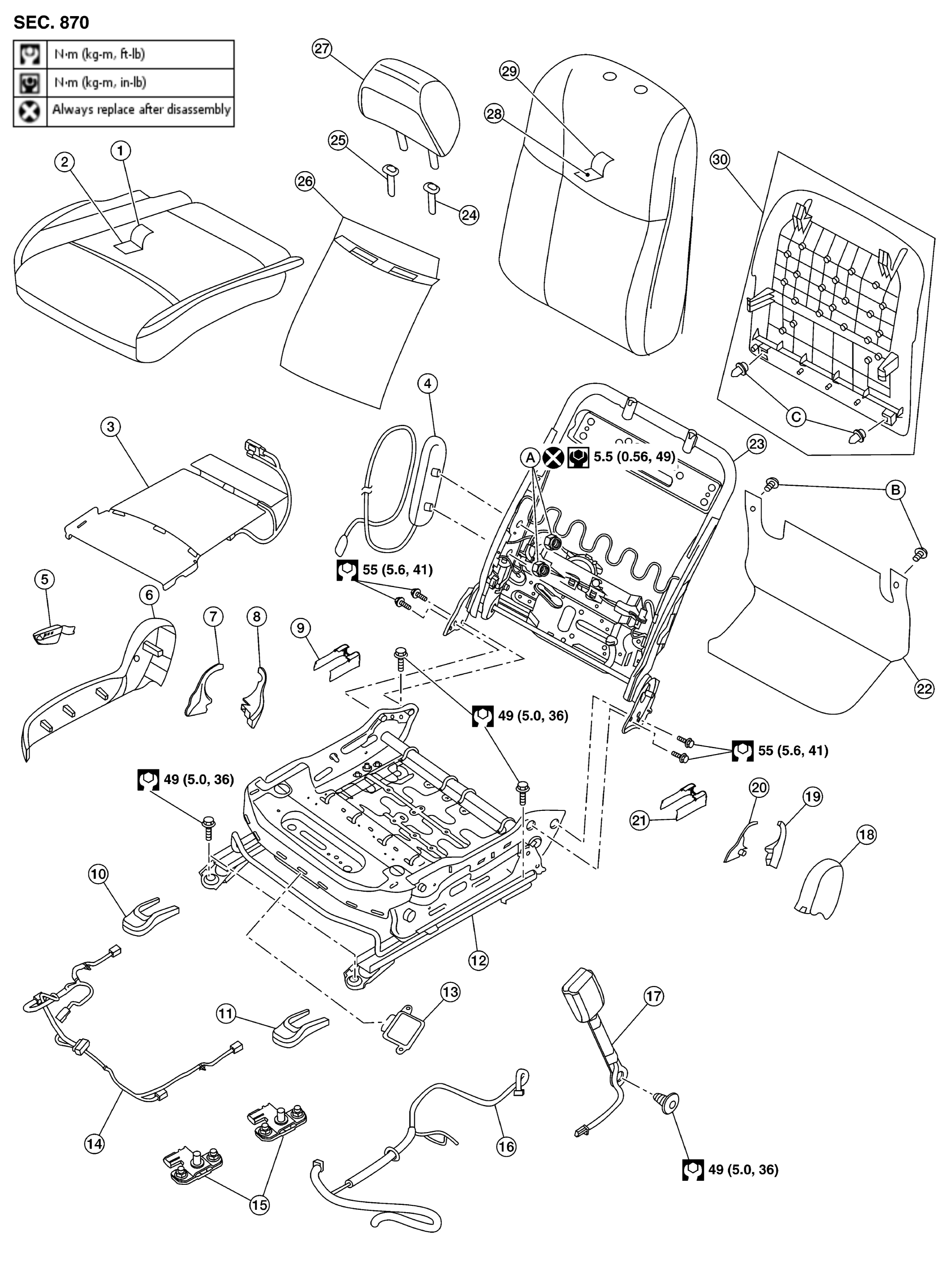

PASSENGER SEAT - POWER
| 1. | Seat cushion trim | 2. | Seat cushion pad | 3. | Seat cushion heater (if equipped) |
| 4. | Side air bag module | 5. | Seat cushion outer finisher (RH) | 6. | Seat recline knob |
| 7. | Seat slide knob | 8. | Power seat switch | 9. | Seat cushion inner finisher (RH front) |
| 10. | Seat cushion inner finisher (RH rear) | 11. | Rear slide cover (RH) | 12. | Seat cushion frame |
| 13. | Occupant classification control unit | 14. | Rear slide cover (RH) | 15. | Front slide cover (RH) |
| 16. | Occupant classification harness | 17. | Occupant classification sensors | 18. | Seat harness |
| 19. | Seat belt buckle | 20. | Seat cushion outer finisher (LH) | 21. | Seat cushion inner finisher (LH rear) |
| 22. | Seat cushion inner finisher (LH front) | 23. | Rear slide cover (LH) | 24. | Rear hinge cover |
| 25. | Seatback frame | 26. | Headrest holder (locked) | 27. | Headrest holder (free) |
| 28. | Seatback heater | 29. | Headrest | 30. | Seatback pad |
| 31. | Seatback trim | 32. | Seatback board | A. | Side air bag module nuts |
| B. | Rear hinge cover clips | C. | Seatback board clips |
