Connector End Views

WARNING: This page is about a different car, the 2014 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

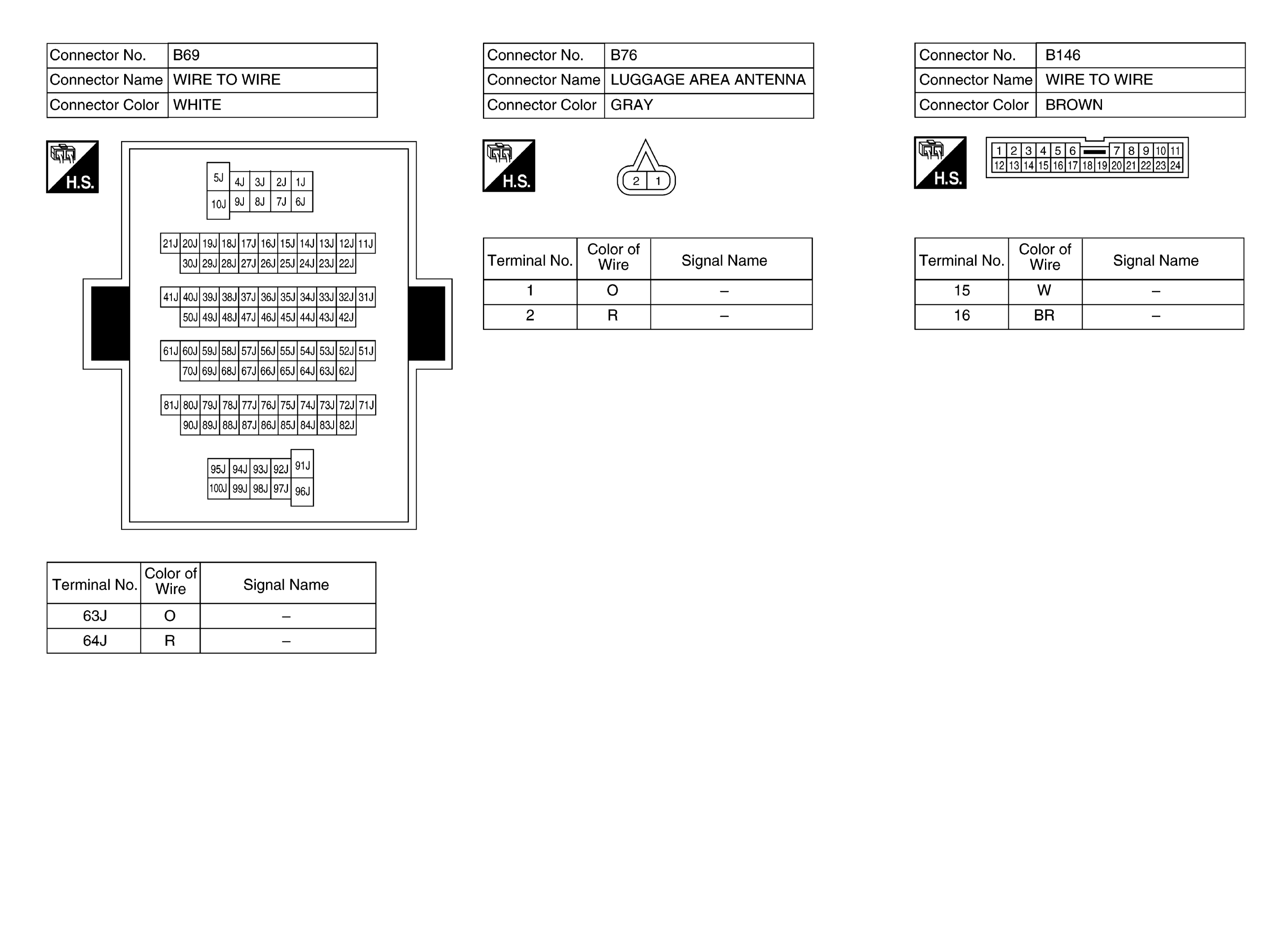

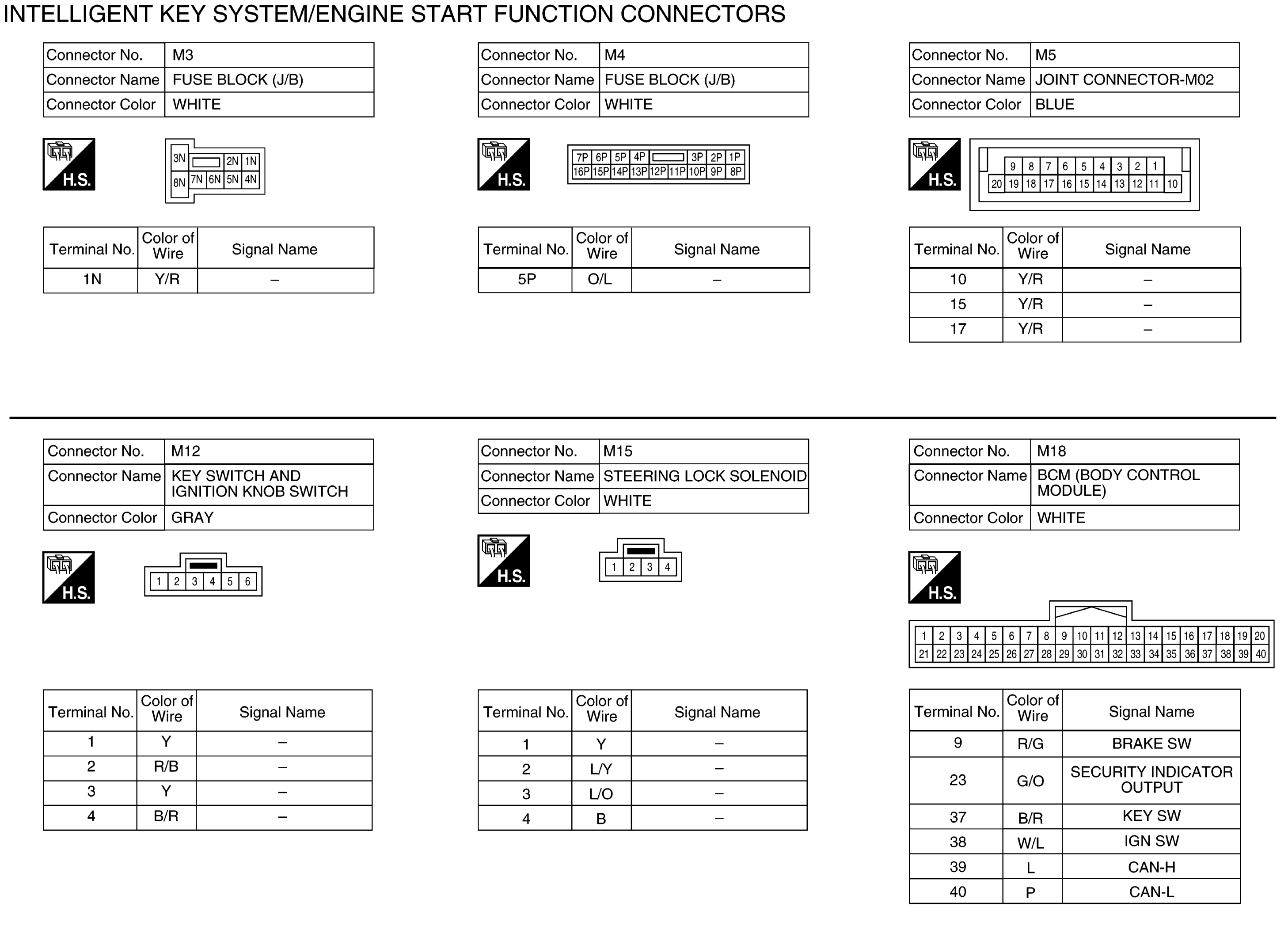

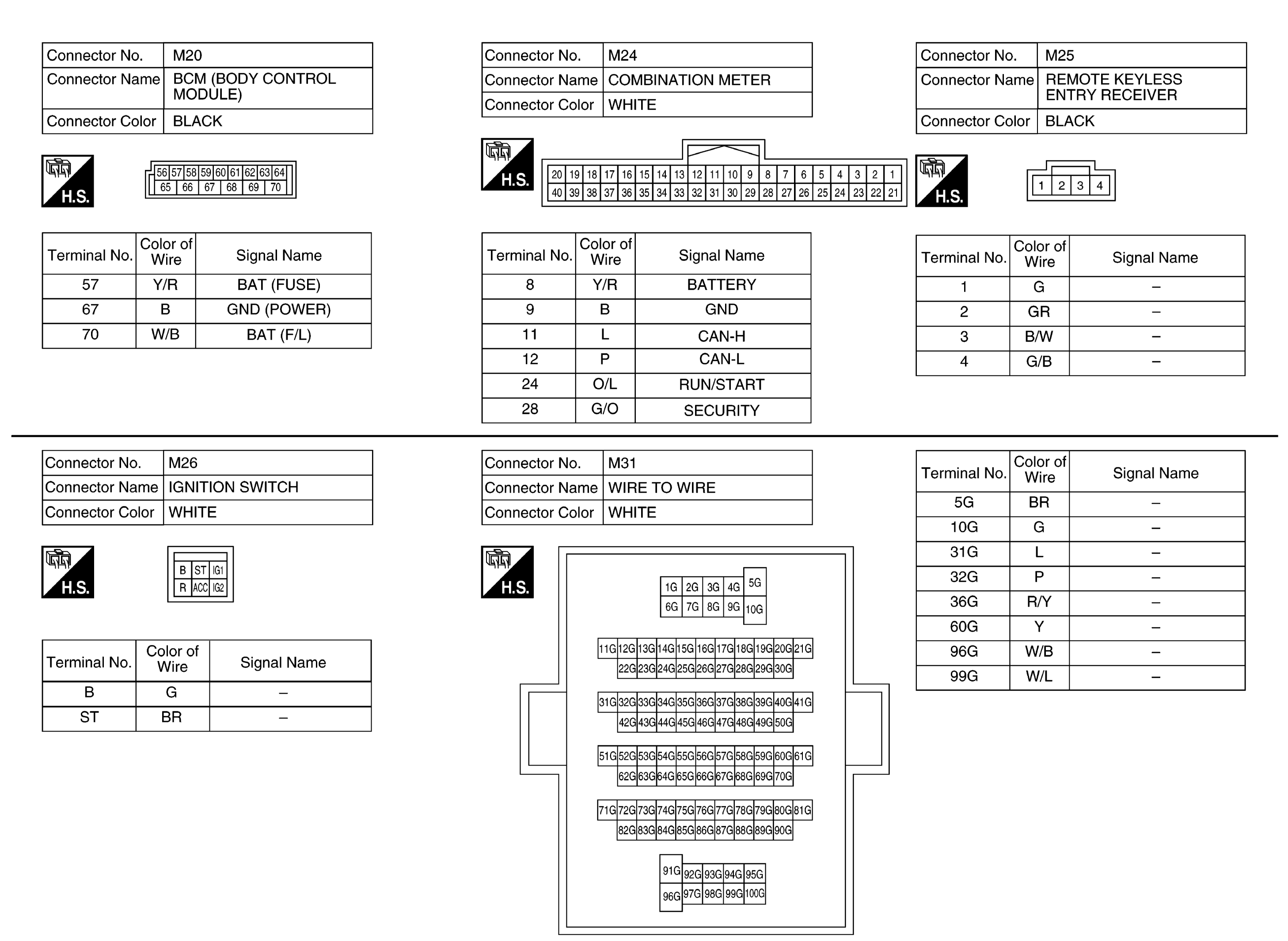

Fig 1: Intelligent Key System/Engine Start Function Connector End Views (1 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

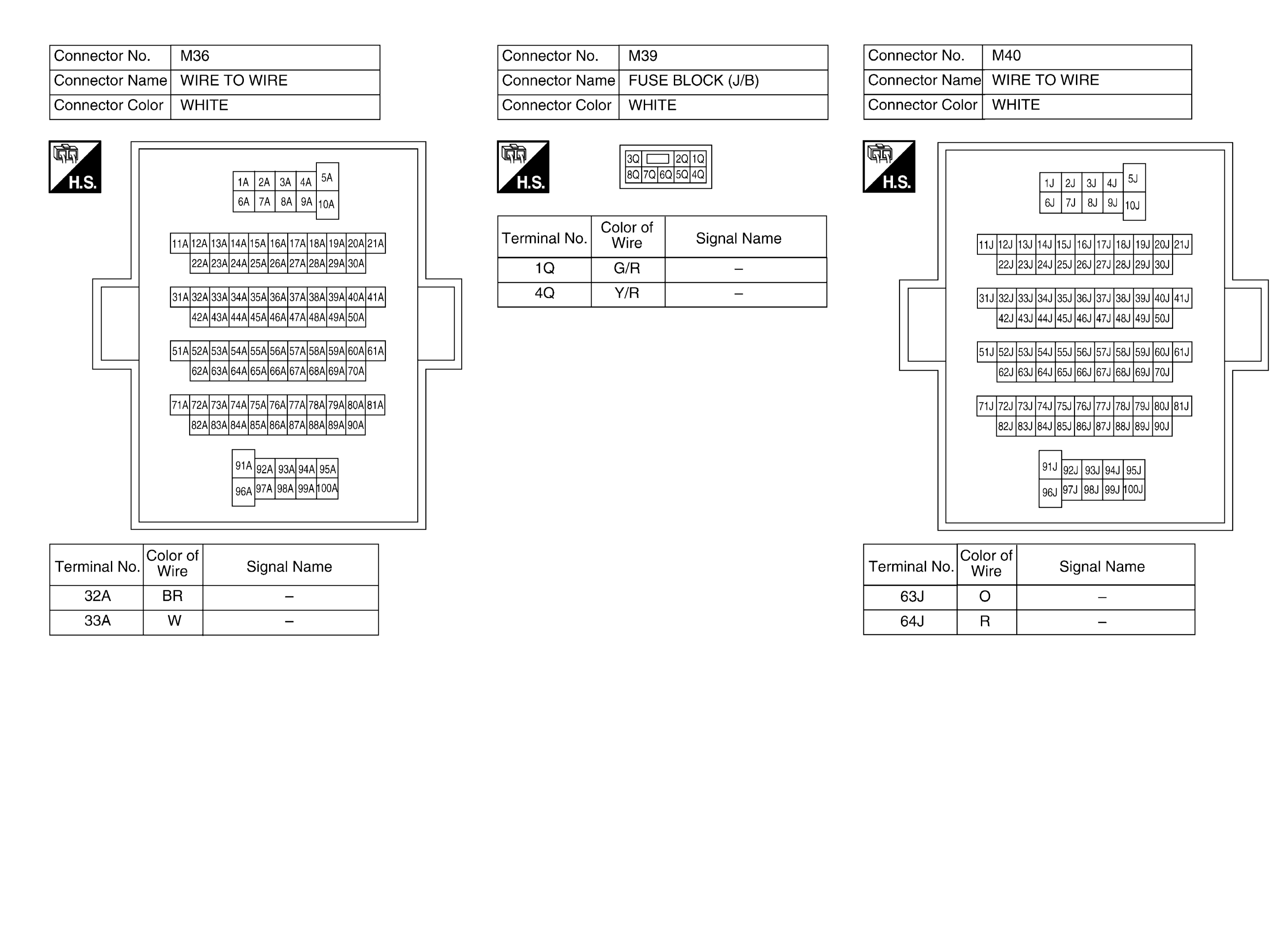

Fig 2: Intelligent Key System/Engine Start Function Connector End Views (2 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

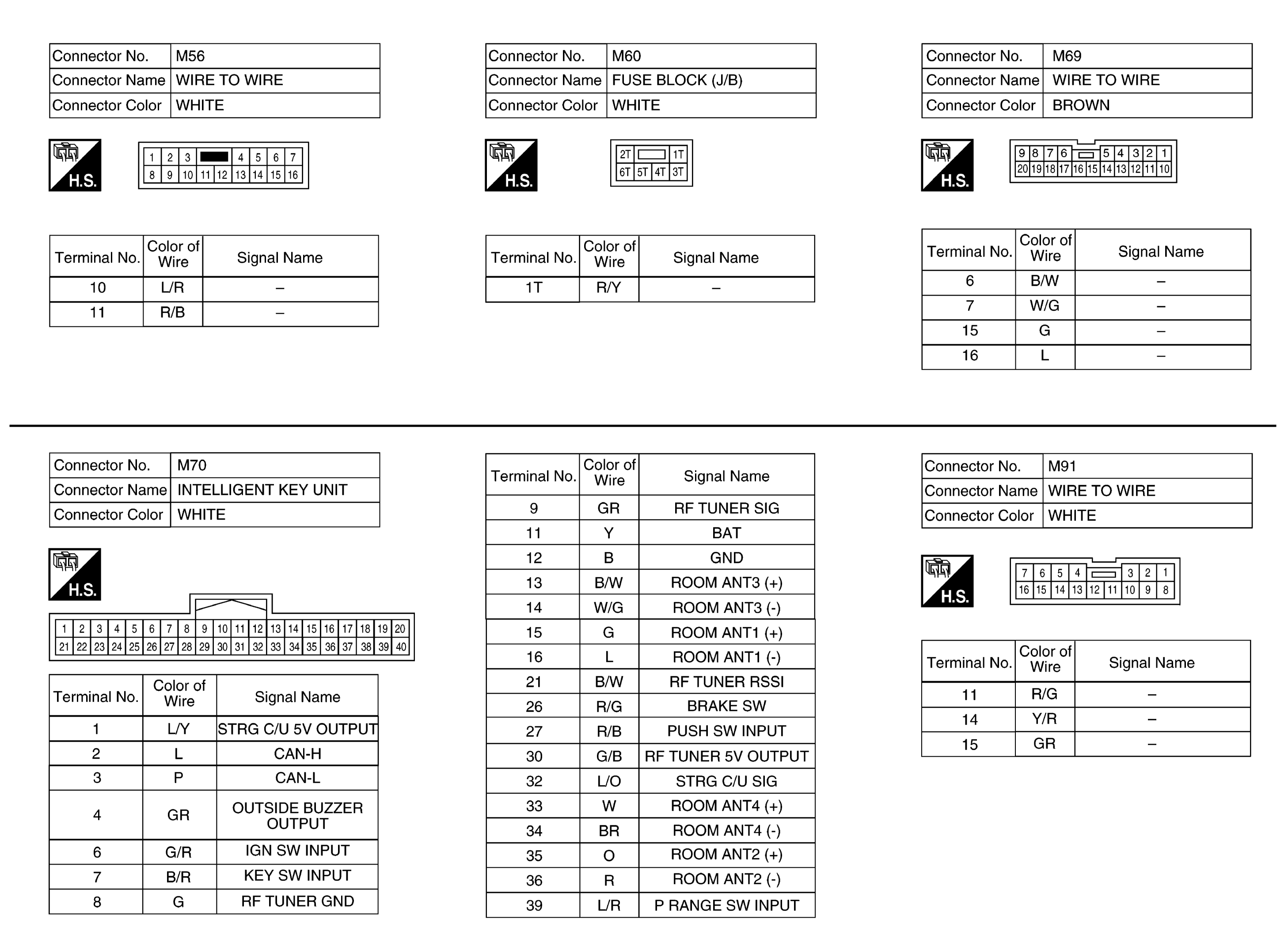

Fig 3: Intelligent Key System/Engine Start Function Connector End Views (3 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

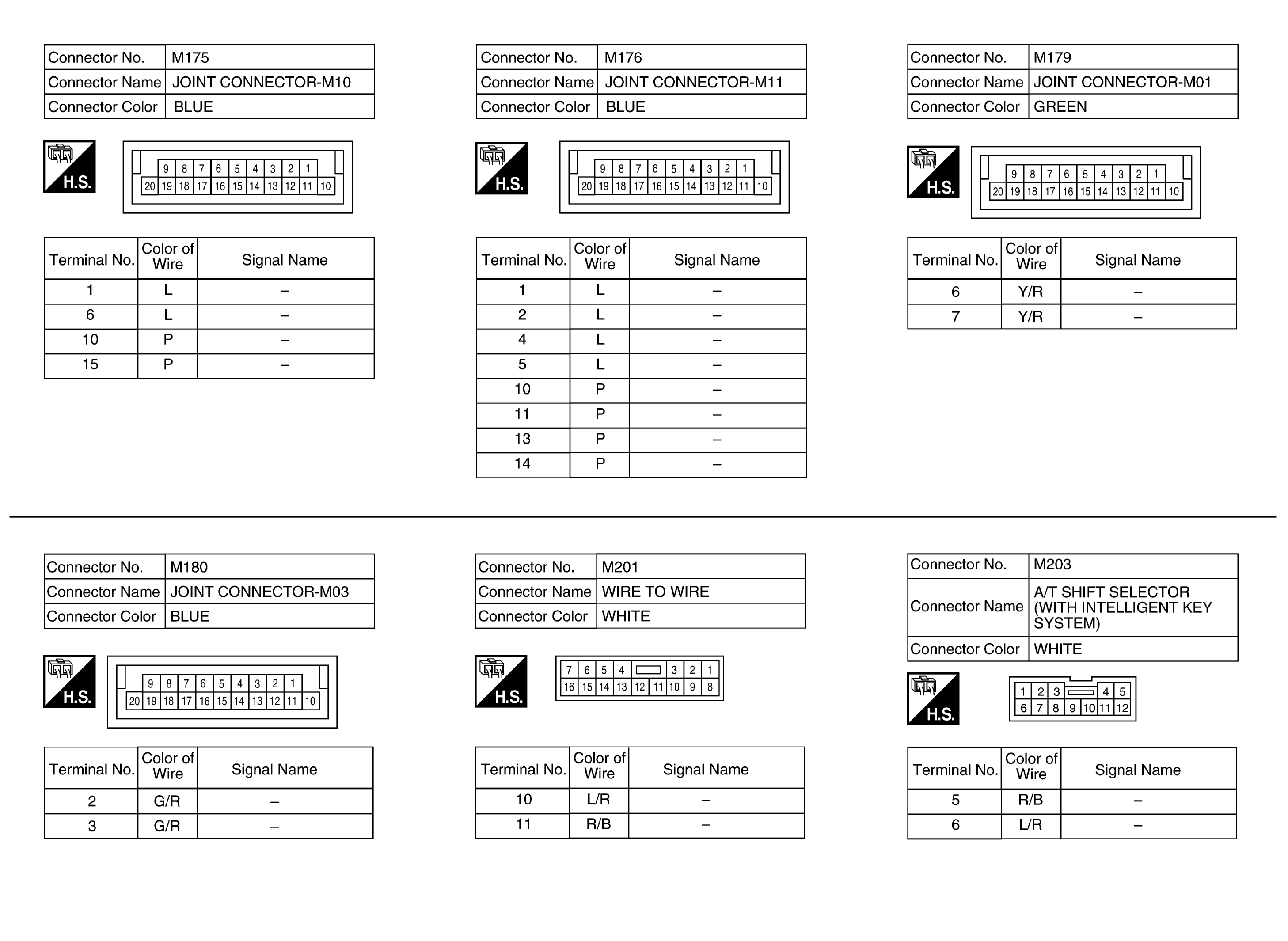

Fig 4: Intelligent Key System/Engine Start Function Connector End Views (4 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

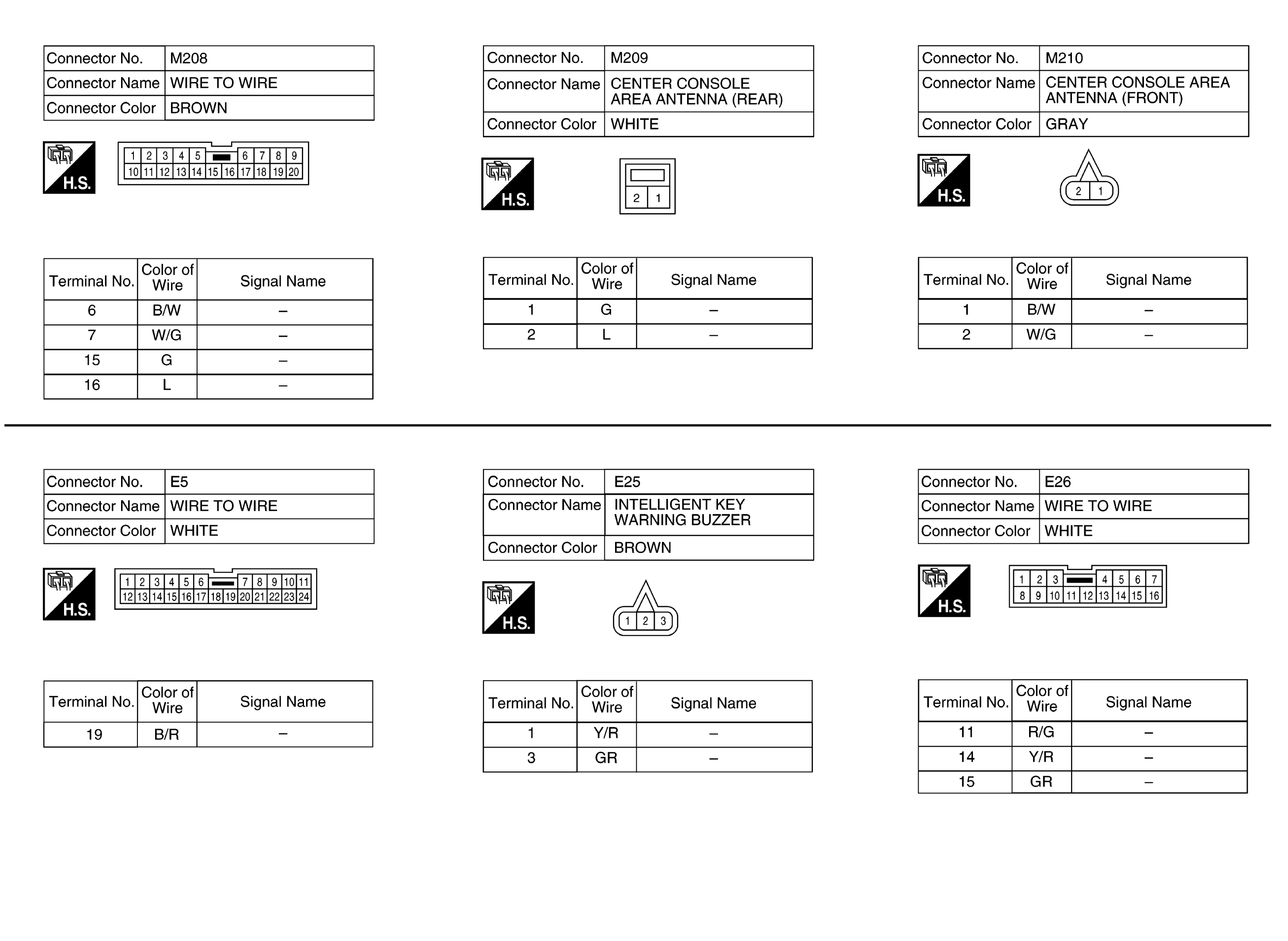

Fig 5: Intelligent Key System/Engine Start Function Connector End Views (5 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

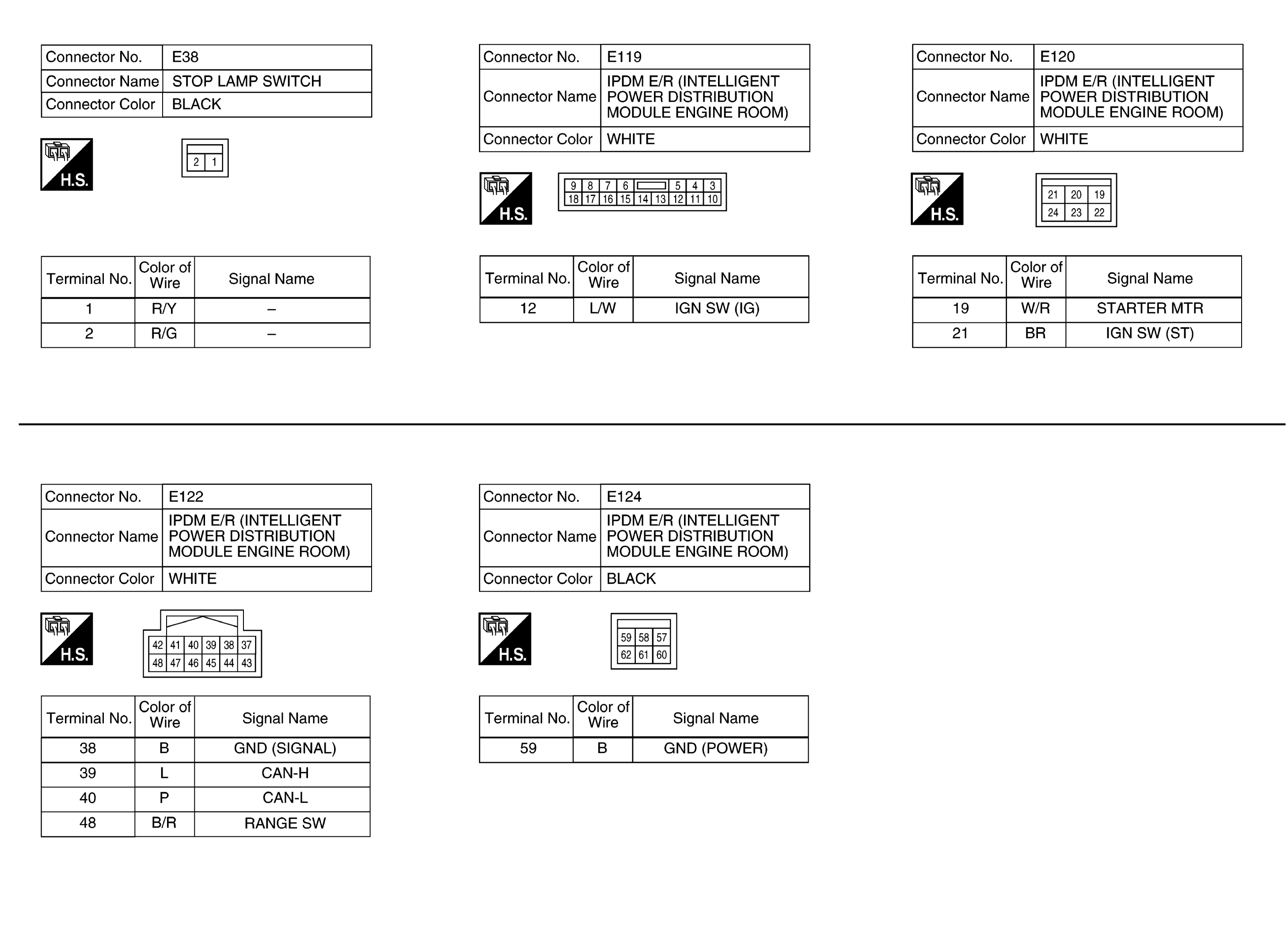

Fig 6: Intelligent Key System/Engine Start Function Connector End Views (6 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

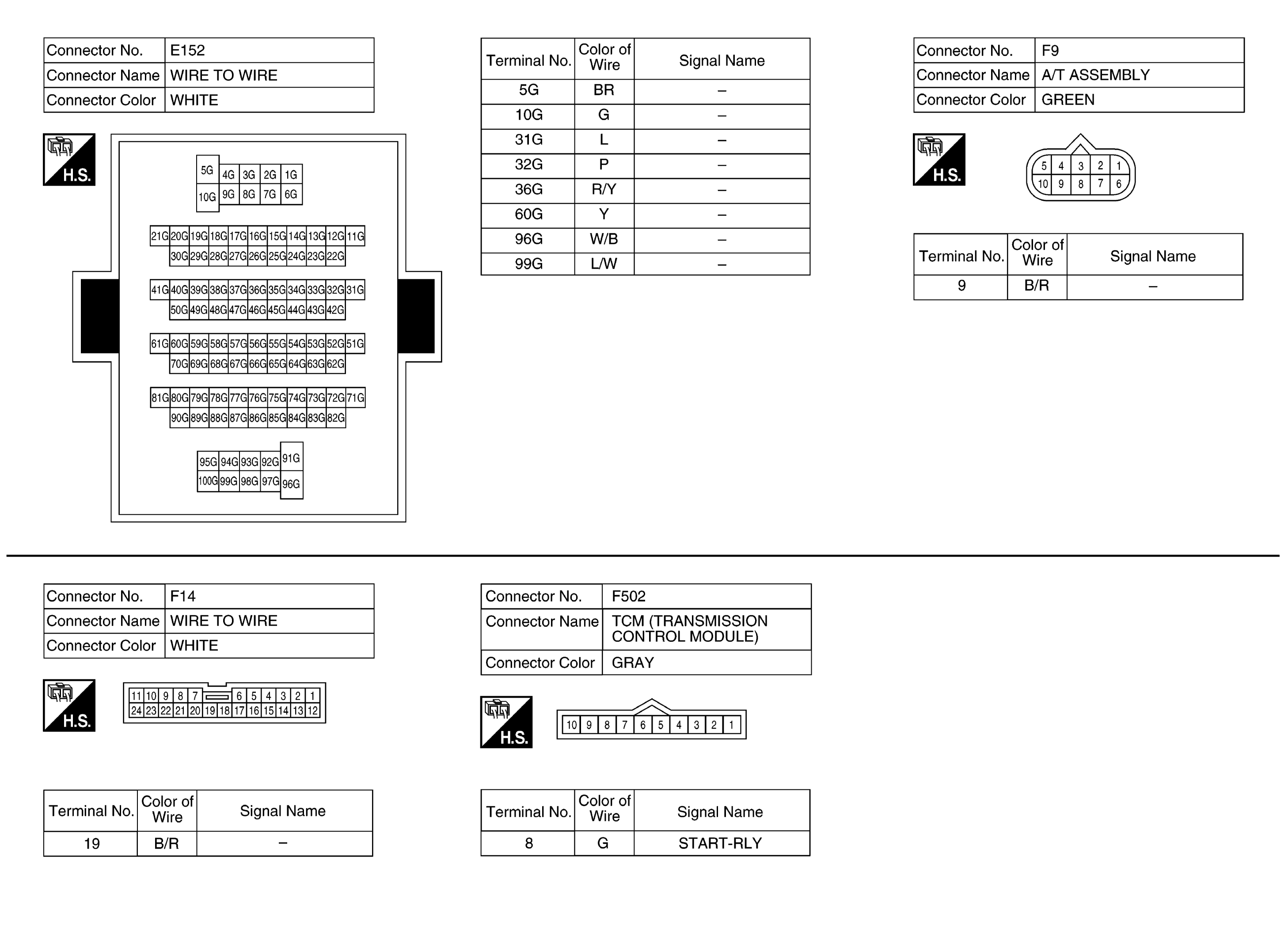

Fig 7: Intelligent Key System/Engine Start Function Connector End Views (7 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Intelligent Key System/Engine Start Function Connector End Views (8 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

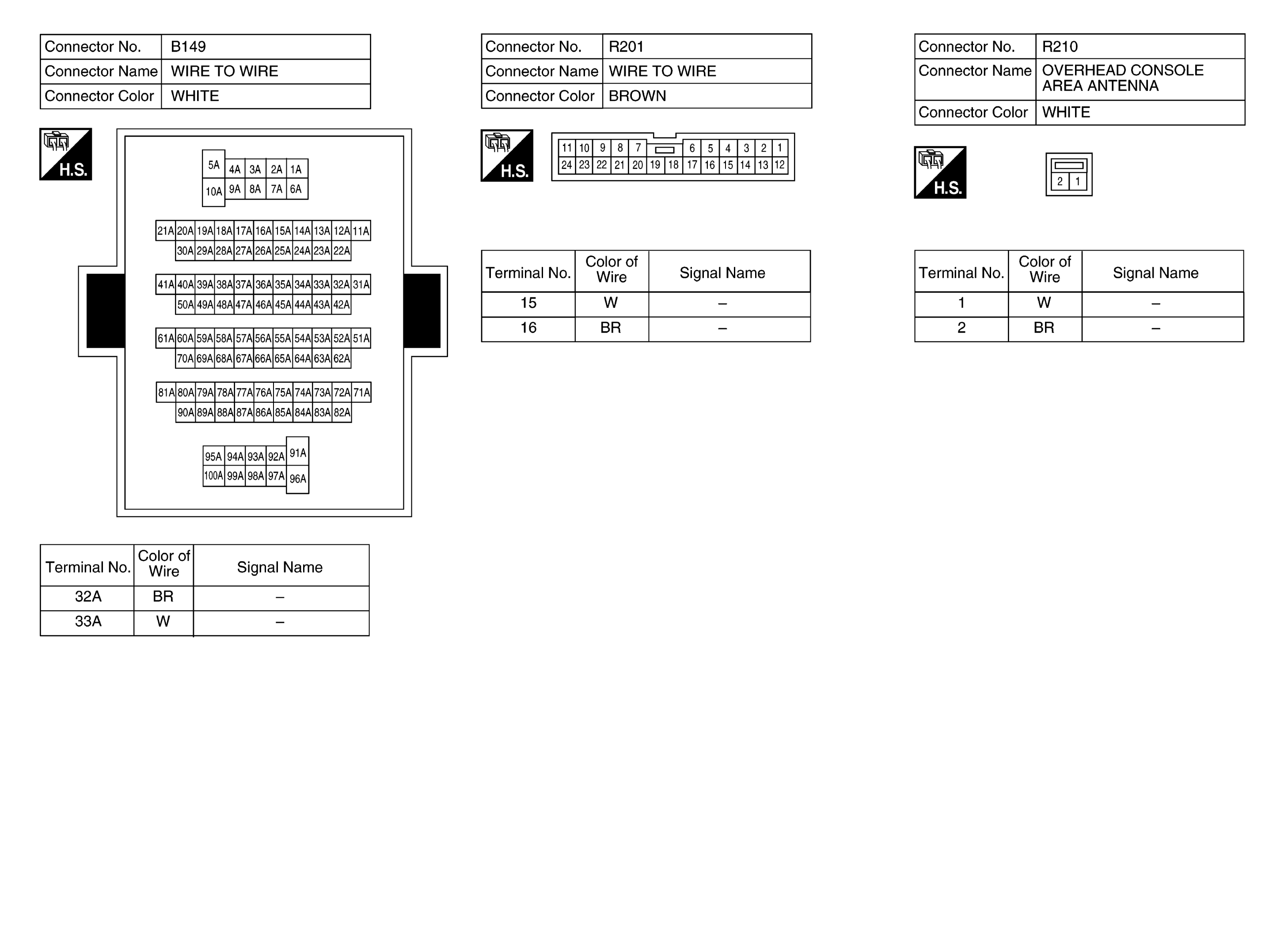

Fig 9: Intelligent Key System/Engine Start Function Connector End Views (9 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intelligent Key System/Engine Start Function Connector End Views (10 Of 10)

Courtesy of NISSAN NORTH AMERICA, INC.
