Exploded View With Torque Specifications

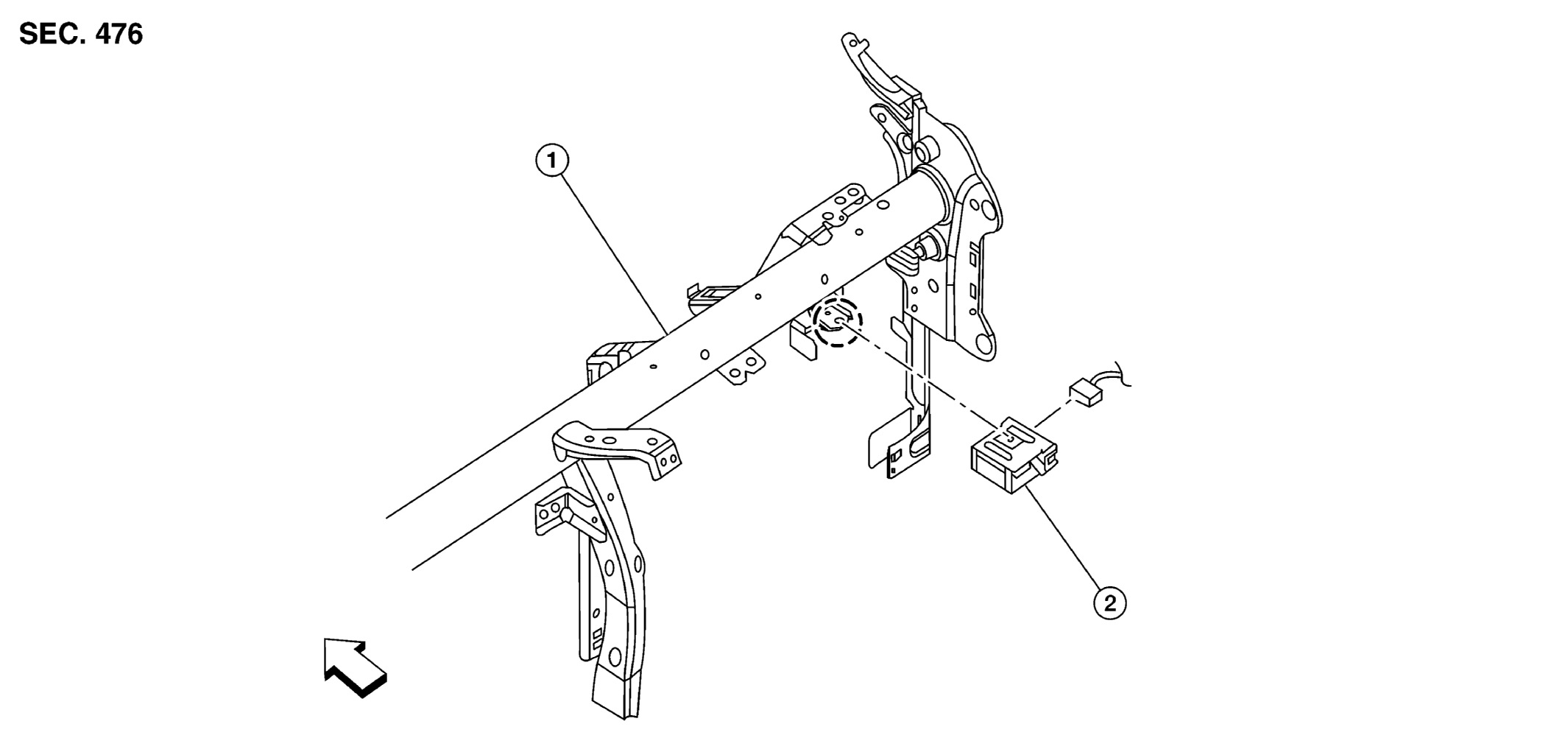

Fig 1: Exploded View Of Chassis Control Module
GNSAWOIA0074ZZ-074Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering member 2. Chassis control module ARROW Front
