Exploded View With Torque Specifications

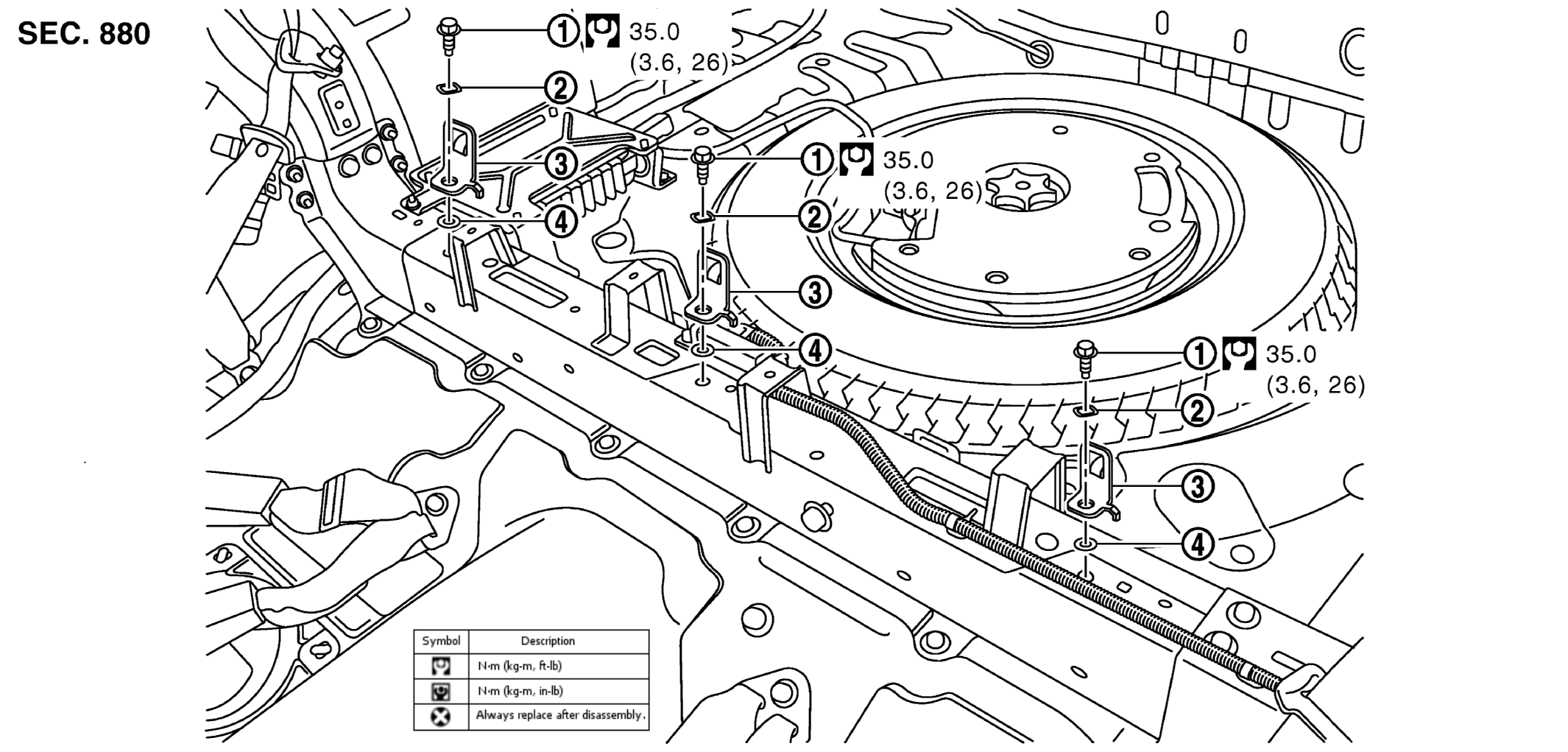

Fig 1: Top Tether Strap Child Restraint With Torque Specifications
GNSJMHIA0464GB-464Courtesy of NISSAN NORTH AMERICA, INC.
1. Anchor bolt 2. Wave washer 3. Anchor plate
4. Fiber washer
BOLT : N•m (kg - m, ft - lb)
