Exploded View With Torque Specifications

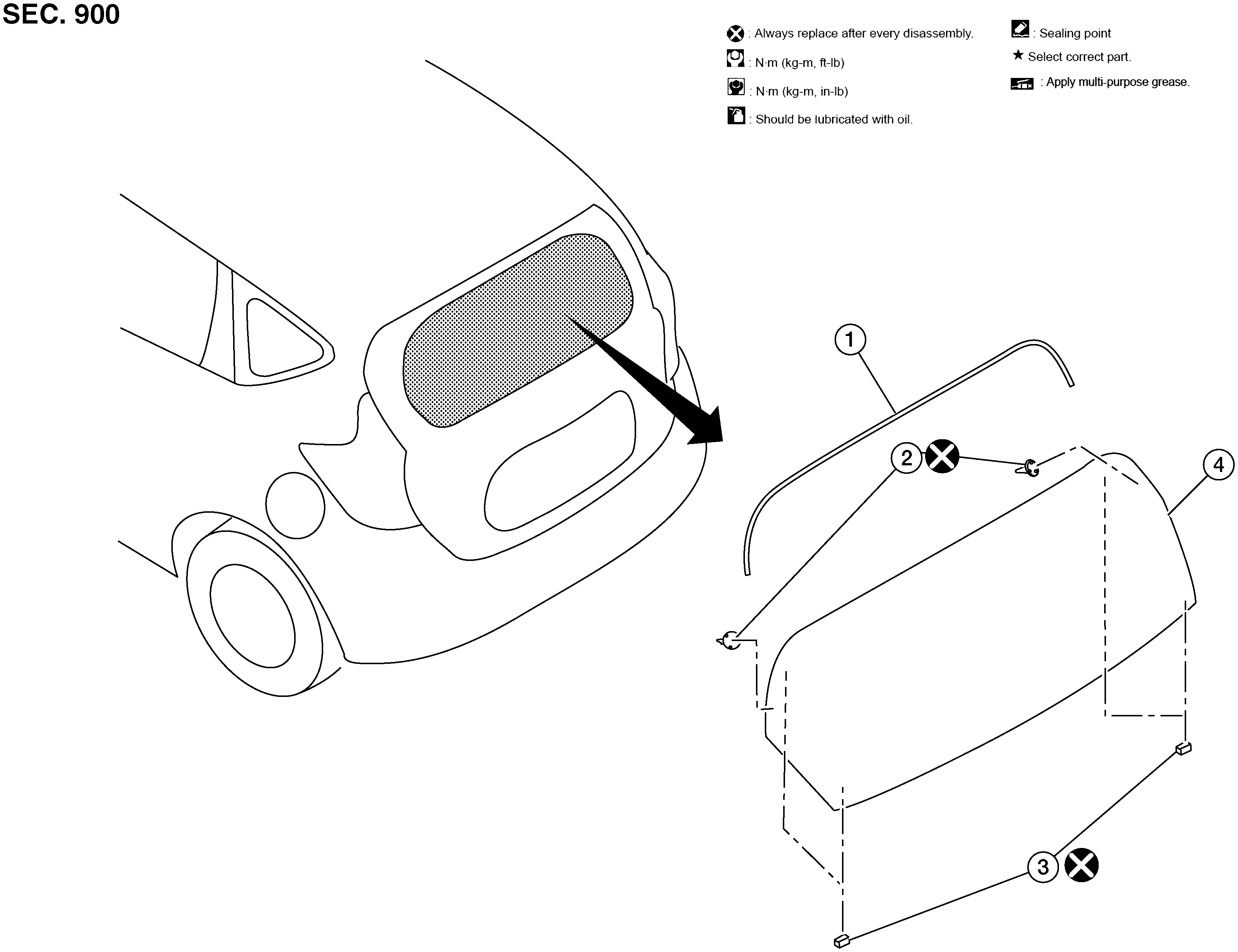

Fig 1: Exploded View Of Back Door Window Glass
GNSAWKIA2559ZZ-559Courtesy of NISSAN NORTH AMERICA, INC.
1. Back door window glass weatherstrip 2. Back door window glass locator 3. Back door window glass spacer
4. Back door window glass
