Exploded View With Torque Specifications

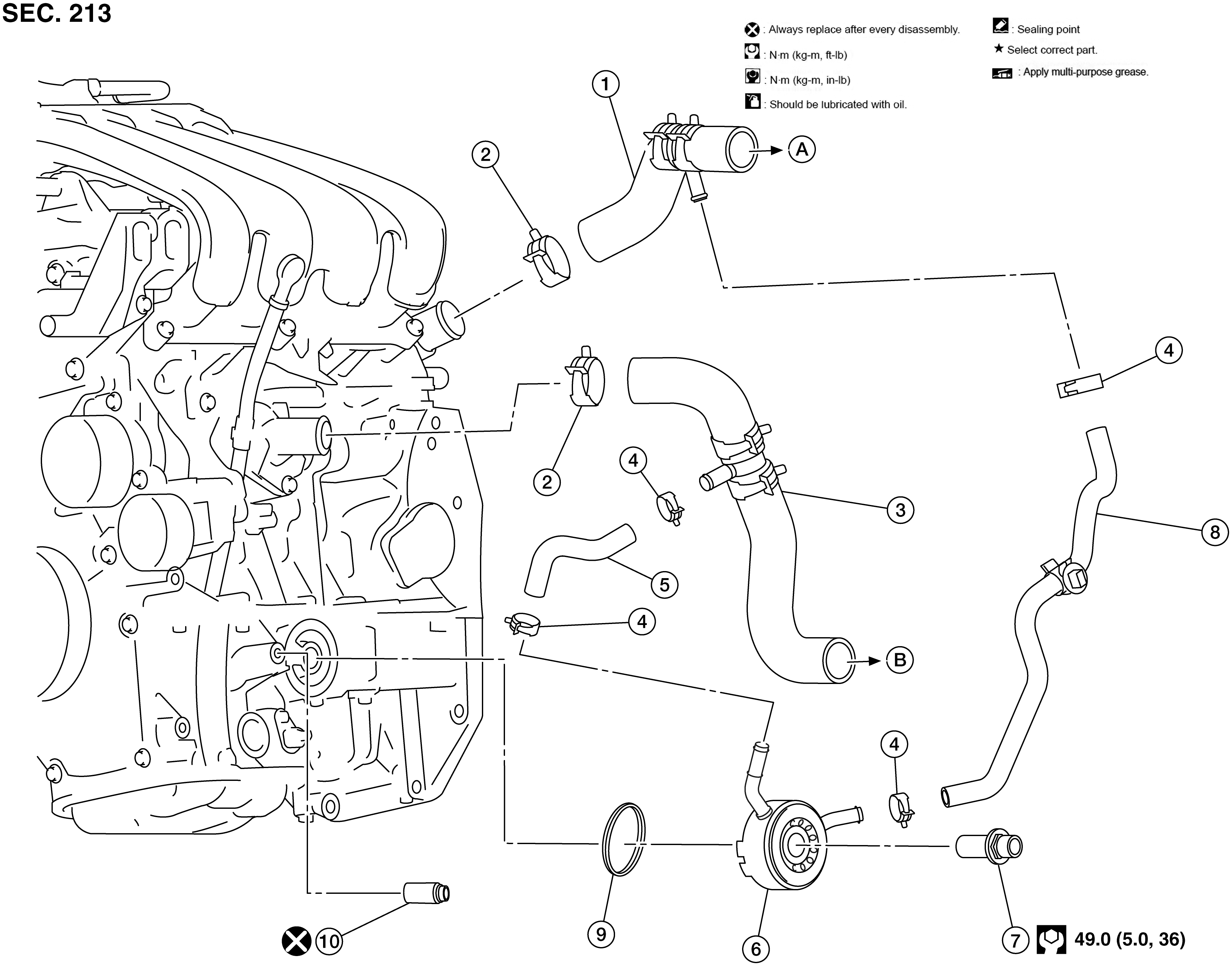

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
GNSAWBIA1138GB-138Courtesy of NISSAN NORTH AMERICA, INC.
1. Radiator hose (upper) 2. Hose clamp 3. Radiator hose (lower)
4. Hose clamp 5. Water hose 6. Oil cooler
7. Connector bolt 8. Water hose 9. O-ring
A. To radiator (upper side) B. To radiator (lower side) 10. Relief valve
