Front Window Anti-Pinch System

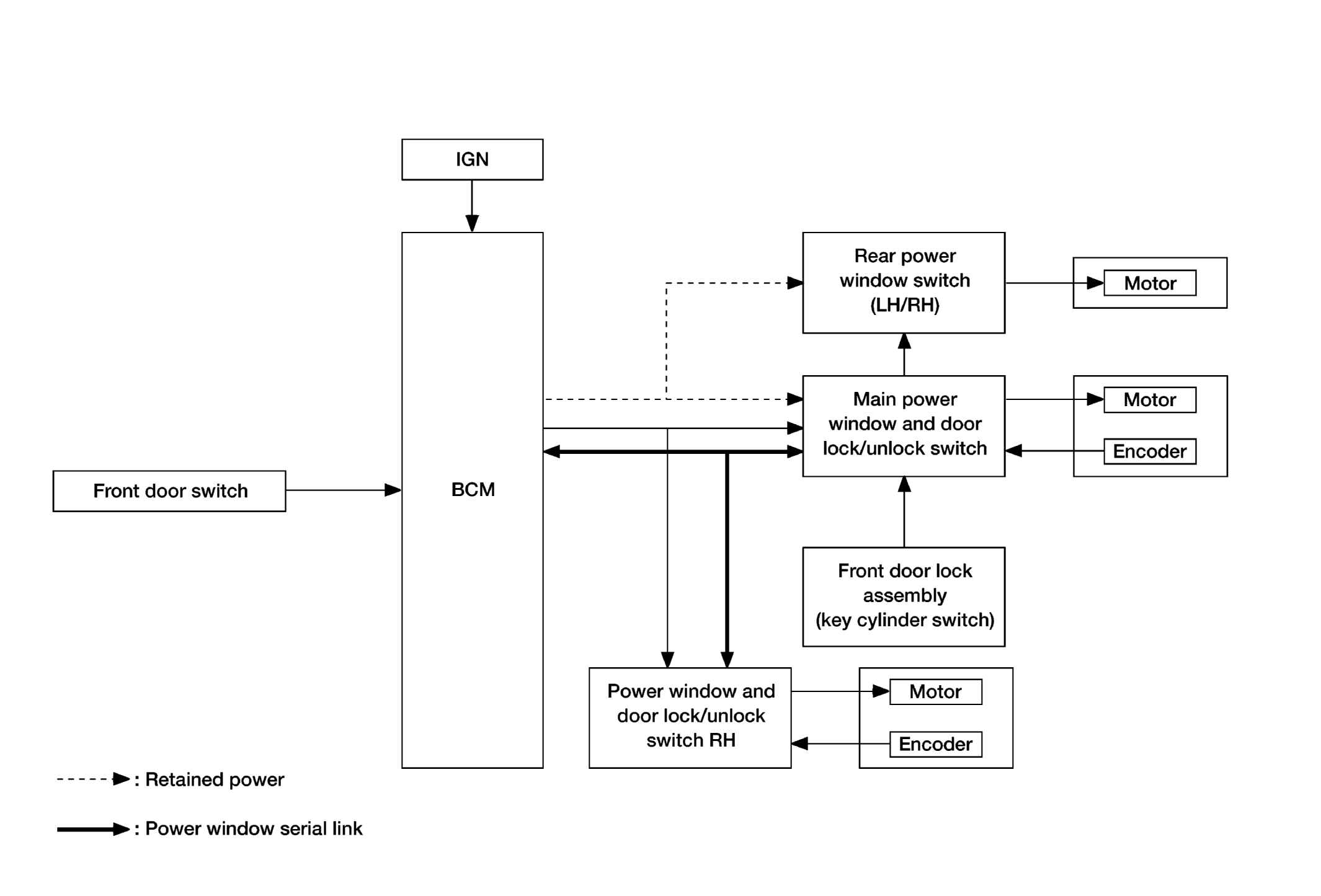

Fig 1: Power Window System Diagram (Front Window Anti-Pinch System)
G07000944Courtesy of NISSAN NORTH AMERICA, INC.
