Exploded View - Rear Wheel Sensor

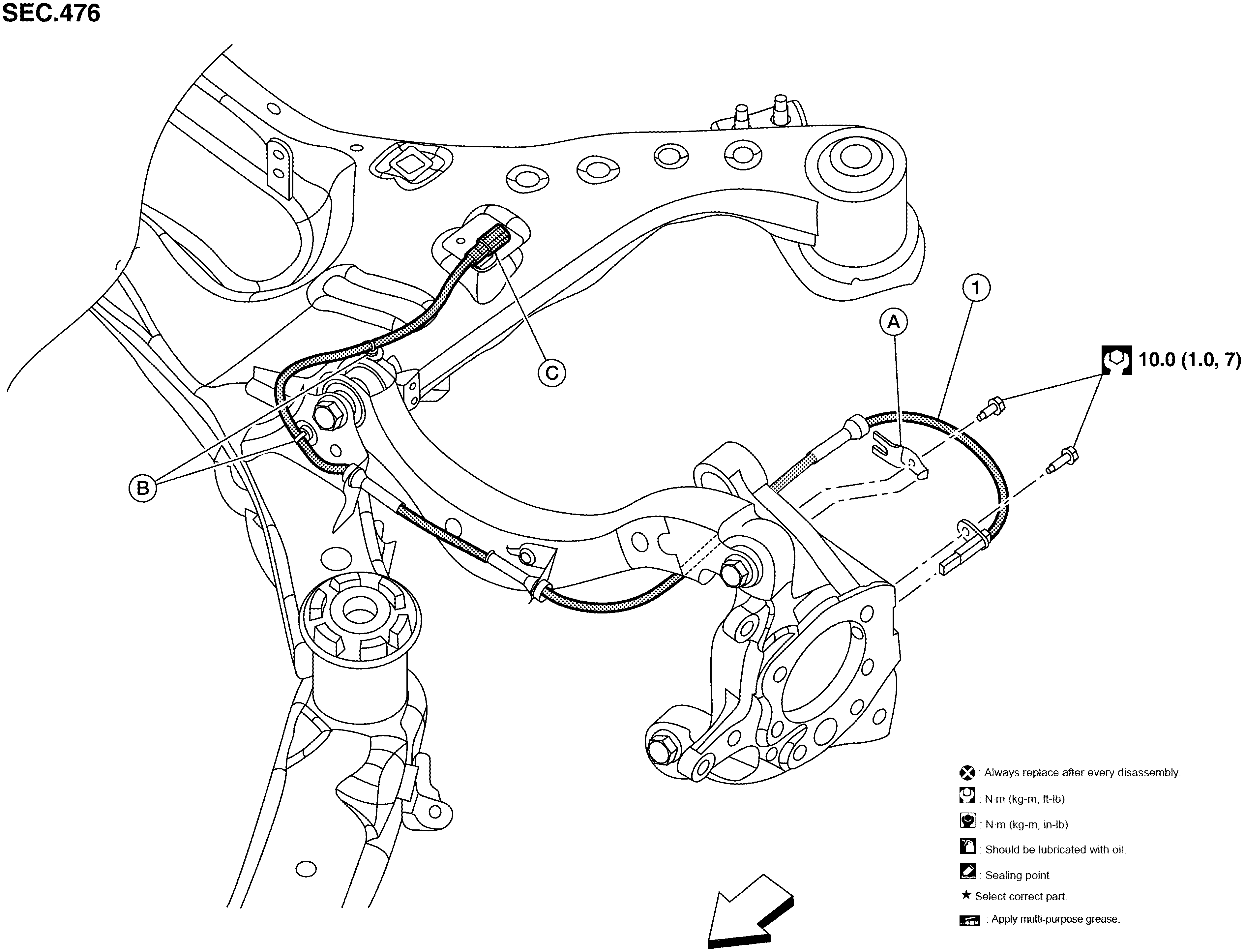

Fig 1: Rear Wheel Sensor With Torque Specifications
GNSAWFIA0927ZZ-927Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear wheel sensor A. Rear wheel sensor bracket B. Clip
C. Rear wheel sensor harness connector ARROW Front
